Electro Harmonix Oceans Abyss Reverb

Electro Harmonix Oceans Abyss Reverb: Hands-On Technical Review

The Electro Harmonix Oceans Abyss Reverb pedal aims to be an all-in-one platform for reverb and modulation, with a versatile stereo signal path and deep integration potential. Marketed as an advanced dual-engine stereo reverb, it arrives in a well-built metallic enclosure finished in metallic bottle green, giving it a premium feel. Here's how it performs after real-world testing.

Build and Physical Layout

The enclosure measures 181 by 146 by 57 millimeters and weighs just over one kilogram. Compact in footprint compared to rack units, it's still fairly tall and requires some space on a pedalboard due to its array of controls and connectivity. The housing feels robust and not too heavy, striking a good balance particularly for complex multi-effect units.

Controls, Interface, and Ergonomics

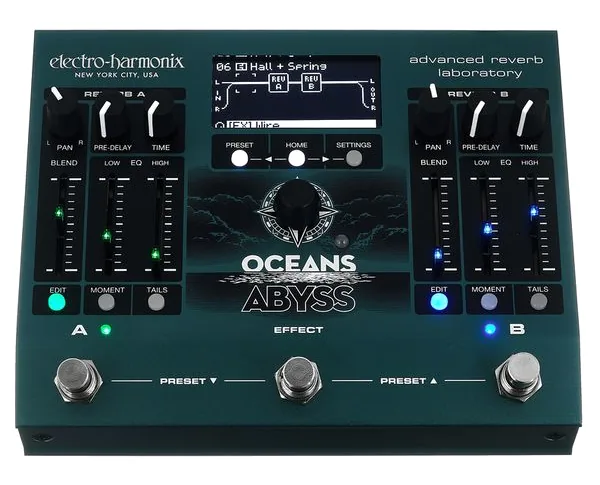

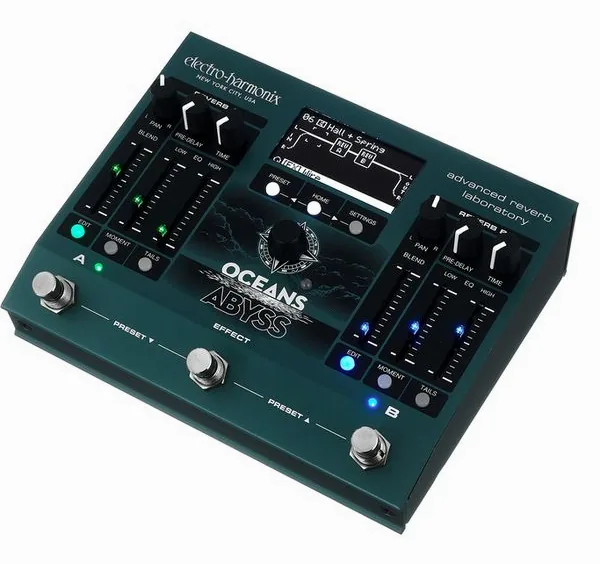

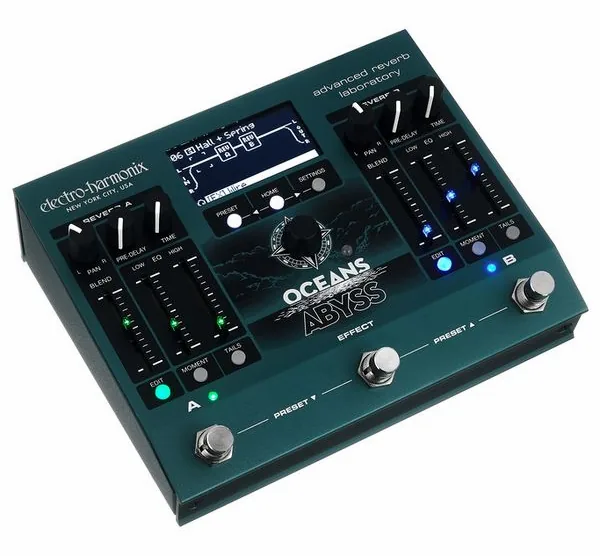

At the top, the interface is split into two identical reverb engines, labeled A and B, each with dedicated rotary encoders for pan, pre-delay, decay time, wet/dry blend, low and high EQ adjustments. Three dedicated push buttons per engine (Edit, Moment, Tails) enable quick access to deep effect parameters, infinite reverb triggering, or tail spillover. Global buttons handle preset, home function, and overall settings.

A central rotary encoder acts as a joystick for fast menu navigation, parameter tweaking, and effect selection. Some users found it tactile with a defined click, though the manual states rotation for extended operations (like delay timing) can become tedious. The onboard display is clear, and navigating deeper menus is intuitive. Physical build of the encoders drew mixed impressions: some reviewers noted wobbly stems and misaligned caps, occasionally resulting in scratchy movement on filters. However, these seem to vary between units and can sometimes be corrected or mitigated with firm reseating or using pedalboard adhesive for stability.

Connection and Integration

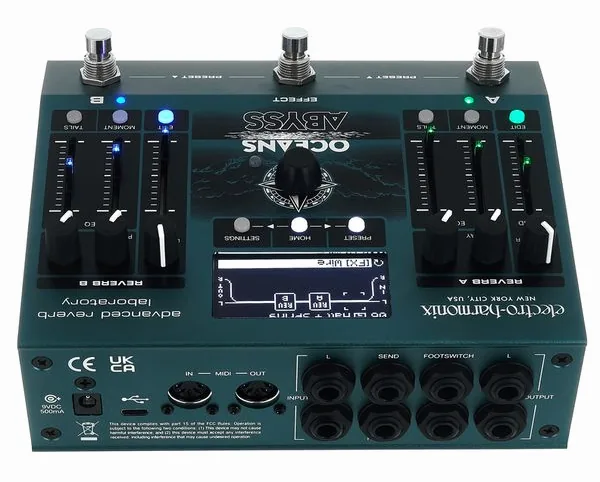

The Oceans Abyss brings extensive connectivity. Dual quarter-inch (6.3 mm) stereo input and output jacks provide true stereo operation. There are also send/return effects loops on each side for flexible serial or parallel routing. MIDI input and output are included via standard five-pin DIN connectors, unlocking automation, preset management, and control changes from external hardware or DAWs.

USB-C supports firmware updates and preset management (pending the release of the EHXport app, expected to simplify backup/restore, ordering of presets, and online editing). The pedal also features an expression pedal input and external footswitch jack, both using stereo connectors.

The unit draws 500 mA, powered by the included 9.6-volt DC supply (center negative), and does not operate on batteries. This is consistent with most digital pedals requiring multiple processors and advanced signal conversion.

Sound and Effects Suite

At its core, Oceans Abyss hosts dual fully independent reverb engines, with up to eight effects assigned simultaneously in any order, each reverb slot can also be paired with modulation or delay. Factory algorithms cover a broad spectrum: room, hall, spring, plate, reverse, dynamic, auto-infinite, shimmer, polyphonic, plus bonus effects like delay, flanger, chorus, tremolo, and phaser.

Users report that every effect block is easily tweaked with dedicated analog controls: dialing in space, pre-delay, and equalization quickly adapts the effect to source material. The pedal excels at creating rich stereo fields and ambient layers, and with presets mapped to each reverb engine, dramatic chains can be programmed for live switching or performance.

Audio quality is clean and comparatively noise-free, offering more output headroom than older competitors. In A/B tests, reviewers found it more programmable and marginally louder than competitors such as the Big Sky or Empress Reverb.

However, several reviewers noted that with so many effects on board, up to eight at a time, some algorithms feel more general-purpose, offering "bread and butter" versions rather than the most distinctive takes on each reverb or modulation style. For stage and studio use, this lends flexibility but may leave those hunting the ultimate spring simulation or lush plate occasionally wanting.

Presets, Software, and MIDI

Preset and MIDI integration elevate the Oceans Abyss above typical do-it-all boxes. With three global buttons, banks are called up instantly, and each engine can store its own settings for quick recall. Awaiting the EHXport software, some users had usability hiccups with preset management on Mac, though updates worked after some troubleshooting on Windows. Once setup is complete, MIDI automation offers true deep integration with modern rigs.

Practical Considerations and Limitations

• Size and weight: Not huge, but tall and dense, best suited to committed setups.
• Power: Dedicated supply included, no battery option.
• Build: While solid, attention to pot mounting and knob caps could be improved for future revisions.
• Tactile operation: Main joystick can be stiff to turn indefinitely for some parameters.
• Software: EHXport app awaited for full preset and editing integration.

Conclusion

The Electro Harmonix Oceans Abyss Reverb is a feature-rich dual-engine reverb and multi-effect, ideal for users seeking advanced effect chains and deep routing in a single pedal. Connectivity, sound quality, and MIDI flexibility make it appealing for complex rigs. Minor build inconsistencies and a pending software release bring some caveats, but overall, it stands out as a powerful tool for ambient, experimental, and stage musicians demanding sophisticated control.
