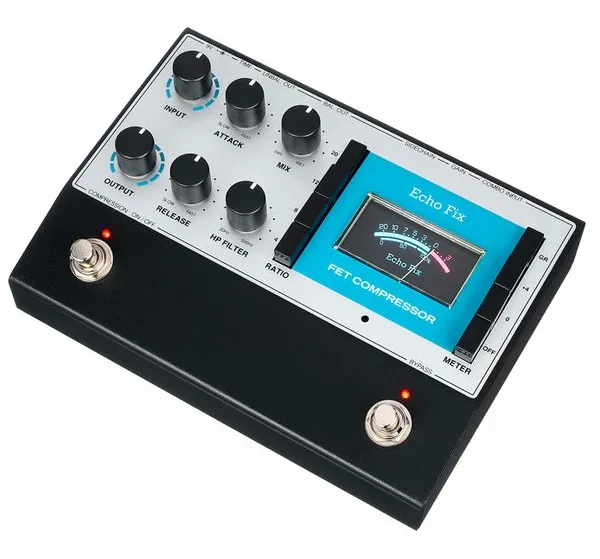

Echo Fix EF-P5 FET Compressor Pedal

Overview: Analog Studio Compression in a Pedal Format

The Echo Fix EF-P5 FET Compressor Pedal stands out for offering analog compressor circuitry tailored for both stage and studio application. Designed for flexibility, it provides all core compressor controls along with versatile connectivity options, positioning itself above conventional pedalboard compressors in terms of customization and routing possibilities. At a price point of 544, the EF-P5 is clearly aimed at users who demand more than simple on/off compression in compact form. Let's break down the technical features and layout in detail.

Comprehensive Control Layout

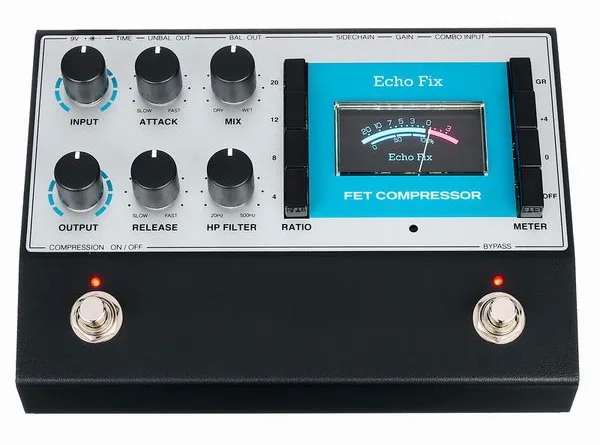

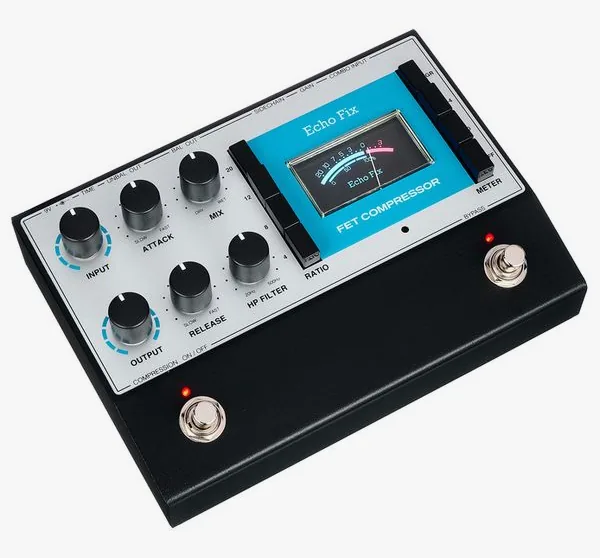

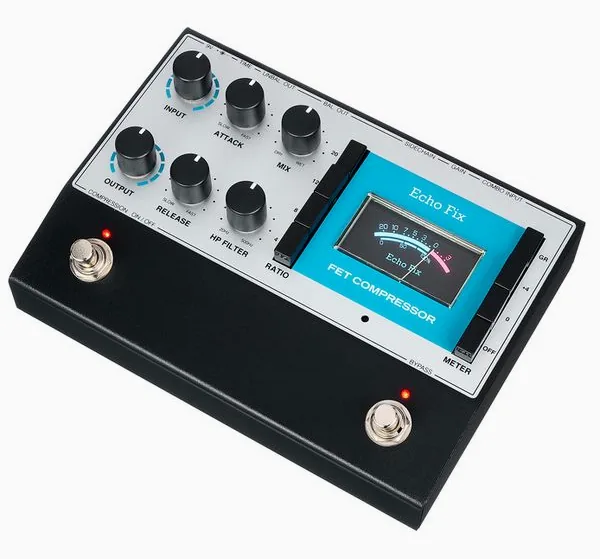

The EF-P5 integrates a detailed control set rarely found on standard stompbox-size compressor pedals. The layout includes:

• Input and Output controls: Enable precise setting of gain staging into and out of the compression circuit.
• Attack and Release: Allow for shaping the compressor's response to signal dynamics, from aggressive transient clamping to more relaxed, musical behavior. This is a key feature for tailoring compression to individual instruments or vocals.
• Mix control: Supports parallel compression directly on the pedal, blending unprocessed and compressed signals for more subtle or punchy effects.
• High-Pass Filter: This filter can be applied to the detector circuit to reduce low-frequency pumping and maintain bass clarity, which is especially valuable for bassists or full-frequency sources.

Two push buttons add further versatility: a Ratio Bank switch to alter the compressor ratio (allowing quick changes in compression strength) and a VU Meter Mode toggle to select what the onboard meter displays (input, output, or gain reduction).

Switchable Operating Modes and Bypass Options

The pedal features dedicated switches for Gain Boost / Normal and Time Slow / Normal modes. Gain Boost lets users compensate for signal loss typical in heavy compression or simply push the output harder. Time Slow shifts the envelope response for program-dependent compression suitable for different genres or dynamic sources.

For live or studio workflow, the EF-P5 is equipped with two footswitches:

• Effect Bypass: Removes the pedal from the chain entirely, preserving signal integrity.
• Compression Bypass: Leaves the transparent head-amp circuit in line, but removes compression processing, useful for comparing unaffected and affected sounds or using the pedal as a preamp.

LED indicators clearly display both effect and compression status at a glance.

Versatile Connectivity

The unit accepts either XLR or quarter-inch input jacks, making it compatible with microphones, instruments, or line-level studio equipment. Balanced XLR output supports professional interfacing, while a standard quarter-inch output keeps it pedalboard-friendly.

Unique for its class, the EF-P5 includes a sidechain input on quarter-inch jack, enabling advanced routing such as ducking effects or frequency-specific triggering, a feature typically seen in rackmount studio gear. This opens creative opportunities for users needing more complex dynamics processing on stage or in the studio.

Power Requirements and Construction

The EF-P5 is powered by a 9-volt DC power supply, drawing 350 mA. It uses a standard 2.1 x 5.5 mm barrel connector with center negative polarity, ensuring compatibility with many pedalboard power systems. However, prospective buyers should note that the power adapter is not included and must be acquired separately if not already available.

Who Is It For?

Given its feature set, the EF-P5 is not a beginner's entry-level compressor. Its range of controls, analog circuit design, and pro-level connectivity suit engineers, session guitarists, bassists, and serious live performers with demands for high-fidelity compression. The ability to fine-tune every aspect from attack/release timings, to mix blending, to external sidechains, gives it flexibility reserved for studio-grade equipment but accessible in a pedal-sized form.

Technical Summary

• Analog compression circuit, FET-based for fast response
• Studio-grade controls: input, output, attack, release, mix, high-pass filter
• Switchable ratio, envelope times, and gain boost modes
• Professional XLR and quarter-inch I/O, with sidechain input
• Dual footswitches for flexible bypass schemes
• Runs on 9 V DC; 350 mA current draw; power supply not included

Conclusion

The Echo Fix EF-P5 FET Compressor Pedal's specifications reveal a product bridging the gap between traditional studio rack compressors and portable pedal units. Its combination of full parameter control, mix blending, high-fidelity analog circuitry, and advanced routing like sidechain input position it as a serious tool for demanding musicians and sound engineers. For situations calling for detailed dynamics control and flexibility without leaving analog territory, the EF-P5 offers an extensive toolkit within a pedalboard footprint.
