Vahlbruch SpaceTime v3 Delay/Echo

Vahlbruch SpaceTime v3 Delay/Echo: Technical Test

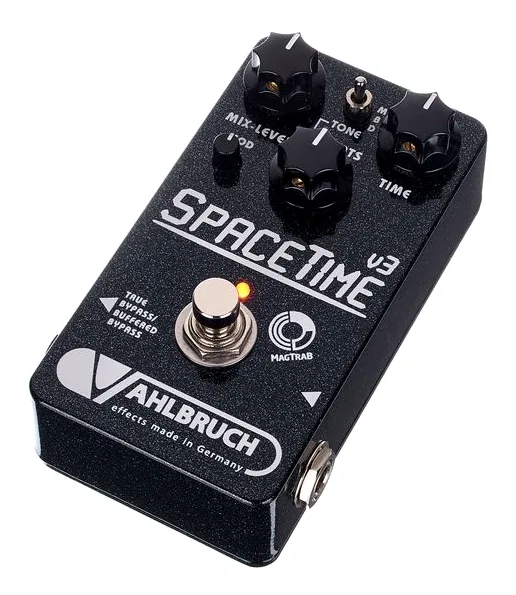

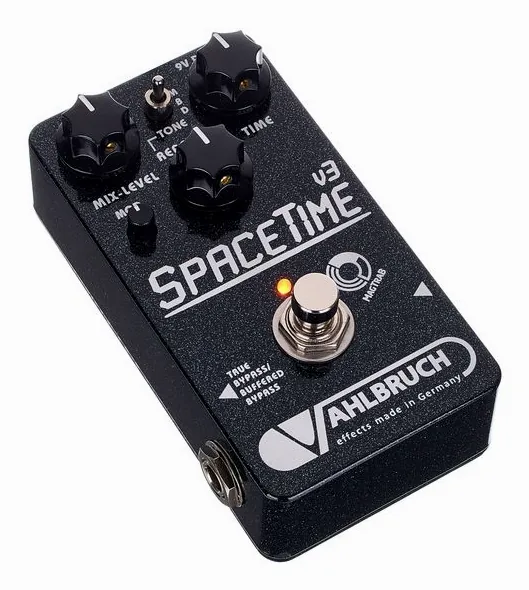

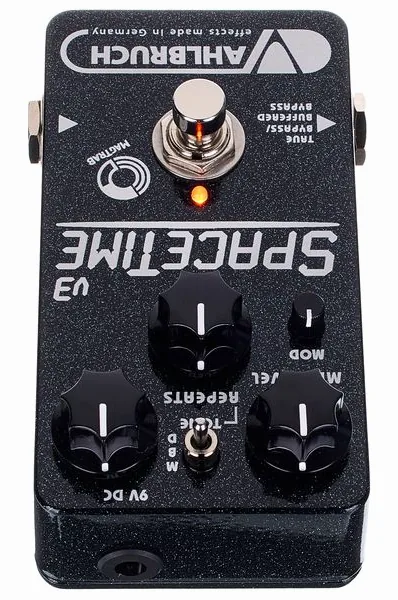

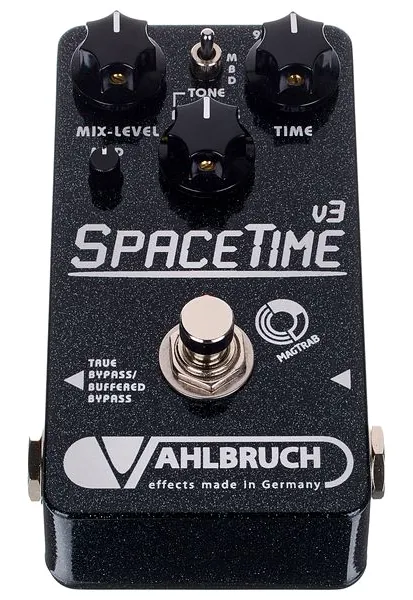

The Vahlbruch SpaceTime v3 Delay/Echo, handmade in Germany, presents itself as a compact analog/digital hybrid effects pedal. Designed primarily for spacious, ambient textures rather than tight, mechanical repetitions, it aims to integrate seamlessly with modern pedalboards. At a price point of $194, it is positioned between boutique and performance-grade models, offering distinctive technology and a refined sound profile.

Construction and Dimensions

This pedal is built in Germany and measures 4.53 inches long, 2.76 inches wide, and 1.89 inches high. Weighing in at 240 grams, it has a solid and practical chassis that sits securely on the pedalboard. The exterior, while understated, hints at precision work within. Power is supplied by a standard 9-volt DC adapter (not included), with a center-negative polarity. The absence of battery operation makes sense given its internal current demand (60 mA), a figure typical for modern, feature-rich delay circuits.

Main Features and Controls

The pedal offers a maximum delay time of 660 milliseconds, covering both slapback and longer echo needs. There is no tap tempo function, timing is adjusted with the Time knob. Instead, continuous delay time modulation is available via the Mod control, providing movement and textural depth for ambient sound work. The Repeats knob controls the number of echoes, and Mix Level determines the blend between the direct input and the delayed signal.

One standout is the three-position Tone switch, which toggles between Bright, Mellow, and Dark settings. This allows precise tailoring of the delay repeats, shifting the frequency emphasis without affecting the clarity of the direct signal.

Signal Path and MagTraB Switch

Vahlbruch prioritizes a pure, analog direct signal path. With an input impedance over 1 megaohm and an output impedance of 1 kiloohm, the design supports both guitars and line-level sources without tonal degradation. The analog signal path remains free of latency and preserves all original frequencies. The pedal's echo generation circuit merges analog warmth with digital clarity, resulting in low noise performance and a fidelity that is neither excessively sterile nor overly colored.

The footswitch uses the brand's proprietary MagTraB technology. Unlike traditional mechanical switches, this is a magnetic pushbutton system: when pressed, it actuates an internal magnet, avoiding physical contacts that can wear out. This design offers true instantaneous switching, with no audible pop and no lag. The switch feels stable and intuitive, responding to even the lightest touch.

The bypass system is accessible via an internal slide switch, giving users three modes: true bypass, buffered bypass, or a kill-dry mode (which mutes the direct signal when the effect is on). This flexibility makes it easy to integrate the SpaceTime v3 into both modern electronic setups and vintage-style pedal chains.

Sound Characteristics and Use Cases

• Delay/Echo Quality: The repeats produced are full, three-dimensional, and smooth, prioritizing musicality over sharp mechanical echoes. The analog-digital blend shapes each delay to enhance depth rather than rhythmic precision.
• Modulation: Subtle movement can be shared into each delay tap, from gentle shimmer to a slow, organic warble. This is continuous, not stepped, so you can dial in the right amount of animation for any mood.
• Direct Signal: Remains entirely analog, with no latency or high-frequency loss. This is crucial for players who want their original tone untouched by the effect circuit.
• Tone Switch: The Bright setting boosts higher frequencies for clear, present repeats. Mellow provides a balanced, low-mid emphasis, while Dark rolls off treble for lush, vintage echoes that sit back in the mix.
• Noise Performance: The pedal is very quiet, even when stacking the modulation and increasing the repeats, making it suitable for both studio and stage situations.

Comparisons and Applications

The SpaceTime v3's character sits between pure analog units (like the MXR Carbon Copy) and prominent digital models (such as those by Strymon), merging warmth and clarity. The response from users confirms its focus: it is designed less for dotted-eighth rhythmic subdivisions or clockwork repeats, and more for adding dimensionality and atmosphere. Used at modest settings, it replaces a reverb unit as a lush spatial enhancer, ideal for soloists, ambient musicians, and studio layering.

The interface is simple and inviting, without menu diving or presets, making it quick to adjust mid-performance. Its sonic strengths are flexibility in color and an ability to deepen a dry guitar or synth tone without smearing the transient response.

Conclusion

The Vahlbruch SpaceTime v3 Delay/Echo is carefully constructed, blending analog directness and digital precision in a compact, handmade pedal. Its focus is on class, nuance, and lush depth, qualities that will appeal to those building ambient, spacious effects chains. With a transparent direct signal, silent switching, adaptable bypass, and clearly designed controls, it is a serious contender for anyone seeking studio-grade delay in a straightforward package. For players valuing ambience, clarity, and reliability, it stands out as a thoughtfully realized delay/echo solution.
