MXR EVH 5150 Overdrive

MXR EVH 5150 Overdrive: Overview and Features

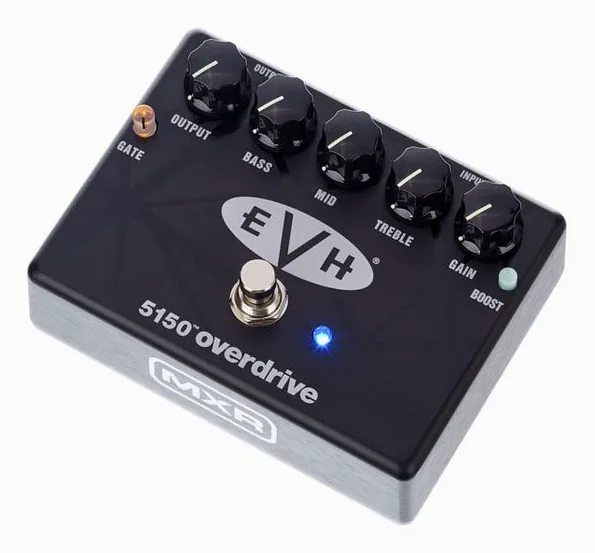

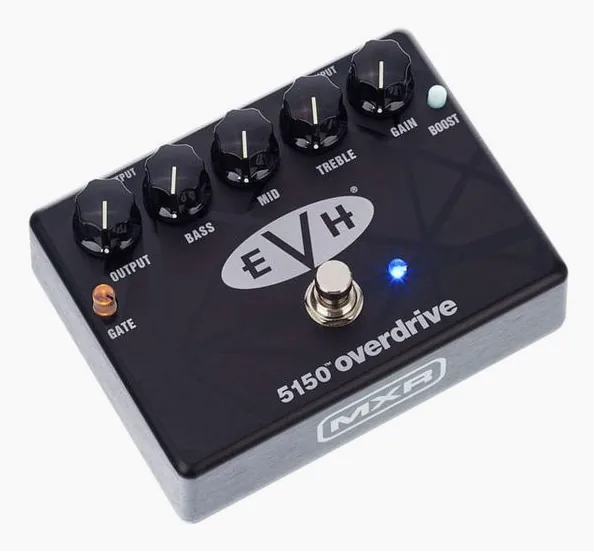

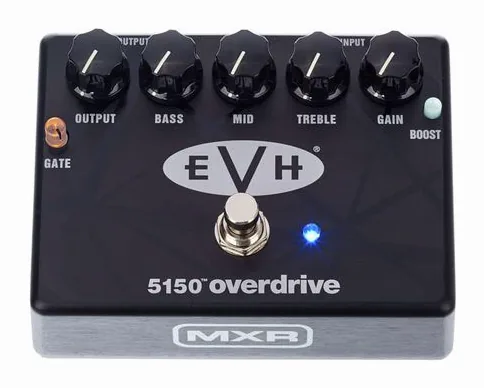

The MXR EVH 5150 Overdrive is the Eddie Van Halen signature stompbox targeting guitarists who want a compact, flexible solution for thick, high-gain tones. At $199, it offers a dedicated overdrive circuit (not distortion or fuzz), six control knobs (output, bass, mids, treble, gain, and a gate), and an integrated "smart gate" to tame noise without choking your sustain. This analog pedal features a solid metal housing, measuring 4.8 x 3.6 x 2 inches and weighing just under 1.8 pounds, with all jacks and the battery drawer conveniently placed for pedalboard setups.

Direct Controls and Connectivity

• Output adjusts the overall volume, allowing for unity gain or strong signal boost.
• Bass, Middle, and Treble deliver a full three-band equalization, letting you fine-tune your tone for different guitars and amps.
• Gain controls the level of saturation, from crunchy drive to high-gain aggression.
• Gate (with its own engage switch) activates MXR's "smart gate" circuit, which clamps down on hiss only when needed, keeping your tone intact.
• 6.3 mm mono input and output jacks are placed at the top, saving pedalboard space and making cable management straightforward.
• The pedal runs on a 9-volt battery or power supply (not included), offering flexibility for different gig or studio setups.

Sound and Performance Notes

The EVH 5150 Overdrive is rarely called "subtle." Its fundamental voice is big, aggressive, and detailed. The gain range sweeps from muscular crunch to saturated, thick lead and metal tones, modeled after Van Halen's amplifier channels. Even at lower settings, the signal remains clear and dynamic, allowing note definition especially in fast passages, which many competitors blur.

User feedback is nearly unanimous: the pedal transforms any clean amp, from budget combos to high-headroom boutique models, into a powerful, tube-sounding monster suitable for everything from late '70s rock to contemporary metal. Many describe it as "an amp in a box," with a surprising amount of touch-sensitivity, rolling your guitar's volume back cleans up the tone without losing presence or dropping into mud.

Key highlights from extensive user reports include:

• The bass control delivers authority without flab, and the middle control is particularly effective for "modern" scooped or more classic mid-forward settings.
• Attack and pick response feel close to a real tube amp, not flat or compressed except when the boost is enabled.
• The "smart gate" works cleanly, eliminating unwanted hum and hiss without sacrificing sustain or choppiness during staccato playing.

Tonal warmth and presence are frequent comments, with players citing rich harmonics and a natural bite, reminiscent of the best Marshall and EVH amp flavors. According to several field users, the MXR 5150 readily competes with (and in some cases beats) boutique amp-style pedals in its price class, especially when paired with humbuckers and higher-output pickups.

Boost and Gate: Subtle Enhancements, Not Complete Solutions

The onboard boost has prompted mixed reactions. While it can slightly tighten low end and compress transients, the physical switch is small and not footswitchable during play, making it impractical for live toggling. Many users prefer a separate pre-boost or clean boost pedal in front of the 5150 for more prominent kicks in volume or bite, but when used judiciously, the internal boost does add texture to already saturated tones. The real value added is the gate, users single out its reliability and musical action, especially when switching from rhythm to lead or muting strings on high-gain settings.

Build Quality and Practical Setup

This pedal continues MXR's reputation for durability. The aluminum housing feels rugged, the footswitch and rotary pots are robust, and the LED indicators (for both bypass and noise gate) are bright and clear on dark stages. Little touches, like "detents" on the EQ and gain controls, help with repeatability and quick adjustments. Some minor deductions come from the battery door, which feels less robust than the rest of the chassis, but this is a minor point for most, given the unit's expected use on powered boards.

Usage Scenarios and Who It's For

While the MXR EVH 5150 Overdrive is packaged as an "overdrive," in practice it covers a spectrum from hard rock aggression to high-gain metal with notable credibility. It excels in front of clean tube amps where its voice is clearest, but also fares well pushing an already clipping amplifier into tight, harmonically rich saturation. Versatility is aided by the three-band EQ but reaches its full potential when adjusted with care, some find the tonal shaping less pronounced than on amp-based channels, and those seeking subtle blues or light breakup may find the 5150 overwhelming.

This pedal is especially suited for:

• Players craving '80s hard rock or modern metal without hauling large amps.
• Use as a main gain stage in live or studio setups reliant on clean base tone.
• Guitarists wanting the essence of Van Halen's "brown sound" on a portable pedalboard.
• Anyone who prioritizes noise reduction integrated directly in their drive section.

Complaints are minor: some wish for a presence control to fine-tune high frequencies, and the boost's inaccessibility during performance is limiting for those needing channel-switching flexibility on stage.

Summary: A Focused High-Gain Solution

The MXR EVH 5150 Overdrive stands out as a premium, potent stompbox that brings convincing, hot-rodded amp tones to any rig. It rewards careful setup with edge, note clarity, and a touch of amplifier-like interaction through the guitar's controls. The sturdy build, top-mount jacks, smart gate, and straightforward control scheme make it practical for pedalboards both small and large. For players who live in the world of powerful riffing and saturated leads, or anyone chasing the Eddie Van Halen legacy in a portable format, the EVH 5150 Overdrive earns its place, and justifies its asking price for the sound and flexibility delivered.
