Line6 Helix Rack Guitar Processor

Introduction: The Line6 Helix Rack in Context

The Line6 Helix Rack Guitar Processor is positioned as the company's flagship rackmount solution for guitarists needing highly realistic amp and effect modeling, deep routing options, and robust studio integration. At $1269, it sits in competition with high-end alternatives like Fractal Audio Axe-FX and Kemper, but offers a distinct approach with its next-generation modeling engine and workflow. The following test examines its design, sound, features, and working experience from the ground up, drawing on long-term usage and extensive feedback from studio and live environments.

Hardware and Connectivity: What Stands Out

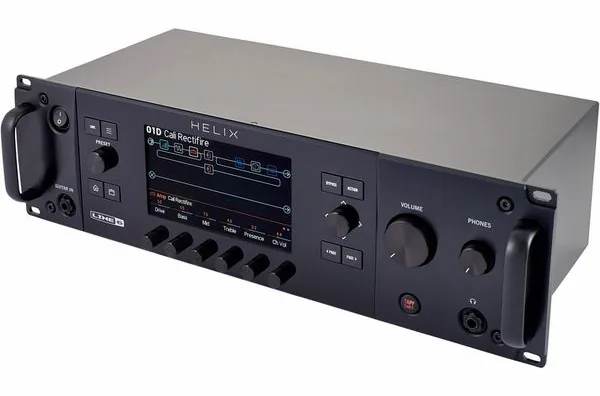

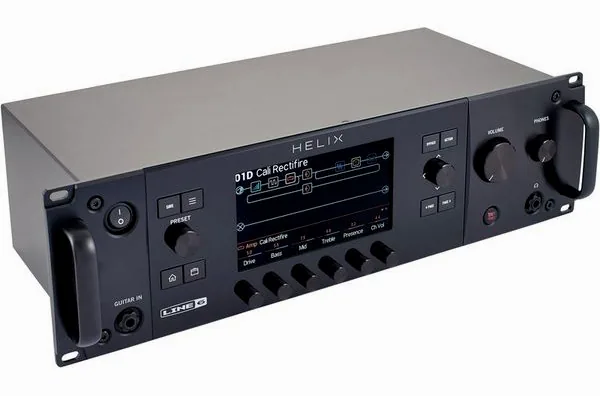

The Helix Rack comes in a standard 19-inch, 3U format measuring roughly 19 x 5.25 x 9.5 inches (48.26 x 13.34 x 24.13 cm) and weighing 9.25 lbs (4.2 kg). Its robust metal construction is appreciated by players who routinely move gear between studio and stage, although some users find the use of plastic for the main controls and rear-panel connectors disappointing at this price. Still, the overall build is considered solid and "roadworthy" for gigging musicians.

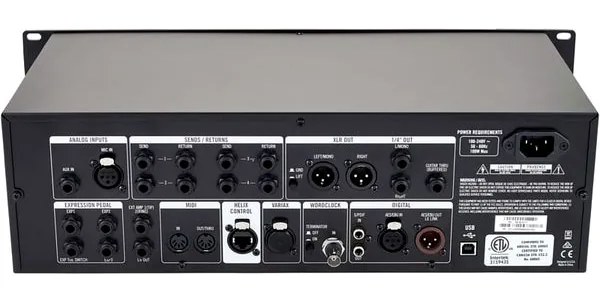

On the connectivity front, the Helix Rack covers almost every scenario:

• 10 inputs and 12 outputs (four analog effect loops offer huge routing flexibility)
• XLR, 6.3mm (quarter-inch) outputs, and digital AES/EBU and SPDIF I/O
• MIDI in/out/thru for comprehensive control in any rig
• 8-in/8-out USB audio interface for direct multitrack recording and reamping
• Headphone output and auxiliary input on the front panel
• CV/expression outs; up to three external expression pedals are supported

Notably, Line6 includes amplifier channel switching outputs, so you can automate analog amp functions without an external MIDI switcher. Integration with Line6's Helix Control floorboard (sold separately) is seamless and highly recommended for live use. Power is internal, so there's no external "wall wart" to worry about. However, some wish the rack included at least a basic expression pedal given the price.

User Interface and Workflow

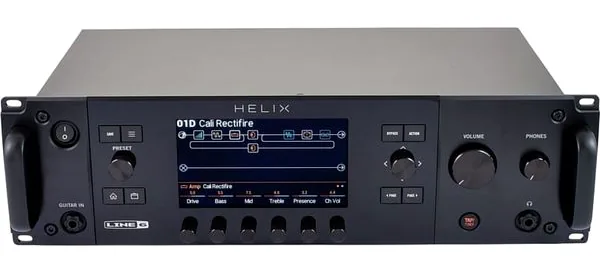

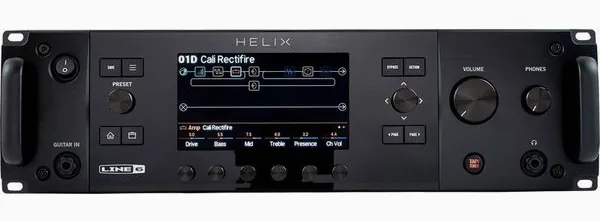

If you're coming from older Line6 gear or other modelers, the Helix Rack's workflow is a major leap forward. The color display offers a clear visual layout of the complete signal path, and hands-on navigation, particularly with the Helix Control, makes it fast and intuitive to create, edit, and reorder signal chains. Fundamental operations, from preset editing to signal routing, rarely require diving into a manual, and most functions mirror real-world pedal and amp workflows. Preset management is straightforward, and the bundled Helix Editor app adds further convenience for desktop users, even if early versions were slow to mature.

Snapshot functionality stands out: presets can store multiple variations ("snapshots") with zero switching lag, ideal for seamless live performance transitions.

Modeling and Effects Engine

Central to the Helix Rack is Line6's dual-DSP HX modeling engine, powering up to four discrete stereo signal paths. This allows for complex parallel and serial routings (including "four cable method" setups with real amps) with no perceptible latency, even under heavy loads.

• 45 amplifier models: from classic British and American circuits to boutique designs
• 30 speaker cabinet models and 16 microphones with variable placement and distance
• Over 70 onboard high-quality effects, including dynamics, overdrives, reverbs, modulations, and more
• Support for imported impulse responses (third-party speaker simulation) with up to 2048 sample resolution

The authenticity of the amp and cab modeling is consistently praised. Many report that classic models (such as British, American tube combos, and contemporary high-gain heads) respond and "feel" much closer to tube amplification than previous Line6 units, particularly in dynamic touch and decay. Some older models might lack a certain "liveliness" compared to real amps, but when played through a PA or in a band mix, the differences are minimal. Effects quality holds up to dedicated pedals and covers a broad tonal range out of the box.

Impulse response handling is a highlight, letting users expand beyond the included cabinets. Many players load third-party IRs to further refine their signature sound.

Routing and Studio Integration

The signal path flexibility is a true strength. Four effect loops allow external pedals or preamps to be inserted anywhere within the chain, or rerouted as send sources to amps and outboard processors. Separate outputs can be assigned with or without cabinet simulation, so you can send a processed tone to front-of-house and a direct preamp feed to a stage amp simultaneously.

USB audio implementation is robust, delivering eight channels in and out for multitrack recording, reamping, and DAW integration. Some users have noted the built-in interface's latency is higher than basic USB audio interfaces (around 25ms vs 13ms for competitors) when tracking at low buffer sizes, so dedicated audio interface users may want to test compatibility for real-time work.

MIDI and CV control are extensive, allowing the Helix Rack to act as a command center in both analog and digital setups. Presets can automate amplifier switching, outboard FX, and even live stage lighting in sophisticated rigs.

Reliability, Firmware, and Support

Long-term users consider the Helix Rack mechanically reliable, with most issues limited to minor bugs (addressed via regular firmware updates from Line6). Major updates consistently add new amps, effects, and workflow improvements at no extra cost.

One longstanding criticism is Line6's handling of computer drivers and OS updates, particularly on macOS, driver updates may lag behind newly released OS versions, affecting compatibility for some users.

Conclusions: Who Is the Helix Rack For?

If you're a guitarist or studio producer needing a centerpiece that integrates amp modeling, comprehensive effects, flexible signal routing, and direct control over complex rigs, the Line6 Helix Rack delivers. Its standout strengths include deeply realistic tones, a genuinely intuitive user interface, and rock-solid connectivity for almost any scenario, from full digital direct rigs to hybrid pedalboard/amp setups using the four cable method.

The few drawbacks, such as plastic hardware touches, bundled accessory omissions, and occasionally lagging driver updates, do not outweigh its core performance and versatility. While it's not a "valve amp in disguise," the Helix Rack comfortably replaces multiple amps, FX, switchers, and interfaces in a single piece of gear, making it a lasting investment for both live and studio guitarists.

Verdict: The Helix Rack achieves its goal as a true rackmount command center. It's not just about the quantity of models and features, but the quality, usability, and musical results in real-world scenarios that make it a winner in the high-end modeling space.
