Boss WAZA Tube Amp Expander: In-Depth Test

The Boss WAZA Tube Amp Expander claims a spot at the pinnacle of modern amp management tools by combining a variable reactive load box, an attenuator, effects processor, and recording interface, all in one robust enclosure. Priced at 1269, it targets demanding guitarists and studio pros who need to use their favorite tube amplifiers to their fullest potential while solving the age-old problem of unmanageable volume. After a careful hands-on session, I can confirm that few rivals come close to its capabilities, though a few caveats remain for those with very specific workflow demands.

Build, Connections, and Hardware

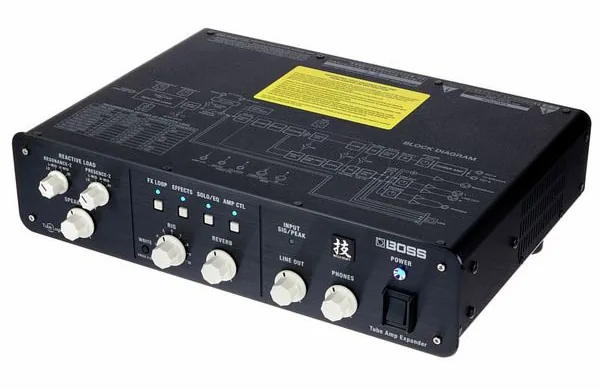

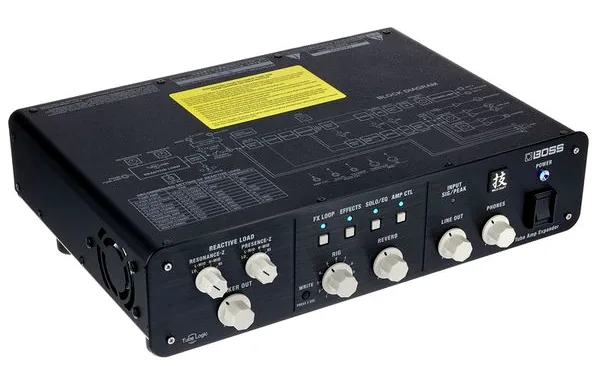

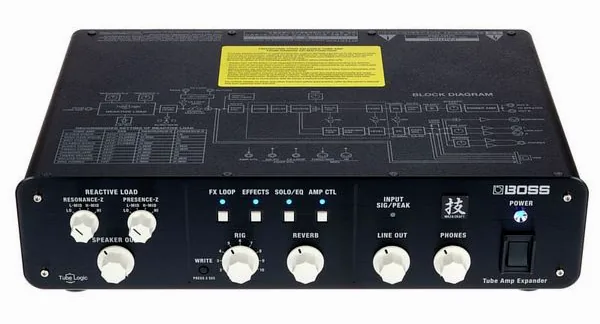

Weighing in at 6.8 kg and measuring 381 x 297 x 111 mm, the WAZA Tube Amp Expander feels exceptionally solid and built for the rigors of stage and studio alike. The unit's hardware connectivity is among the most comprehensive in this category:

• Amplifier input (6.3 mm jack), handling up to 150 watts from any tube amplifier
• Speaker outputs (dual 6.3 mm jacks) for live setups
• Balanced XLR line outputs (mono and stereo) feed directly to mixing consoles or recorders
• Dedicated headphone output for silent practice with full amp tones
• Comprehensive effect loop with send/return jacks for pedal integration
• USB interface for direct audio recording and software editing
• MIDI and footswitch ports for real-time control

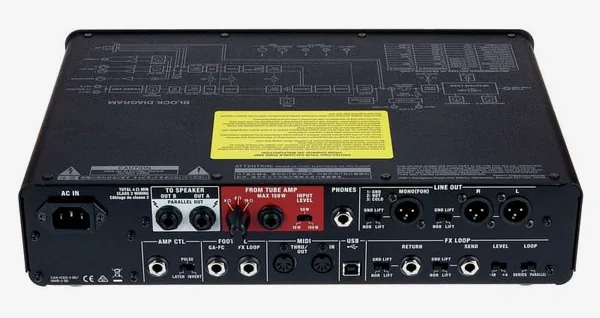

The rear panel's switches for impedance (4, 8, 16 Ohms) and multiple ground lift options ensure safe, noise-free operation with nearly any amp and speaker setup. Careful attention to the amplifier and unit power-up sequence is critical, and the documentation warns clearly: improper setup can risk damage. The internal power stage is a custom 100-watt Class AB analog amplifier that can drive speakers quietly or loudly, with seamless volume control via an attenuator knob.

Attenuator & Load Box Performance

The heart of the WAZA lies in its modern, variable reactive load and attenuator section. Unlike most alternatives, which use stepped settings or limited attenuation choices, Boss provides a continuously variable attenuator. This precision means you can find exactly the right output volume, from roaring full stage sound down to whisper-quiet levels, without losing the feel, dynamic response, or tonal signature of your amplifier. Anecdotal tests with classic high-wattage amps (Marshall, Mesa) revealed that even when reducing volume dramatically, the amp's touch sensitivity and harmonic complexity were retained. No digital flattening, no loss of "feel," just pure tube character at any loudness.

The dummy load enables full amp operation without a physical speaker cabinet, essential for silent recording or late-night sessions. Many users note the necessity of reading the manual thoroughly before first use, especially regarding impedance matching and power handling, this is a precision device for serious amp users.

Speaker Simulation and Effects

Onboard speaker emulation is a major strength. Boss equips the unit with 22 cabinet models, each offering five close microphone types and three ambient mic simulations. Four user slots allow for custom impulse responses via the editor software (Mac/Windows), though some competitors allow multiple IRs at once while the WAZA limits this to one active IR. Still, the tonal options and control over mic placement, cabinet type, and ambient mix are more detailed and dynamic than most analog solutions.

The integrated DSP effects complement the simulation: Compressor, delay, reverb, and four-band EQ are all user-editable, plus effect loop routing can be set to serial or parallel. Notably, the presence and resonance controls (marked as "Resonance Z" and "Presence Z") let players tweak the way the system interacts with the amp's response for extra authenticity, even when playing direct. Effects are stereo-capable and can replace a pedalboard for many applications, a unique value for vintage amplifiers lacking their own loop.

Presets and Direct Control

The top panel offers direct access to 10 memory slots for rigs and settings, more than the main competition. Footswitch and MIDI expand real-time onstage or studio control. While these features are powerful, the full editing experience relies on the software via USB, there's no Bluetooth or wireless option, and you can't stack multiple IRs as you can with some other systems. The learning curve for software control is moderate, but every parameter from effect routing to speaker/mic setup is manageable once connected.

Practical Experience and Sound

In use, the WAZA Tube Amp Expander quickly reveals its ability to let classic tube amps run at their sweet spot, even in an apartment or a quiet studio. Tone, dynamics, and distortion all remain intact at any volume. Users consistently praise the transparent attenuation and realistic cab simulations, especially when recording direct via USB or XLR. The headphone output is among the best on a unit like this, suitable for hi-fi levels without the thinness or brittleness found elsewhere. Studio engineers and home players alike point out that, once set up correctly, this may be the only device needed between a tube head and a mixing desk, headphones, or speaker cab.

On the downside, the high price, reliance on wired editing, and limitation to one impulse response at a time will be significant for certain advanced users. However, for working guitarists, especially those juggling both modern and vintage amplifiers, the flexibility and sonic quality outweigh these limitations. The foot controller add-on is strongly recommended for live performance.

Verdict

The Boss WAZA Tube Amp Expander is a flagship solution for anyone who wants the sound and feel of a classic tube amp at any volume, without compromise. It is engineered for flexibility, deep tonal shaping, and professional connectivity. Despite a few workflow restrictions, it stands as the reference for reactive attenuation, cabinet emulation, and workflow integration in high-end amp management.
