Joyo Gem Box K8

Joyo Gem Box K8 Hands-On Test: All-in-One Floorboard Processor

The Joyo Gem Box K8 positions itself as a fully loaded multi-effects floorboard for guitarists looking for broad connectivity, deep tweakability, and a rugged stage presence. Built entirely in metal and featuring a large color touchscreen, it combines 163 effects, amp simulation, MIDI, IR support, looper, and integrated expression pedal, all in a single box. At a street price of 291, it faces direct competition in the midrange multi-effects market. Here's a detailed evaluation from a technical and user perspective.

Build Quality and Hardware Design

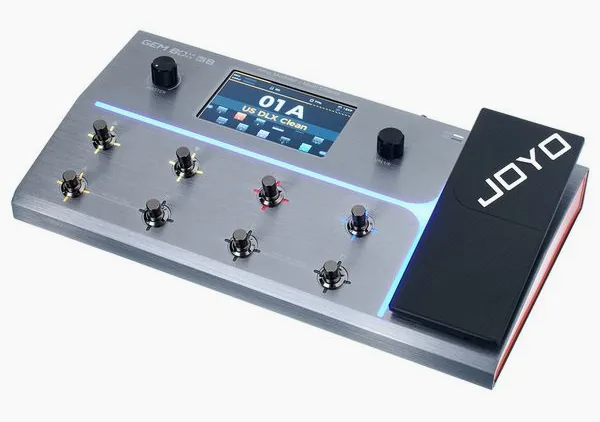

The chassis of the Gem Box K8 is made entirely of metal, and this is immediately noticeable in both the weight (3 kg) and the impression of durability. All jacks are full-sized 6.35 mm, with sturdy connectors for in, out, send/return, and expression pedal. The pedalboard measures 380 mm wide, 207 mm deep, and 65 mm high, making it relatively compact but heavy enough to stay put on stage.

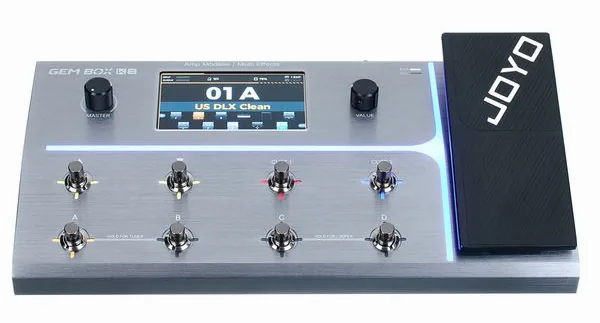

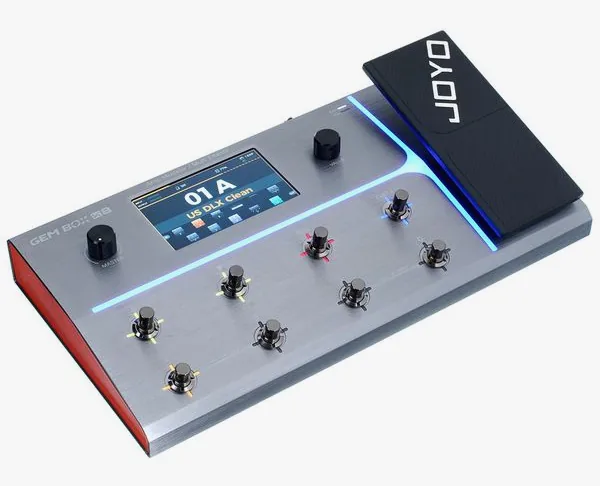

The integrated expression pedal, also finished in metal, feels substantial underfoot without excessive resistance. Switches for up, down, four custom assignments, and A-D preset access are arranged for clear, foot-friendly use. LED strip indicators and footswitch LEDs provide immediate status feedback, a practical touch especially for stage lighting scenarios. All user interaction centers around the 5-inch color touchscreen, which is large, sharp, and responds quickly to finger input. The screen's responsiveness stands out, especially when compared to slower LCD panels on competing models.

Effects, Amp Simulation, and Signal Processing

At its core, the Gem Box K8 offers 163 effects covering distortion, amp and cabinet modeling, equalization, modulation (chorus, phaser, flanger), delays, reverbs, noise gate, and more. These are organized into 11 effect modules, letting you build layered signal chains with up to 9 simultaneous effects. Factory presets supply 80 ready-to-play sounds, and you get up to 320 user memory slots, ample room for a personal library of tones. The internal sound engine is highly editable from the touchscreen menu. Adjusting effect order, parameters, or swapping between amp models is fast and intuitive once you know the workflow.

The amp simulation engine supports user impulse response (IR) loading via USB. This extends sonic flexibility far beyond the factory cabs, letting you import third-party IRs for custom speaker simulation. The lack of mechanical tube circuits means you get consistent digital tones at any volume, with less risk of hum or microphonic feedback.

Looper, Drum Machine, and Tuner Integration

Onboard, the looper gives you 60 seconds of record time. This is enough for phrase practice or framing a riff but falls short for more involved looping arrangements. The drum machine covers programmable practice or basic backing tracks for solo gigs, controlled via the touchscreen. A chromatic tuner with both bypass and mute tuning is included, with fast tracking and large display visibility, handy for gigging situations.

Connectivity

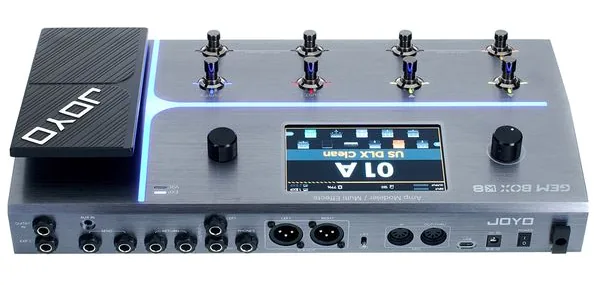

Full routing options separate the Gem Box K8 from simpler floor units:

• Inputs: guitar input (6.35 mm), stereo return (2x 6.35 mm), aux in (3.5 mm stereo)
• Outputs: unbalanced stereo out (2x 6.35 mm), balanced stereo out (2x XLR), stereo send (2x 6.35 mm), headphone out (6.35 mm stereo)
• Other: expression pedal input (6.35 mm stereo), full MIDI (in/out/thru), USB C for firmware/DAW

This makes the unit compatible with traditional amps, powered speakers, audio interfaces, or direct mixing desk setups. MIDI I/O is a rare bonus in this price range, helpful for integrating with external control systems or synchronized setups. The power supply is included and features a standard 9V DC barrel connector with center-negative polarity.

User Experience: Strengths and Weaknesses

The overall user impression is positive when it comes to construction, connectivity, and the quick-responding touchscreen. The real hardware is robust, no flex or obvious weak points. Sound quality from the effects and amp simulations rates above average in this class, particularly when using custom IRs.

However, user feedback highlights two consistent issues. First, the editing software (for patch editing or librarian tasks on a computer) is underdeveloped. Firmware can be updated via USB, but the lack of a mature desktop editor makes large-scale preset management cumbersome. Second, product documentation and firmware update information are limited online, making it harder for English-speaking users to troubleshoot or extend functionality.

Conclusion: Who Is the Gem Box K8 For?

For stage and studio guitarists seeking a heavy-duty metal floorboard with all essential effects, amp modeling, and broad output options, the Joyo Gem Box K8 offers a competitive feature set. Its 5-inch touchscreen and flexible patching stand out against rivals. The main limitations are in the software ecosystem and online support rather than hardware or sound quality. If you value hands-on control, tactile switching, and custom routing options above complex external editing, the Gem Box K8 is a strong contender in its price range.

• Pros: Strong build, quick touchscreen, 163 effects, IR support, comprehensive connectivity, included power supply.
• Cons: Poor software support, limited online documentation, modest looper capacity.

On balance, the Gem Box K8 is a serious all-in-one multi-effects device with practical strengths for hands-on musicians, even if its software support lags behind its hardware innovation.
