The EVH 5150 DX Baked Maple LMZ pairs a roasted maple neck, dual Wolfgang humbuckers, and a Floyd Rose 1000 tremolo with D-Tuna. At $1,222, it offers a focused feature set for players who want a locking-tremolo guitar and are comfortable with its setup demands.
★★★★★ 4.5/5 · 2 buyer reviews · 6 min read · updated 2026-10-07 · Tested by Cal Whitaker
Technical review: Evh 5150 DX Baked Maple LMZ

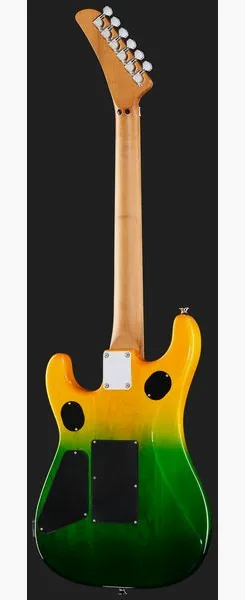

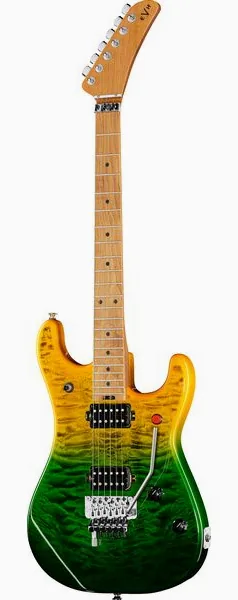

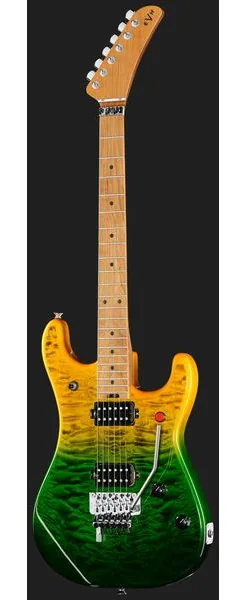

The Evh 5150 DX Baked Maple LMZ is a six-string electric guitar built around a basswood body, a quilted maple top, and a bolt-on neck made from quarter-sawn roasted maple. Its listed price is 1,222, and the model has been available since March 2026. The finish is Limeade Zest, a vivid green, with chrome hardware. This assessment is based only on the published specifications. No customer reviews are available, so there is no independent user feedback to report.

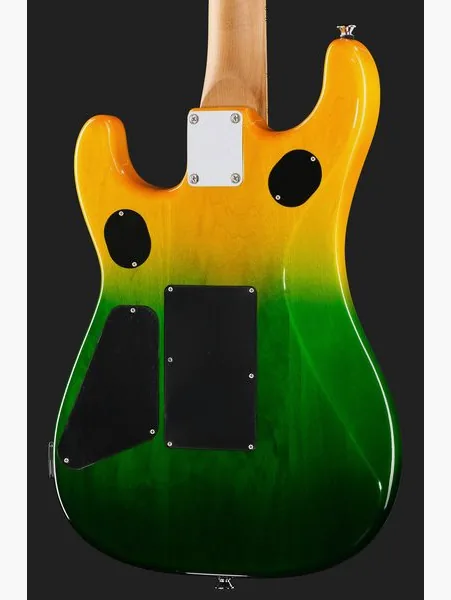

The body combines basswood with a decorative quilted maple top. The specifications do not give body weight, body dimensions, or the top's thickness, so those details cannot be assessed here. The roasted maple neck and matching fingerboard provide a consistent wood choice across the playing surface. The neck attaches with a bolt-on joint, and black dot inlays mark the fingerboard. These details establish the instrument's construction, but the supplied information does not describe its finish, neck reinforcement, or setup from the factory.
Neck, scale, and playing layout
The neck profile is listed as an EVH Modified "C" backshape. Its compound fingerboard radius runs from 12 inches to 16 inches, or 305 to 406 millimeters. That changing radius is a specific design feature, while the profile name identifies the neck shape; neither specification alone establishes how the neck will feel to a particular player. The scale length is 25.5 inches, or 648 millimeters, and the nut measures 1.6875 inches, or 42.9 millimeters.
The fingerboard has 22 jumbo frets. The fret size and count are useful reference points when comparing the guitar with other instruments, but the data does not specify fret material, fretboard edge treatment, or setup measurements. The listed string set is nickel-plated steel in.009 to.042 gauges. That is the supplied string specification, not confirmation of the exact strings fitted to every individual guitar at the time of purchase.
Pickups and controls

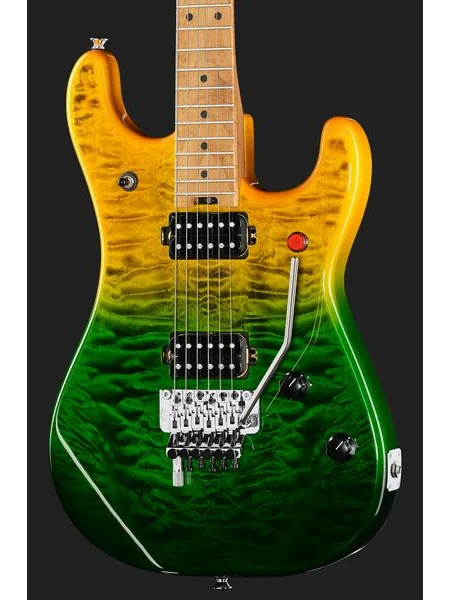

Two direct-mounted EVH Wolfgang humbucking pickups are installed in the neck and bridge positions. The pickup layout is HH, meaning two humbuckers. The specifications identify the pickup type and mounting method, but do not provide output figures, magnet type, coil options, or a switching diagram. It would be speculative to assign a particular tonal character or output level without those details or a direct test.
The control set consists of a volume control with a treble-bleed circuit, a tone control, a three-way pickup selector, and a kill switch. The treble-bleed circuit is explicitly included with the volume control. The three-way selector provides the stated pickup switching, while the kill switch is a separate control feature. The source does not describe the switch's location or operating format, so those points should be checked on the instrument itself.
Bridge and tuning hardware
The guitar uses a top-mounted, EVH-branded Floyd Rose 1000 locking tremolo with an EVH D-Tuna. A Floyd Rose R3 locking nut is specified at the head end, and EVH-branded Gotoh tuning machines complete the tuning hardware. Taken together, these are the key components of the model's locking tremolo setup. The published data does not state the factory spring configuration, bridge adjustment, or the precise procedure for changing tunings with the D-Tuna.
The locking nut and tremolo are relevant practical considerations for players comparing this model with a fixed-bridge guitar. A locking system has its own setup and string-changing requirements, so buyers unfamiliar with this hardware may want to review those tasks before purchasing. The specifications establish the parts fitted, but provide no evidence about tuning stability in use or how easily this particular instrument returns to pitch.
Included gear and buying considerations
An EVH Striped Series gig bag is included. No hard case is included, according to the supplied information. The sales unit is one piece, and the item number is 636820. These details help clarify what comes with the guitar and how the product is identified, but the source does not provide the bag's dimensions, padding, or storage features.
On paper, the Evh 5150 DX Baked Maple LMZ is defined by its roasted maple neck and fingerboard, 22 jumbo frets, dual direct-mounted humbuckers, and locking Floyd Rose hardware with a D-Tuna. Its control layout also includes a kill switch and a volume treble-bleed circuit. The available specifications are detailed enough to identify the main construction and hardware choices, but not to verify sound, comfort, finish quality, weight, or setup condition. Prospective buyers should treat those as open questions and inspect or play the guitar when possible.
Shipping and duties
The retailer ships from its warehouse in Germany. Prices are shown in US dollars and do not include import duties. Orders under roughly $800 usually clear US customs without duty; above that, a duty of a few percent may be collected on delivery. 30-day money-back and a 3-year warranty apply.
Scores by area
Where it shines, where it stumbles
What convinced me
- Two direct-mounted EVH Wolfgang humbucking pickups with a three-way selector
- Floyd Rose 1000 locking tremolo includes an EVH D-Tuna
- Roasted maple neck and fingerboard with a compound-radius fingerboard
- Includes an EVH Striped Series gig bag
What bugged me
- The locking tremolo may take more time to set up and maintain than a fixed bridge
- No hard case is included
Is it the right one for you?
Good pick if
A good fit for players seeking dual humbuckers, a locking tremolo, and a roasted maple neck and fingerboard. Also suited to guitarists who want the included D-Tuna and are comfortable maintaining a Floyd Rose system.Look elsewhere if
Less suitable for players who want the simplest possible setup or prefer a fixed bridge. Look elsewhere if a hard case is essential or if you need customer reviews before buying.Suggested level: Intermediate
Specifications
- Color
- Green
- Body
- Linden
- Top
- Quilted Maple
- Neck
- Roasted Maple
- Fretboard
- Roasted Maple
- Frets
- 22
- Scale
- 648 mm
- Pickups
- HH
- Tremolo
- Floyd Rose
- Incl. bag
- Yes
- Including case
- No
Up close
Watch and listen
Before you decide
Questions players ask
Does the guitar include a case?
It includes an EVH Striped Series gig bag, but no hard case.
What pickups does it have?
It has two direct-mounted EVH Wolfgang humbucking pickups, one at the neck and one at the bridge, with a three-way selector.
What does the D-Tuna do?
The EVH D-Tuna is fitted to the Floyd Rose 1000 locking tremolo and provides a quick low-string tuning change.
What are the neck and fingerboard made from?
Both are made from roasted maple. The neck has an EVH Modified C profile and the fingerboard has a compound radius from 12 to 16 inches.
Is this a good choice for a first guitar?
It could suit a motivated beginner, but the locking tremolo adds setup and maintenance complexity. Players new to guitar may find a fixed-bridge model simpler to manage.
The last word from the bench
The specifications point to a guitar built around stable tuning hardware, a compound-radius fingerboard, and dual humbucking pickups. The Floyd Rose 1000 and D-Tuna add useful pitch and tuning options, though a locking system requires more involved setup than a fixed bridge. A gig bag is included, but a hard case is not. With no customer reviews available, this assessment is based on the supplied specifications alone.
