Charvel Pro-Mod Plus DK24 HSS QM ZF

Charvel Pro-Mod Plus DK24 HSS QM ZF review

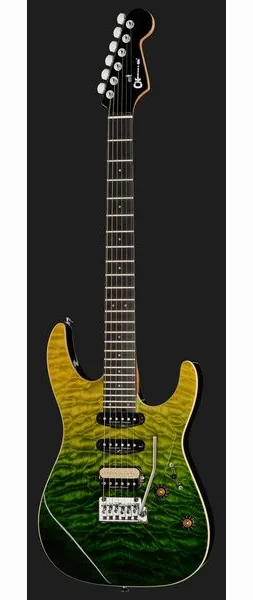

The Charvel Pro-Mod Plus DK24 HSS QM ZF is a 24-fret electric guitar with a basswood body, a quilted maple top, and a roasted maple bolt-on neck. Its specifications put several adjustment and wiring options within reach: a five-way blade switch, a two-way mini-toggle, a no-load tone control, and a recessed Wilkinson tremolo. The listed price is $1,222, and the guitar includes a deluxe gig bag rather than a hard case.

This is a specification-based assessment. No customer reviews or independent play-test results were provided, so claims about comfort, tuning stability, or the guitar's sound in use would go beyond the available evidence.

Body, neck, and fingerboard

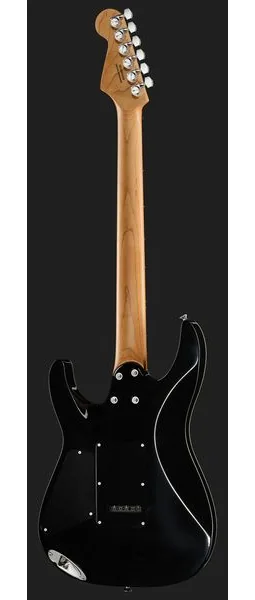

The body is listed as basswood, also known as linden, with a quilted maple top. The finish is Zombie Fade, a green color, and the hardware is chrome. The roasted maple neck is bolted on and reinforced with graphite. Its satin finish is paired with an ebony fingerboard, rolled fingerboard edges, and 4 mm pearloid dot inlays. Luminlay side-position markers provide another form of fret-position reference.

The fingerboard uses a compound radius that transitions from 12 inches to 16 inches. That measurement describes a flatter surface toward the higher frets than near the lower frets. The design may suit players who want a more curved feel in lower positions and a flatter playing surface higher up, though actual comfort depends on individual preference and setup.

There are 24 jumbo stainless steel frets. Stainless steel is the specified fret material; the supplied data does not establish how the frets feel or how long they will last under a particular player's technique. Scale length is 648 mm, or 25.5 inches, and nut width is 42.86 mm. A Graph Tech TUSQ XL nut sits at the end of the fingerboard. Neck adjustment is handled by a dual-action truss rod, with its adjustment wheel mounted at the heel.

Pickup layout and controls

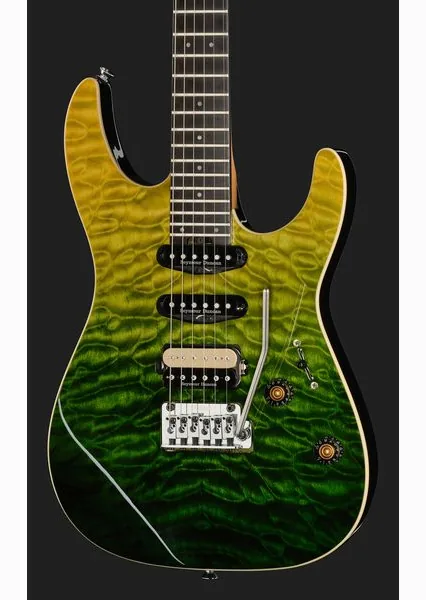

The HSS arrangement combines a Seymour Duncan Full Shred TB-10 humbucker at the bridge with two Seymour Duncan SSL-6 single-coil pickups. The middle pickup is an SSL-6, while the neck position uses an SSL-6 RWRP model. The specifications identify the pickup types and positions, but do not provide output measurements or frequency-response data.

A five-way blade switch selects pickup configurations. A separate two-way mini-toggle is described as selecting series wiring in the down position and all pickups in parallel in the up position. The available details do not list every resulting pickup combination for each blade-switch position, so the precise switching map cannot be confirmed here.

The volume control is a 500K EVH Bourns Low Friction Speed Knob. The tone control is a no-load design. Together, these controls give the player standard level and tone adjustment, with the extra mini-toggle adding a wiring option. The specs do not explain the no-load control's operation or its effect on the circuit, so it is best to check the manufacturer's documentation for the exact control behavior.

Tremolo, hardware, and included accessories

The guitar has a recessed Wilkinson WVS130-2P tremolo with locking saddles. Charvel die-cast locking machine heads are also listed. These are distinct parts of the tuning system: the saddles lock the strings at the bridge, while the locking machine heads secure them at the headstock. The specifications do not state whether the tremolo is intended to float or sit against the body, nor do they describe its setup range.

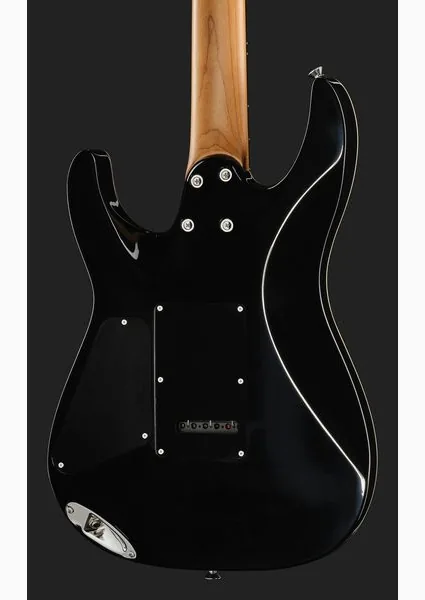

The input jack is mounted on the back of the body in a Strat-style position. The listed strings are nickel-plated steel in a.009,.042 gauge set. Those details identify the factory string type and gauge, not a required replacement choice. The instrument ships with a deluxe gig bag; no hard case is included.

What the specifications establish

The DK24 HSS QM ZF offers a clearly defined feature set: a 25.5-inch scale, 24 stainless steel frets, a compound-radius ebony fingerboard, three Seymour Duncan pickups, and a recessed Wilkinson tremolo. Its neck adjustment wheel at the heel and locking hardware are also specified. These details make the model a reasonable candidate for players comparing modern HSS guitars, but they do not substitute for checking the neck profile, pickup response, tremolo feel, and overall setup in person.

Available since September 2026, the model is listed under item number 648031. At $1,222, buyers should confirm current pricing, stock, and included accessories with the retailer. With no customer feedback available, the most reliable buying decision will come from verifying the switching functions and trying the instrument before purchase, if possible.
