Charvel Pro-Mod Plus DK24 HSS QM ATE
The Charvel Pro-Mod Plus DK24 HSS QM ATE pairs a versatile Seymour Duncan pickup layout with a performance-focused neck and locking tremolo hardware. Its specifications suit players who want a wide range of sounds and a fast-feeling, 24-fret design.
★★★★★ 4.5/5 · 2 buyer reviews · 5 min read · updated 2026-10-07 · Tested by Cal Whitaker
Charvel Pro-Mod Plus DK24 HSS QM ATE: technical review
The Charvel Pro-Mod Plus DK24 HSS QM ATE is an electric guitar with a linden body, a quilted maple top, and an HSS pickup layout. Its listed price is 1222, and it has been available since September 2026. The specifications describe a 648 mm scale, 24 jumbo stainless steel frets, a two-point Wilkinson tremolo, and several features intended to support adjustment and practical stage use. No customer reviews are available, so this assessment is based only on the supplied specifications.
Construction and neck
The body is listed as linden, also identified in the detailed specifications as basswood. Its quilted maple top is finished in Amber Tiger Eye. The bolt-on neck is made from roasted maple, described in the detailed listing as caramelized maple, and has graphite reinforcement. A satin finish is specified for the back of the neck. The fingerboard is ebony, with rolled edges and 4 mm pearloid dot inlays.
The 648 mm scale length is equivalent to 25.5 inches. The fingerboard uses a compound radius that transitions from 12 inches to 16 inches. The listed nut width is 42.86 mm, and the nut is a Graph Tech TUSQ XL component. Charvel specifies 24 jumbo stainless steel frets. Those details provide a clear picture of the neck dimensions and fret material, though the specifications do not state the neck profile or its thickness measurements.
Small setup details include Luminlay side position markers and a dual-action truss rod adjusted by a wheel at the heel. The wheel gives direct access to the adjustment point without a separate truss rod wrench, according to the listed design. The guitar's neck reinforcement and adjustment system are specifications, not evidence of a particular level of tuning stability or preferred feel.
Pickups and controls

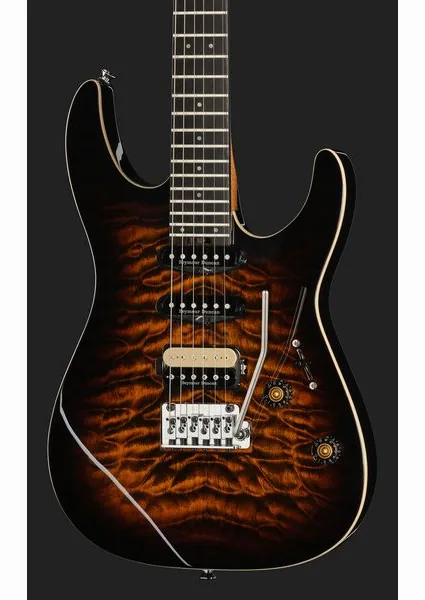

The HSS arrangement combines a Seymour Duncan Full Shred TB-10 humbucker at the bridge with two Seymour Duncan SSL-6 single-coil pickups. The middle pickup is an SSL-6, while the neck position uses an SSL-6 RWRP, meaning reverse-wound, reverse-polarity. A five-way blade switch selects pickup combinations, and a two-position mini-toggle changes the wiring mode. The listed settings are series when the toggle is down and all pickups in parallel when it is up.
Volume is handled by a 500K EVH Bourns low-friction speed knob. The tone control is a no-load design. These control descriptions identify the hardware and available switching options, but the supplied information does not specify the exact output level or tonal response for each switch position. Players should check the wiring diagram or test the instrument directly if a particular combination is essential to their setup.
Tremolo and hardware
The recessed Wilkinson WVS130-2P tremolo has two pivot points and locking saddles. Charvel also lists die-cast locking tuning machines, chrome hardware, and a Strat-style input jack on the back of the body. Together, these are concrete hardware choices relevant to string changes and tremolo setup. The specifications do not state whether the tremolo is designed for a particular range of travel, or how it behaves under aggressive use, so those points cannot be confirmed from the listing alone.
The guitar ships with nickel-plated steel strings in a.009,.042 gauge set. A deluxe gig bag is included; a hard case is not. The item number is 647985, and the sales unit is one guitar. These package details help distinguish what is included from what a buyer may need to purchase separately.
Verdict based on the specifications
The DK24 HSS QM ATE presents a detailed, performance-focused specification sheet: an HSS pickup set from Seymour Duncan, a selectable series mode, stainless steel frets, a compound-radius ebony fingerboard, and a recessed two-point tremolo with locking saddles. Its construction and controls are described with enough precision to guide a comparison against other guitars in this category. However, the listing leaves some practical questions unanswered, including the neck profile, total weight, and measured performance of the switching and tremolo systems.
At the listed price of 1222, the available information supports a feature-based assessment, not a judgment about sound, comfort, build consistency, or value in use. There are no customer reviews to add firsthand evidence. Buyers should try the instrument if possible and confirm any details not covered by the specifications before ordering.
Shipping and duties
The retailer ships from its warehouse in Germany. Prices are shown in US dollars and do not include import duties. Orders under roughly $800 usually clear US customs without duty; above that, a duty of a few percent may be collected on delivery. 30-day money-back and a 3-year warranty apply.
Scores by area
Where it shines, where it stumbles
What convinced me
- Seymour Duncan HSS pickups, with a series/parallel mini-toggle for additional wiring options.
- Ebony fingerboard, 24 jumbo stainless steel frets, rolled edges, and a compound 12-to-16-inch radius.
- Wilkinson recessed tremolo with locking saddles, locking tuners, and an included deluxe gig bag.
What bugged me
- The provided specifications do not state the guitar's weight.
- No hard case is included.
Is it the right one for you?
Good pick if
A strong fit for players seeking an HSS guitar with flexible pickup wiring, a 24-fret neck, and locking tremolo hardware. Its features will appeal to lead players and guitarists who switch between single-coil and humbucker sounds.Look elsewhere if
Less suitable for buyers who require an included hard case or need a stated weight before purchasing. Players seeking a simpler control layout may not need its extra wiring option.Suggested level: Intermediate
Specifications
- Color
- Amber Tiger Eye
- Body
- Linden
- Top
- Quilted Maple
- Neck
- Roasted Maple
- Fretboard
- Ebony
- Frets
- 24
- Scale
- 648 mm
- Pickups
- HSS
- Tremolo
- Wilkinson
- Incl. bag
- Yes
- Including case
- No
Up close
Watch and listen
Before you decide
Questions players ask
What pickup configuration does this guitar have?
It has a Seymour Duncan Full Shred TB-10 bridge humbucker and two SSL-6 single-coil pickups, including a reverse-wound, reverse-polarity neck pickup.
What does the mini-toggle switch do?
The two-way mini-toggle selects series wiring in the down position and parallel wiring in the up position.
Is this guitar suitable for bending and fast lead playing?
Its 24 jumbo stainless steel frets and compound 12-to-16-inch fingerboard radius are features suited to bends and fast lead work.
Does it include a case?
A deluxe gig bag is included. The specifications state that a hard case is not included.
What tremolo and tuning hardware does it use?
It has a recessed Wilkinson WVS130-2P tremolo with locking saddles and Charvel die-cast locking tuners.
The last word from the bench
This Charvel combines a Full Shred bridge humbucker with two SSL-6 single-coil pickups and a mini-toggle for series or parallel operation. Its compound-radius ebony fingerboard, stainless steel frets, and locking hardware are well suited to demanding playing styles. The included gig bag is useful, though a hard case is not part of the package. No customer reviews were provided, so buyer feedback cannot be assessed.
