Electro Harmonix Voice Box

Overview: Electro Harmonix Voice Box Vocal Harmonizer and Vocoder

The Electro Harmonix Voice Box is a compact pedal designed for musicians who want access to vocal harmonies and vocoder effects in real time. With an official street price around $195 and a footprint of 42 x 152 x 119 mm, it's built for pedalboard integration and live performance. Incoming signals can be routed through standard 1/4-inch jacks or balanced XLR, and the unit offers both phantom power and mic gain control via a dedicated mini-toggle. The supplied 9V DC adapter is pedalboard-friendly.

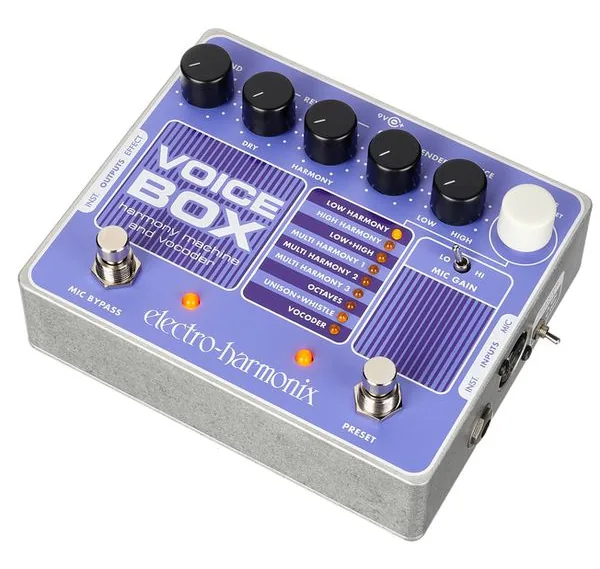

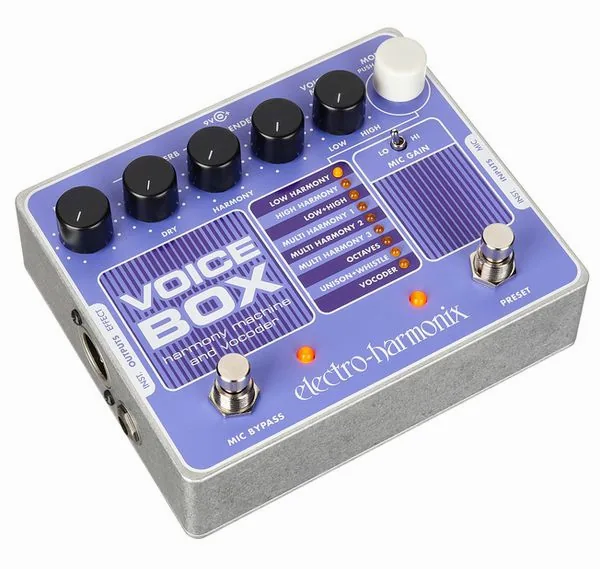

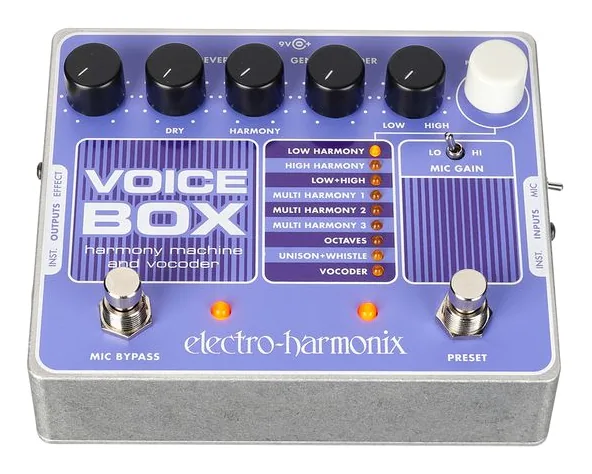

Feature Set and Controls

• Effect Types: Harmony generator and vocoder (not a classic talk box, but designed for vocalists).
• Main Controls: Six rotary knobs: Blend, Dry, Harmony, Gender Bender (formant shift), Voice Mix, and Fashion (mode selector).
• Modes: 9 preset effect circuits: Low Harmony, High Harmony, Low + High, three Multi Harmony variations, Octaves, Unison + Whistle, and Vocoder.
• Inputs/Outputs: 1/4-inch jack and XLR for input and output, both supporting typical stage and studio workflows.
• Mic Bypass and Preset Memory: Instant mic bypass switch. You can save settings to a mode by holding the preset button (no custom preset order, but easy recall within each mode).

Formant shifting with the Gender Bender enables morphing the perceived gender of a vocal, from masculine to feminine, without changing pitch, a unique strength over simple pitch shifters. The Blend and Dry knobs allow you to set the amount of original (unaltered) vocal versus harmony or vocoder signal in your output mix.

Sound: Harmony and Vocoder Quality

The Voice Box tracks guitar chords or keyboard input, generating harmonies that match your accompaniment. Accurate tracking depends on clean, well-tuned instruments and clear singing. Simple strummed chords work best. Once you find the right balance of dry and wet settings, the harmonies can sound surprisingly organic, subtle for folk and pop, or over-the-top for experimental uses (think Ween or 90s alt-pop sounds).

Three Multi Harmony modes offer instant "classic group vocal" textures. Some users compare the Multi Harmony 1 mode to having instant Beach Boys-style backgrounds. Low and high harmonies let you add single voices an octave above or below, while octave modes fatten up leads for atmospheric or synth-pop arrangements.

The vocoder, while not an analog classic, provides authentic robotic or "singing instrument" effects. Using a guitar or synthesizer as the modulation source, you can achieve convincing "talking instrument" results. Sonic detail depends on your modulator: synth parts or clean, sustained guitar chords generally work better than bass signals or percussive, heavily affected sounds. While the vocoder doesn't let you assign a reference note when no modulator is present (an often-requested tweak), it stands up well compared to other pedal solutions at this price.

Formant Shift: More Than Just Pitch

The Gender Bender's formant control proves genuinely useful: it lets you shape the vocal character (the frequency "colors" that make a singer sound male or female, bright or dark) without affecting musical pitch. This means your voice can maintain its melody but appear to shift "gender," which gives flexibility in layering or theatrical contexts. Many users set the Gender Bender subtly for soul or pop nuance, and more extreme for creative electronic or hyper-stylized arrangements.

Workflow: Live and Studio Operation

User feedback consistently highlights the practical strengths and quirks of the Voice Box interface. Adjusting and saving new settings is quick, rotate knobs, hold the white preset button, and store to the active mode. Recall is fast, but changing modes mid-song requires advance planning since there's no bank or patch order customization. All controls are smooth rotary pots, though in some modes control assignments change, so a quick read of the manual (about 15 minutes investment) pays off.

Mic gain staging, especially with phantom power, is robust. The output remains quiet and free from unwanted noise or interference if used in the right spot in a pedal chain. Reverb is always present to some degree and can sometimes be stronger than necessary for dry studio or group live mixes. Since you can't turn it fully off on all modes, it's best to experiment and set up per environment.

Physically, the pedal is built in the rugged fashion users expect from Electro Harmonix. The small format means some may wish for more flexible I/O placement for crowded pedalboards, but this is not a dealbreaker.

Real-World Use Cases and Limitations

• Vocal Doubling and Layering: Adds realistic (if sometimes "colored") background parts to live solo or duo sets.
• Studio Processing: Compatible with DAW recording via XLR outputs, preserves clarity for layering.
• Instrument Requirements: For best harmony tracking, insert the pedal before other effects and use clean, in-tune instruments. Bass input can confuse the harmonizer, but works for vocoder textures.
• Preset Management: Only one memory slot per mode. No custom ordering means you have to plan your set and mode switches.
• Effect Range: No built-in delay or multi-effects. Strictly harmonies, vocoding, gender/formant tweaking, and basic reverb. No pitch correction or scale selection options.

For live guitar-vocalists or synth artists, the Voice Box brings instant variance to both lead and backing vocals without plugin headaches or expensive rack gear. Some competitive products allow more fine-tuning or effect layering but demand longer setup and menu diving, whereas the Electro Harmonix excels in simplicity and durability.

Conclusion: Who Is the Voice Box For?

The Voice Box is best for musicians needing quick, effective vocal harmony and vocoder effects, especially those who want to keep their setup simple and reliable. Its strengths are organic harmony expansion (especially for single performers), robust instrument tracking, and creative voice morphing, all with a fast learning curve. The core harmonies and vocoder are the standouts, even if some wish for deeper preset management or scale-specific harmony. Build quality is consistently praised.

If your goal is to expand your live sound palette or add unique vocal textures without resorting to laptops or rack modules, this pedal is a smart, value-conscious investment for the gigging or recording musician.
