Electro Harmonix Super Switcher: Real-World Test for Modern Pedalboards

The Electro Harmonix Super Switcher is a floor-based effects pedal looper and controller targeting musicians with complex pedalboard needs. At $389, it offers a significant suite of features for both analog and digital setups, including full MIDI integration, pre/post amp routing, and performance-oriented extras such as foot-activatable gain boost and a comprehensive LED display. I tested the Super Switcher in several gig and rehearsal environments with various pedal configurations and amp types to evaluate flexibility, build quality, and sound integrity.

Key Features in Practical Use

• 8 effects loops: 6 for mono pedals, plus 2 for stereo use, with dedicated routing
• MIDI input/output for program changes and control changes per preset
• 128 storable presets, accessible by footswitch for rapid switching
• Tap tempo footswitch (syncs with MIDI clock and sends tap signals to other effects)
• Footswitchable clean gain boost (assignable per preset or globally)
• Integrated buffer and true bypass switching circuit
• Direct tuner output with muting function
• Bank and loop state LED indicators for easy preset management

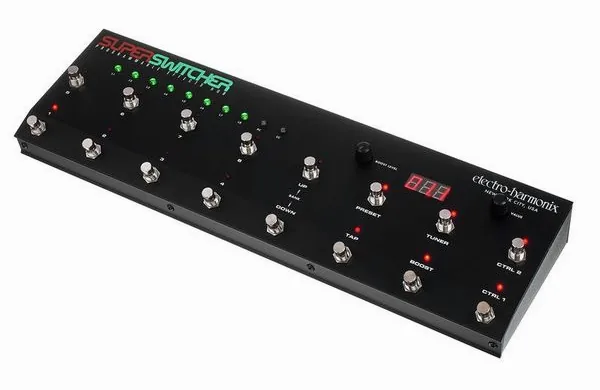

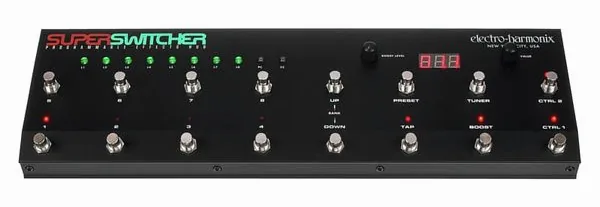

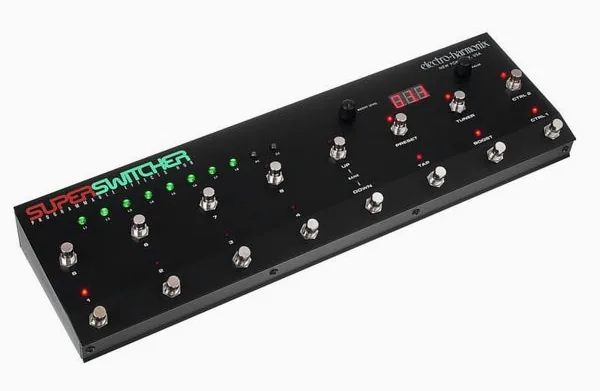

In terms of construction, every unit I examined had a heavy-duty metal housing and robust switchgear. The pedal's size, nearly half a meter wide (19" x 6" x 2.5"), demands significant real estate, so it is best suited for larger pedalboards. This extra width pays off, though, when you need instant access to 8 loops plus global functions like tap tempo, boost, and tuner mute, all without confusing layouts or menu-diving mid-song.

Setup, Programming, and Everyday Flexibility

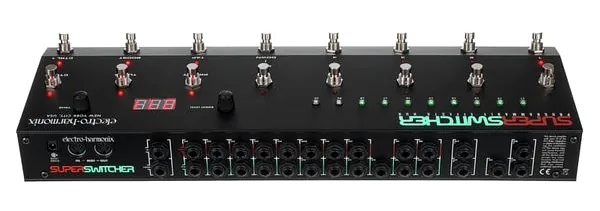

First-time configuration is straightforward. All jacks are standard 1/4" for input, output (summing mono/stereo as needed), loop sends/returns, and tuner out. There is also a dedicated insert loop point between loops 5 and 6, which is ideal for integrating an amplifier's effects loop or a permanently engaged processor. Since the send/return at this point is always active when cables are connected, you can add a fixed-position volume pedal or place a rack multieffect seamlessly in your signal path.

Preset programming is especially intuitive. Select a bank (displayed numerically), use one of the eight footswitches to choose a preset slot, and toggle which loops are active on the fly, green LEDs clearly show current status. Saving is instant: just select another preset and the previous configuration is stored automatically. This means fast, frustration-free changes during rehearsal or soundcheck. With 16 banks of 8 presets each, you have enough slots to cover multiple setlists or detailed soundscapes for complex live shows.

Audio Integrity and Clean Boost Performance

The Super Switcher operates in true bypass but also provides a switchable buffer; this is controlled globally from the settings, not per preset. Some users appreciated the buffer for offsetting high-frequency loss in large setups, though a few noted minor tonal veil or slight sound coloration when engaging the buffer, which is consistent with the design of similar circuits. The footswitchable clean boost is available on both channels and can be activated at will or programmed into any preset, ideal for highlighting solos or leveling output across different amps. Its tonal character raises overall output cleanly, but some noticed a subtle emphasis on certain frequencies when pushed, there is no frequency tweak on the boost, so its voice is fixed. Whether this works for your rig will depend on your amp and pedal chain; placing the Super Switcher after the preamp transforms the boost into a transparent master volume, while boosting the preamp itself may alter tone more noticeably.

MIDI Control, Tap Tempo, and Real-World Integration

MIDI implementation is basic but robust: up to one program change and one control change can be sent per preset slot, enabling integration with compatible pedals, multi-effects, or rack gear. The tap tempo footswitch can synchronize compatible delay or modulation effects, either directly or through MIDI clock, and you may choose global BPM or store tempo per preset. However, several users pointed out a significant quirk: stepping on tap tempo automatically overwrites the stored BPM for the preset, even if you intended to tap just for a single song. This could frustrate players who need precise, pre-set tempos stored across multiple setlists. The LED display, otherwise crisp in most environments, can become hard to read in direct sunlight or stage wash, a common issue for many pedals, but worth noting if outdoor gigs are your routine.

Build and Reliability

On durability, the Super Switcher is praised for its heavy metal chassis and sturdy switches. Most users reported consistent, trouble-free performance even after years of heavy use. However, a minority experienced issues with shipping damage or faulty footswitches on arrival; while this seems to be a logistics rather than design fault, it is worth double-checking your unit immediately after purchase. The overall tactile feel is solid, and programming remains intuitive even after months of use.

Limitations and Who Should Consider It

• Large footprint may not suit compact boards
• Cannot change the order of effects loops internally (all routing is series)
• No support for preset naming, only numerical IDs
• MIDI limit of 1 program and 1 control change per preset
• Boost and buffer have fixed tonal signatures

If you need full digital control of a considerable pedal collection, especially with MIDI devices, the Super Switcher excels for the price. For heavily digital setups requiring more advanced MIDI recall, tail spillover (for delay/reverb), or dynamic reordering of effects, more expensive solutions exist. But for gigging musicians prioritizing easy programming, high reliability, wide routing, and quick changes, the Electro Harmonix Super Switcher delivers a refined balance of professional control and plug-and-play access.
