Electro Harmonix Percolator Overdrive/Fuzz

Overview of the Electro Harmonix Percolator Overdrive/Fuzz

With a reputation for crafting characterful pedals, Electro Harmonix launches the Percolator Overdrive/Fuzz at a modest $95. This box revives a distinctive 1970s Milwaukee circuit, offering a full palette from mild drive to chaotic fuzz. Aimed at players seeking dynamic touch sensitivity and quirky character in one enclosure, the Percolator arrives equipped to stand out, even in EHX's crowded catalog.

Design and Controls

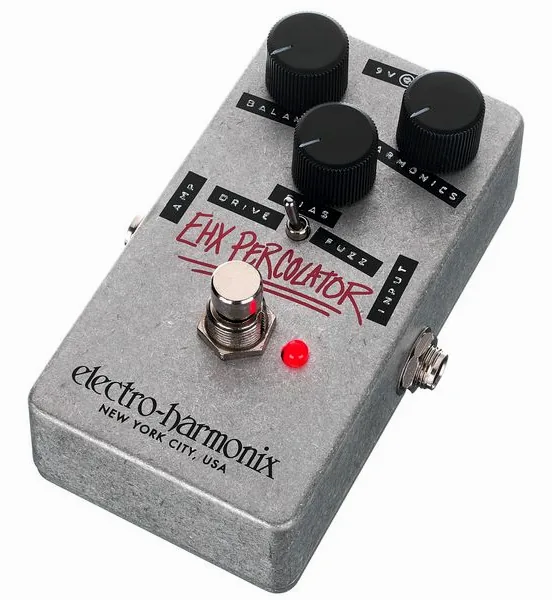

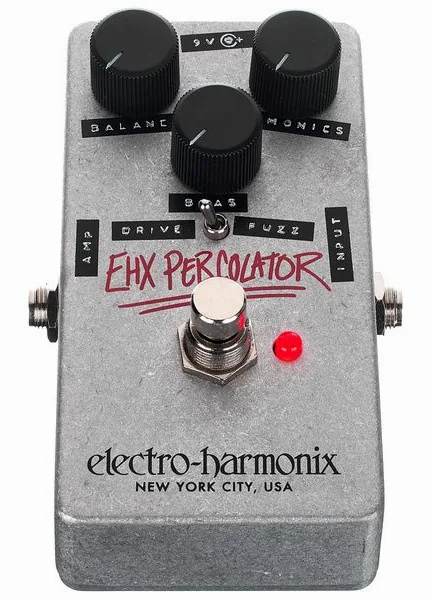

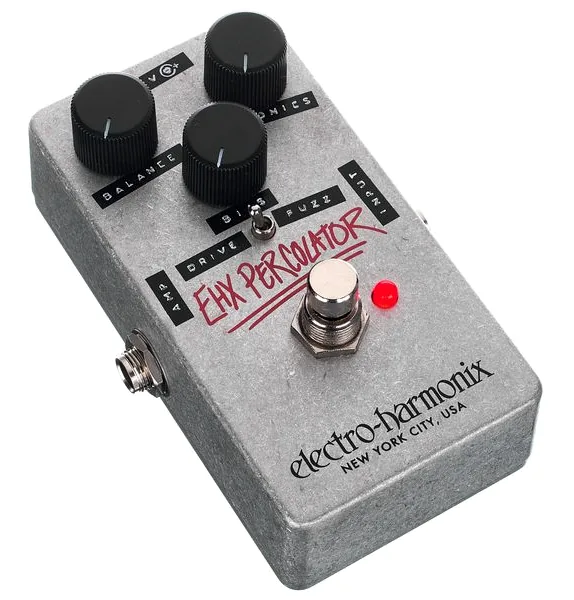

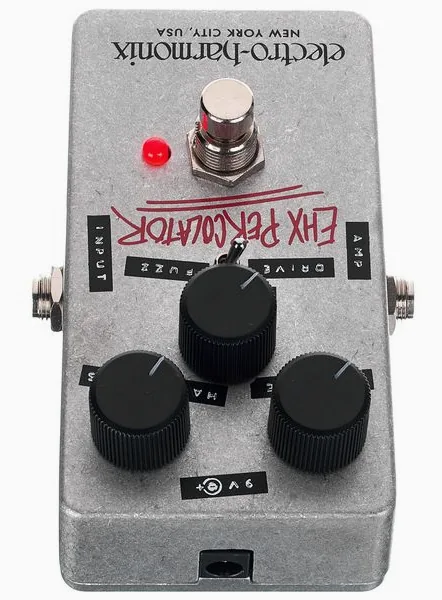

The pedal's chassis is compact, measuring 2.75" wide, 4.5" deep, and just over 2" high, fitting easily on a packed pedalboard. It runs off a standard 9-volt battery or power supply (barrel tip negative, not included), with conventional 1/4" input and output jacks. The three main knobs, Harmonics, Balance, and Bias, shape the core sound, while a toggle switch steps between Drive and Fuzz modes. A footswitch toggles between true bypass and effect-activated, with a clear status LED for stage use.

• Harmonics: Controls gain and harmonic emphasis
• Balance: Governs output level, allowing fine control over unity gain or boost
• Bias: Alters the response and texture, not just intensity, key to its versatility
• Switch: Instantly flips between overdrive and fuzz voicings

Practical quality-of-life touches include internal trim for increased bass and gain tailoring, according to user feedback. Users describe this as a handy feature for dialing in more low-end response, useful for both guitar and synthesizer applications.

70s Legacy Circuit With Modern Flexibility

The circuit's roots in a 1970s Milwaukee audio workshop show in its sonic DNA. The Percolator's personality centers on asymmetrical clipping, a process that enriches even-order harmonics. This results in sweet, touch-sensitive distortion at lower settings and in-your-face fuzz at extremes. Many pedals claim "amp-like" response, but here, players specifically report the feel beneath your hands as sensitive and dynamic, accentuating nuances in picking strength and guitar volume.

Unlike typical fuzzes that quickly lose definition into a clean tube amp, the Percolator's detail and character stay intact, making it notably usable in contexts where most fuzzy boxes drop into mush. Both guitarists and synth players highlight this interactive, stable feel, which rewards expressive technique and creative tweaking.

Sound: From Warm Grit to Raw Fuzz

• Drive (Overdrive) Mode: Starts off as subtle coloration, progressing to edgy, tube-style crunch reminiscent of a classic "screamer" pedal but with its own compressed, harmonically rich contour. The Harmonics knob in particular lets you dial from almost clean boost up through bluesy breakup, without overwhelming the signal's clarity.
• Fuzz Mode: Engaging the Fuzz switch, especially with Harmonics and Bias advanced, opens a much wilder territory: aggressive, velcro-like textures, pseudo-octave harmonics, and a broken transistor flavor. It produces characteristic gated and sputtering effects as the Bias is manipulated, including octave-down overtones and rich harmonic overdrive. The Bias control stands out as transformative, not merely more or less gain, but changing the voice's texture and interaction style altogether.

Field reviews consistently underline how musically responsive the Percolator is to touch and dynamics. Pick softly, and you get edge-of-breakup bite; dig in, and the circuit yields snarling, compressed fuzz. Several players mention lower-octave artifacts and a "gated" sound when Bias is cranked, ideal for noise, alternative, and modern blues contexts. The pedal rises to heavy metal solos with ease thanks to pronounced sustain and aggressive character.

Special Features and Versatility

Uniquely, there is a hidden internal trim pot accessible inside the housing. Turning this can add bass, shaping the Percolator for thicker riffs or making it work hand-in-glove with bass guitar and synthesizers. This expands the pedal's usefulness well beyond the average overdrive/fuzz box and caters to players who want a bolder, more saturated wall of sound.

In practice, users found the pedal far surpassed "clone" expectations or the limits of its historical inspiration. With powerful output on tap and a broad range of gain and textures, it covers styles from warm blues crunch to brash, experimental noise.

Final Thoughts

The Electro Harmonix Percolator Overdrive/Fuzz isn't a vanilla vintage reissue. Instead, it's a highly interactive, expressive tool for sculpting saturated tones that respond directly to your hands. The circuit's 1970s origins, enhanced by modern tweaks like the internal trim and expanded Bias control, deliver a pedal that serves up everything from subtle overdrive to searing fuzz without sacrificing nuance. At $95, its flexibility and unique flavor will suit anyone from classic rock players to experimenters demanding cutting-edge textures, proof that sometimes, old designs still bring something entirely new to the table.
