Blackstar HT-20RH MKIII

Blackstar HT-20RH MKIII: Testing a Modern Tube Head

The Blackstar HT-20RH MKIII, released in April 2024, enters the market for compact tube amplifier heads aimed at versatile stage and studio use. Priced at 666, it offers 20 watts of tube power, channel-switching, and modern I/O. Here is a technical hands-on look, focusing on circuit design, control layout, and relevance for rock and blues guitarists demanding tube tone and connectivity.

Circuit Design: All-Tube Path and Power Stage Choices

The HT-20RH MKIII is an all-tube design. The preamplifier section uses two ECC83 (known for high gain and clarity), while the output is powered by a pair of EL84 tubes, a format that delivers traditional midrange warmth and natural compression, typical in British-voiced amps. This topology is ideal for players seeking dynamic clean sounds that transition naturally into overdrive, as well as harmonically rich distortion when pushed.

With two distinct channels, clean and overdrive, the layout reflects a flexible approach. Channel switching allows on-the-fly tonal changes, and each channel gains further flexibility with two unique "voice" options, altering gain structure and EQ bias for classic or modern sound profiles within each mode. This design targets guitarists who need more than one core voicing available during performances.

Control Surface: Detailed Tone Shaping and Onboard Effects

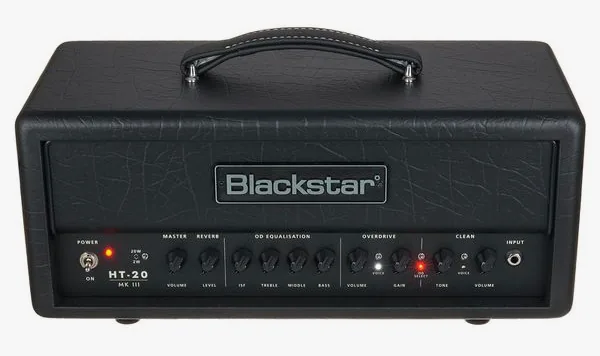

Controls comprise Clean Volume, Clean Tone, Overdrive Gain, Overdrive Volume, Bass, Middle, Treble, ISF (Infinite Shape Feature), Reverb Level, and Master. The Clean channel offers traditional single-knob tone shaping, while the Overdrive channel receives dedicated gain and tone circuit manipulation for more granular adjustment. The three-band EQ interacts with the ISF control, Blackstar's signature feature, which morphs the overall tone stack response from American to British-style EQ contours.

Onboard digital reverb is included with dedicated level control. In tests across both channels, the reverb is subtle, largely transparent, and avoids excessive coloration even at higher settings, a useful addition for live or direct recording use.

Connectivity and Stage/Studio Usability

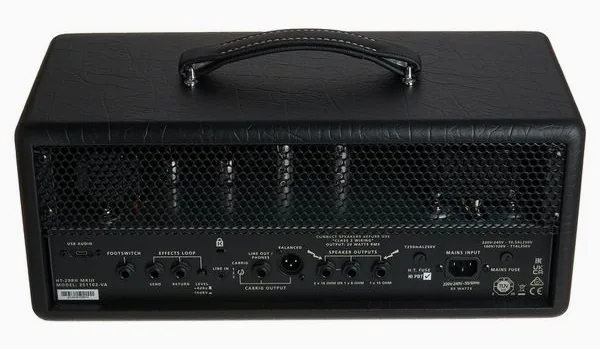

The HT-20RH MKIII stands out for its modern approach to connections. Out back, the amplifier features three speaker outputs (supporting 8-16 ohm loads), an XLR output for direct-to-mixer/recording, a USB C interface for direct audio capture, and line-level output with headphone compatibility. There is also an effects loop, essential for integrating time-based or modulation pedals post-preamp, a strong point for users relying on external effects for their tones.

The included footswitch provides channel switching and quick access to the alternate voice function, a must for rapid tonal transitions during live sets. There is also a line input for jamming along with external audio sources. Every output is designed for silent practice, direct stage feeds, or direct recording, removing barriers between home, studio, and venue setups.

Power Reduction and Pedal Compatibility

One often-requested feature among modern guitarists is a useful power attenuation circuit. The HT-20RH MKIII includes a 2-watt mode, enabling the tube power section to saturate at lower volumes. This feature is particularly relevant for home players or situations where stage volume is restricted, allowing the full dynamic range and harmonic complexity of tube compression without ear-splitting sound pressure levels.

Practical tests confirm the head's compatibility with a range of drive and modulation pedals. It responds dynamically to both front-end boosts and time-based processors in the effects loop. The clean channel's headroom ensures external gain pedals retain their character, while the overdrive channel stacks naturally without muddiness.

Sound Qualities: Rock and Blues Focus

Sonically, the amplifier occupies a territory well-suited for classic and contemporary rock and blues. The clean channel has an articulate top end, remaining uncluttered even when pushed, and the overdrive channel delivers sufficient saturation for everything from blues breakup to more pronounced drive without excessive harshness. The two voice options on both channels effectively double the range of accessible sounds. In the studio, these voices help dial in tones that suit specific guitars or mixes without additional outboard EQ.

Build, Practical Use, and Value

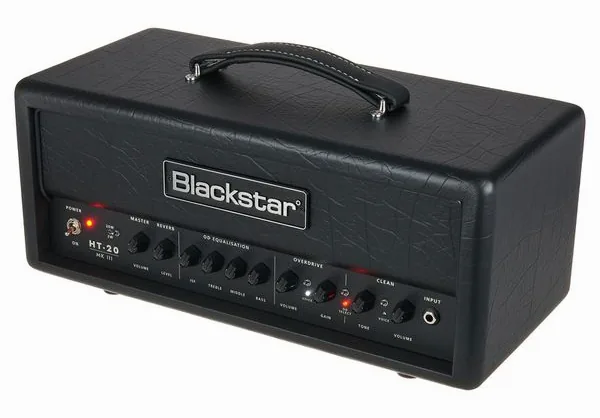

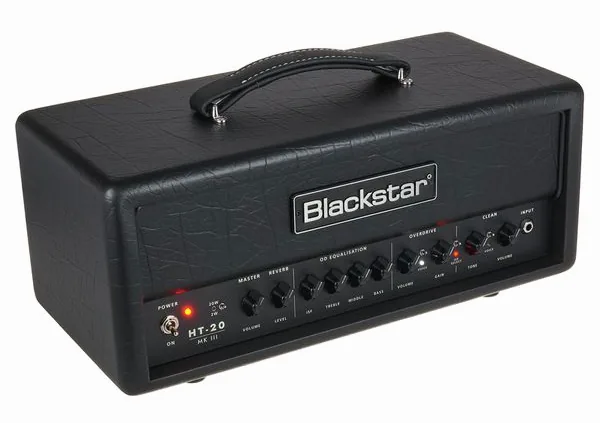

The head unit, finished in black, feels sturdy and compact. All controls are clearly labeled and set on a straightforward front panel. At 20 watts, this amp is optimal for mic'd club gigs, rehearsal rooms, and serious home practice. The direct output and USB C also make it viable for home studios or silent recording scenarios.

In summary, the Blackstar HT-20RH MKIII provides a solid tube platform for guitarists who want modern features without trading away genuine tube tone. With two footswitchable channels, flexible power scaling, and professional-grade connectivity, it suits a variety of demanding scenarios from stage to home recording setups.

• 20-watt all-tube amp with EL84 output tubes
• Clean and overdrive channels, both with two voice modes
• Extensive connectivity: XLR, USB C, effects loop, multiple speaker outputs
• Onboard power reduction to 2 watts for bedroom use
• Responsive to external pedals and effects
• Balanced sound for rock, blues and versatile stage situations
