Yamaha Revstar RSS20 Swift Blue

Yamaha Revstar RSS20 Swift Blue: Technical Overview

The Yamaha Revstar RSS20 in Swift Blue positions itself in the mid-range electric guitar segment, blending premium materials and distinct electronics at a competitive $709 price point. Introduced in March 2022, this model comes from Yamaha's Standard Series and is notable for its chambered mahogany body with a maple top, a set-in three-piece mahogany neck with carbon reinforcement, and a rosewood fingerboard. The scale length is a comfortable 24.76 inches (629mm), with a 12-inch radius, 41.9mm nut width, and 22 jumbo stainless steel frets. These specs underscore Yamaha's focus on playability and tuning stability, all complemented by a visually striking Swift Blue gloss finish and an included padded gig bag.

Build Quality and Hardware

Out of the box, the Revstar RSS20 shows Yamaha's attention to finishing details. The paintwork is consistently praised as flawless, without runs or manufacturer residue. Fret edges are well-dressed, and the fretboard inlays are seated seamlessly. The hardware set includes a Tune-O-Matic bridge with a stop bar tailpiece, die-cast sealed tuners with vintage-style tulip-shaped buttons, and chrome hardware throughout. Many users report the electronics, mounted on a three-ply cream pickguard, operate noiselessly, ensuring clean signal transmission. Factory setup can be hit or miss; while some find ideal action and intonation, others mention high bridge or insufficient nut slot depth, requiring a professional setup for optimal performance. Once set up correctly, tuning stability and fretwork both receive high marks.

Neck and Playability

The three-piece mahogany neck, reinforced with carbon, has a slim but rounded profile somewhat akin to a late-50s Les Paul, but with a narrower nut than Yamaha's SG line. The back sports a satin finish, gliding easily during position shifts, and the medium-thin neck provides easy access while still feeling substantial. Body ergonomics are a highlight: the chambered construction, rear body contour, and forearm bevel contribute to lower weight and improved comfort, without the guitar feeling overly light or insubstantial. Players spanning jazz, blues, soul, and pop find the RSS20's playability and balance excellent for both seated and standing playing.

Electronics and Versatility

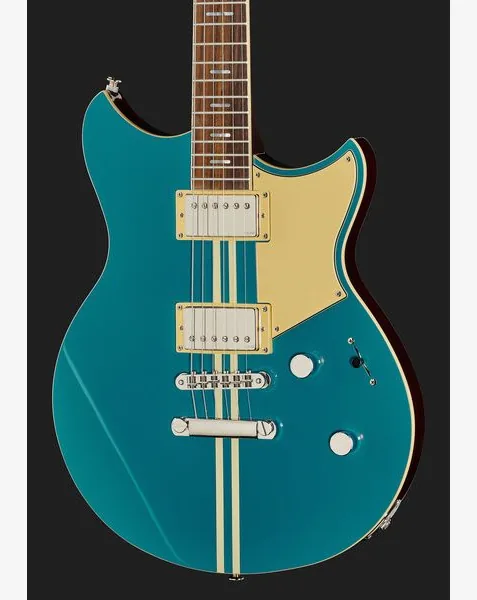

Central to the Revstar RSS20's appeal is its custom wiring and pickup system. Equipped with a pair of VH5 humbucking pickups built from AlNiCo V magnets, the guitar features a master volume, a master tone with push/pull passive "Focus" boost mode, and an uncommonly versatile five-way pickup selector. The standard bridge/neck/both positions are joined by two intermediary settings that employ phase offsets between the pickups rather than traditional coil splits.

• Five-way selector: Delivers three standard humbucker voices and two additional phase-shifted sounds. The intermediary positions produce a sharper, slightly gritty tone reminiscent of single-coil intermediate settings, yet hum-free and without the usual volume drop found in split-coil designs. These settings add a mild rawness, making the guitar even more responsive to amp and pedal inputs, and expand its usable tones for funk, clean picking, or subtle crunch.
• Focus mode (push/pull tone pot): Engages a passive boost circuit. This thickens the midrange and subtly tames treble, resulting in a punchier, slightly louder output ideal for overdrive or lead work. Notably, it also creates a psychological "forwardness" in clean passages, bringing the guitar's voice closer to the listener. Some purists might wish for a coil split for pure single-coil twang, but the Focus mode gives a unique character all its own.

Users consistently praise both the clarity of the clean sounds and the capacity for punchier tones, with the Revstar taking effects pedals especially well. There's no discernible electronic buzz, and the controls are smooth with enough resistance to avoid accidental tweaks during performance.

Sound and Practical Impressions

Acoustically, the chambered body is surprisingly resonant, offering more "alive" feel than many semi-hollow bodies and even some full solids. Direct comparisons to classic instruments, including vintage-inspired models and big-brand competitors, find the RSS20 holding its own in clarity, sustain, and dynamic response. The stainless steel frets contribute to longevity and enhanced articulation.
Plugged in, the pickup system covers a wide spectrum: crystalline cleans, muscular drives, thick neck warmth, and biting bridge tones. The phase-offset positions provide a notched, scooped flavor without mud or excessive harshness, distinguishing it from simpler dual-humbucker layouts. With quality strings out of the box (Elixir Nanoweb.010,.046), the tone is full-bodied and balanced, making the instrument suitable for a wide range of genres.

Accessories and Value

The supplied gig bag provides basic protection and well-padded portability, though frequent giggers will want more robust transport. This is a common trade-off in the price point, yet the guitar itself is widely viewed as punching above its class in material and build value. Compared to competitors, often at double the cost, the RSS20 stands out as an all-purpose instrument, recommended for players seeking flexibility, reliability, and pro-level features without boutique pricing.

Final Verdict

The Yamaha Revstar RSS20 Swift Blue offers a compelling mixture of workmanship, versatile wiring, and ergonomic design. Setup quality may vary, so buyers should consider a pro setup service on arrival. Once dialed in, the playability, finish, and dynamic tonal range make this a player's instrument for studio and stage. Its strengths lie in its tonal diversity, clean build, and above-average component quality. For anyone seeking a flexible, modern alternative to classic double-humbucker guitars, the RSS20 is a serious contender that deserves its growing reputation.
