PRS Custom 24 CH

PRS Custom 24 CH: technical overview

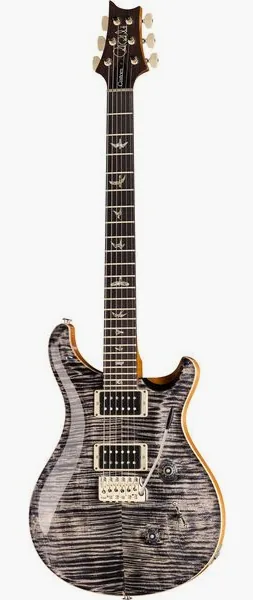

The PRS Custom 24 CH is a U.S.-made, 24-fret electric guitar with a charcoal finish, a mahogany body, and a maple top. Its listed price is 5,222, with no currency specified in the supplied data. The model has been available since June 2023, and its item number is 539603. These details identify the instrument and its listed configuration, but the available specifications do not include customer reviews or independent measurements.

The body follows an ST-style outline, while the 635 mm scale places it in the shorter of the two common electric-guitar scale lengths. The specification sheet lists a rosewood fingerboard, 24 frets, and a mahogany neck described in the detailed section as flamed mahogany. A flamed maple top is also specified. The broad materials list simply says maple for the top and mahogany for the neck, so the more specific descriptions appear to clarify their figured appearance rather than indicate different components.

Neck, fingerboard, and construction

The neck profile is identified as Pattern Thin. In practical terms, the name indicates a relatively slim neck shape, though the supplied data gives no thickness measurements, nut width, or fret dimensions to quantify it. The 24-fret layout provides two octaves per string before the notes repeat, while the 635 mm scale is a concrete fit and string-tension reference for comparing the guitar with other instruments.

Mother-of-pearl bird inlays mark the rosewood fingerboard. The neck and body are finished in nitrocellulose lacquer, and the hardware is described as hybrid. No further details explain which components make up that hardware specification. The Charcoal color is the only listed finish color; there is no information on whether the appearance varies between individual instruments.

Pickups and controls

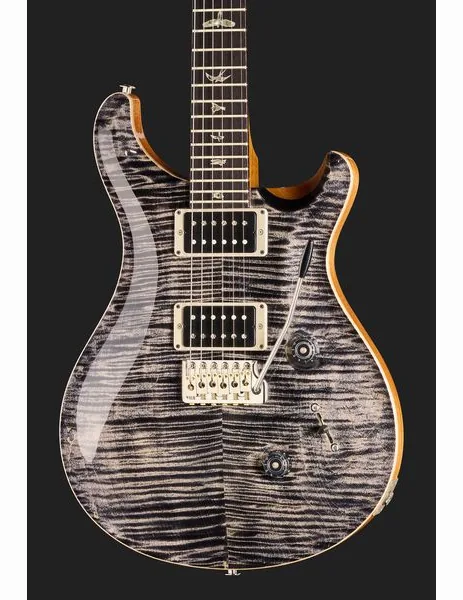

The Custom 24 CH uses two uncovered 85/15 humbucking pickups. The HH designation in the listing refers to this two-humbucker arrangement. Each pickup is specified by model family, but the data does not provide resistance, magnet type, output measurements, or coil-splitting options. Those omissions matter when comparing pickup voicing or predicting how the guitar will respond to a particular amplifier and effects chain.

Control hardware consists of one volume control, one tone control, and a five-way pickup switch. That switch gives the player five selectable pickup configurations, but the supplied information does not spell out the wiring for each position. It would be premature to claim particular split-coil combinations or other switching functions without a wiring diagram. The single volume and tone controls keep the listed control layout straightforward, with the switch handling pickup selection.

Tremolo and tuning hardware

A PRS Gen III tremolo is specified, along with PRS Phase III locking tuning machines. The broader specification also describes the tremolo as PRS-style. The locking machines identify a specific tuning-hardware type, but no information is provided about tuning stability, setup, string-changing speed, or the tremolo's range of movement. Those are performance questions that would require hands-on evaluation rather than a parts list.

The instrument is listed as including a PRS case. However, the general listing fields also say that a bag is included and that a case is not included. Those package details conflict. Buyers should confirm with the seller whether the guitar ships with the PRS case, a bag, or another arrangement before placing an order.

What the specifications establish

On paper, the PRS Custom 24 CH combines a mahogany body and neck with a flamed maple top, a rosewood fingerboard, dual 85/15 humbuckers, a five-way switch, and a Gen III tremolo. The stated 24-fret layout, 635 mm scale, locking tuning machines, and nitrocellulose lacquer provide useful points of comparison when assessing fit and feature set.

The supplied data does not establish the guitar's weight, neck measurements, fret material, pickup wiring details, setup condition, or measured acoustic and amplified performance. No customer feedback is available, so this assessment makes no claims about playability, tone, reliability, or build quality beyond the listed materials and hardware. For a purchase decision, the conflicting case information and the unspecified currency for the listed price are worth resolving with the seller.
