LSL XT4DX Curly Mango 5A

LSL XT4DX Curly Mango 5A review

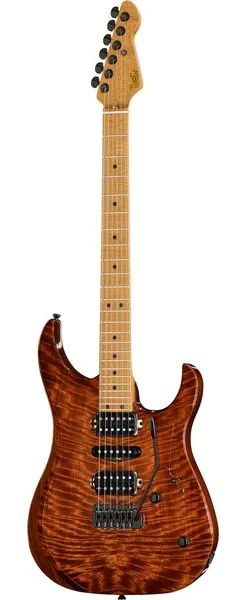

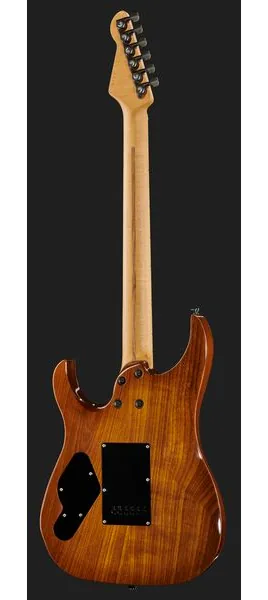

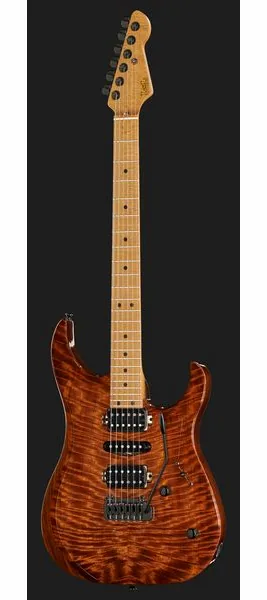

The LSL XT4DX Curly Mango 5A is a U.S.-made electric guitar in LSL's XT4 model line, with a Strat-style body shape and an HSH pickup configuration. Its listed price is 3299, with no currency specified in the supplied product information. The model has been available since March 2023 and carries item number 560004. No customer reviews are available, so this assessment is based strictly on its stated construction and hardware.

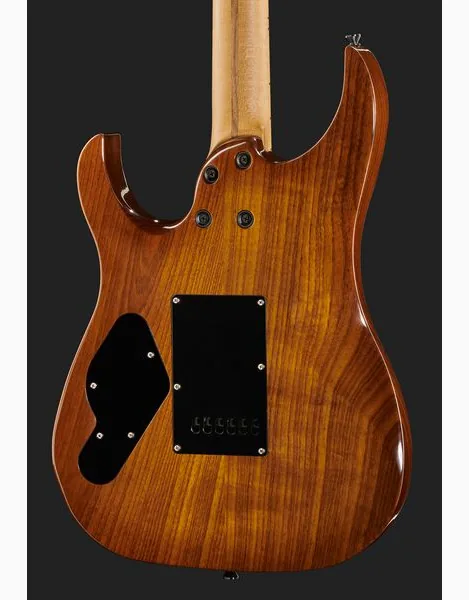

The materials set this guitar apart on paper. The body is ash, topped with AAAAA curly mango, and finished in Natural Clear Gloss. The description identifies the neck and fingerboard as roasted maple. That combination gives a clear account of the wood choices, but it does not establish the guitar's weight, acoustic response, or the appearance of any individual instrument. Those details can vary and are not specified here.

Neck and fingerboard details

The bolt-on neck has a Modern D Slim profile. That name indicates the maker's stated neck shape, but the product data gives no measurements for neck depth or width, so comparisons with other necks should be made cautiously. The roasted maple fingerboard has black dot inlays, a 406 mm (16-inch) radius, and 24 jumbo frets. The published scale length is 648 mm.

A 406 mm radius is a useful point of reference when comparing fingerboard geometry. The fret count and jumbo size are also explicitly listed, but the specifications do not provide fret material, nut width, nut material, or detailed setup information. Buyers who are particular about any of those dimensions should confirm them with the seller before ordering.

Pickups and controls

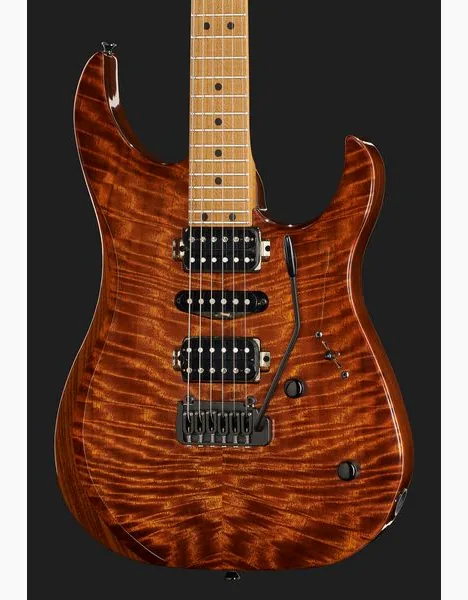

The HSH layout combines two LSL hand-wound high-output PAF humbuckers, positioned at the neck and bridge, with one LSL hand-wound single-coil pickup in the middle. A five-way switch selects pickup combinations, while the control set consists of one volume control and one tone control. The available information does not describe the exact five switch positions or provide pickup output measurements, wiring diagrams, or coil-splitting functions. No coil-split feature should be assumed from the pickup arrangement alone.

This specification points to a guitar designed to offer several pickup combinations within one instrument. The humbucker and single-coil types are identified, but tonal character depends on more than pickup labels. Without electrical measurements or a verified playing assessment, it would be speculative to claim a particular output level, noise performance, or sound profile beyond the stated high-output description for the humbuckers.

Bridge, tuners, and included items

The bridge is a Hipshot two-point tremolo. The guitar also has D'Addario Auto Trim locking tuners, with black hardware. The locking and automatic string-trimming features are part of the tuner description; they do not, by themselves, establish tuning stability under every playing style or tremolo use. The product data does not specify the tremolo's range, setup, or whether any additional locking mechanism is included.

A case is included. The listing separately says that a bag is not included, which distinguishes the supplied case from a gig bag. The sales unit is one piece. No limited-run designation is given, so the supplied information does not identify this model as a limited edition.

What the specifications establish

The XT4DX Curly Mango 5A has a clearly documented core specification: ash body, AAAAA curly mango top, roasted maple bolt-on neck and fingerboard, 24 jumbo frets, a 648 mm scale, HSH pickups, and a two-point tremolo. Its natural clear gloss finish, black hardware, five-way switching, and included case are also listed. This provides a practical starting point for comparing its materials and layout with other guitars in the same price range.

Several buying details remain unreported, including total weight, neck dimensions, pickup resistance, nut specifications, and the exact factory setup. The price is given without a currency, so it should not be converted or compared directly across markets without checking the seller's listing. Since no customer feedback is available, there is no basis here for claims about comfort, workmanship consistency, or performance in use.

For a prospective buyer, the strongest reasons to investigate this model further are its figured mango top, roasted maple neck and fingerboard, hand-wound pickup set, and included case. The most important next step is to confirm the unspecified details that matter to the intended use, particularly neck measurements, weight, pickup switching behavior, and the tremolo setup.
