Line6 Helix Guitar Processor: Hands-On Test

Since its introduction in late 2015, the Line6 Helix Guitar Processor has positioned itself as a benchmark for floorboard-based amp modeling systems. At a price of $1169, this flagship model packs a serious collection of amp, cabinet, and effects modeling, plus comprehensive routing and connectivity, all built into a robust steel chassis. After extended use both at home and in the field, the strengths and underlying nuances of the Helix become clear.

Build Quality and Interface

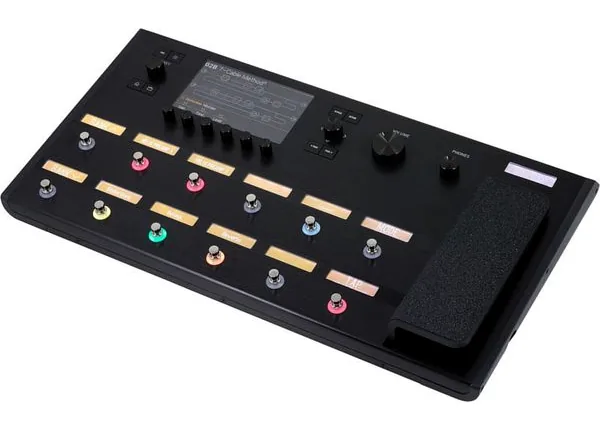

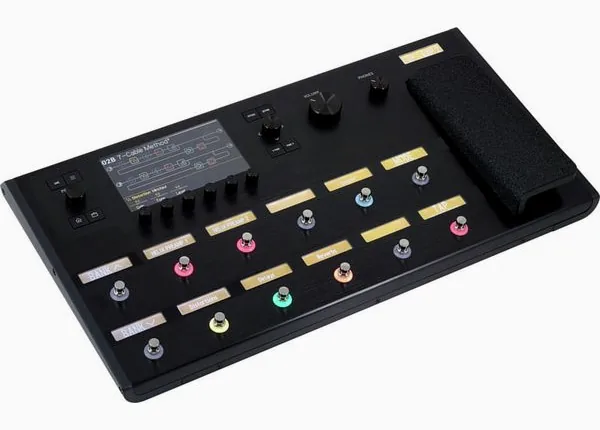

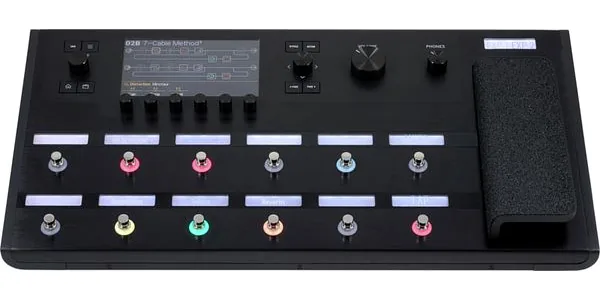

The Helix floor unit is physically substantial at 6.6kg, measuring 55.8 x 30 x 8.5 cm. The steel housing and bolted switches make it clearly reliable for touring, with enough heft to inspire confidence but not so much as to become transport-unfriendly. The large color screen offers clear visual feedback and is complemented by twelve pressure-sensitive footswitches. Each switch features an assignable mini-display, letting you name scenes and effects, with color-coding for quick navigation, even on dimly-lit stages.

Ergonomics are a highlight. The interface is designed for fast hands-on control: parameter changes are immediate, with no need to dive through endless menus. Touch sensitivity on the footswitches is surprisingly intuitive, touching a switch brings up its parameters for instant editing, something users universally praise. The layout, color coding, and responsiveness significantly reduce set-up time during rehearsals or gigs.

Connectivity and Routing

Few devices in this segment offer such comprehensive connectivity. The Helix supports ten inputs and twelve outputs, including four send/return loops, plus stereo XLR and quarter-inch outputs, a dedicated headphone out, MIDI in/out, AES/EBU and SPDIF digital audio, and a VDI input for Line6 Variax guitars. Add to this an eight-in/eight-out USB audio interface, and you can integrate Helix into nearly any live or studio setup, routing signals in parallel, stereo, wet-dry, or any complex scenario you require.

• Up to three simultaneous expression pedals supported (one integrated)
• CV and expression outs for external gear control
• Independent input impedance settings per preset, vital for instrument matching
• Direct output for live or studio monitoring

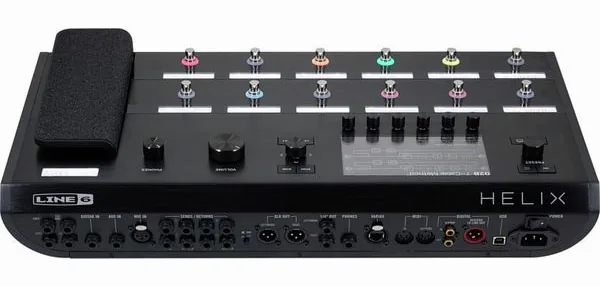

The rear panel is dense but logically laid out, making even complex multi-amp or wet/dry/wet setups easy. Software control is available through an in-depth PC/Mac editor, the Helix Editor, which allows drag-and-drop patch building and firmware updates.

Modeling Engine and Sound Quality

Under the hood, the dual digital signal processor HX modeling engine gives the Helix up to four independent stereo signal paths. You can run up to 104 effects, 50 guitar amps, 12 bass amps, 37 cabinets, and 17 microphones in various configurations. The realism of amp models is notable: not only do they capture the EQ and overdrive behaviors of real amplifiers but also their touch response and sensitivity to guitar controls, from picking dynamics to instrument volume knobs. Effects quality stands out, especially on modulation, delay, and reverb. Line6 is committed to frequent firmware updates, adding new effects and models based on user feedback.

Impulse response (IR) loading (up to 2048 samples) allows players to use third-party cabinet and mic captures, substantially expanding tonal options. Many users find that factory cabinets are already highly usable, especially in "dual cab" mode with independent microphone settings and mix, but for perfectionists, IR support removes virtually all sonic limitations.

• 123 dB dynamic range at guitar input, noise floor is inaudible
• Instant footswitch reassignment, with names and colors for maximum clarity
• Snapshot feature for seamless preset or effect changes mid-song

In Practice: Live and Studio Use

Live, Helix shines when routed directly to front-of-house systems, powered speakers, or recording interfaces. With proper cab modeling or IRs engaged, the "mic'ed amp in the control room" experience is preserved, even for tube amp loyalists. The system does not recreate the raw tactile feedback of standing next to a cranked amplifier, but through quality monitoring (in-ears or wedges), its realism and dynamic range are as close as any digital processor gets. Direct output and flexible routing allow for traditional amp/FX loop integration, parallel live setups, or even complex dual-amp blends for guitar and bass at once. Its MIDI implementation is extensive, users report seamless integration for guitar, vocals, and even external synth rig control.

For recording, the USB interface is practical. Latency is low, and reamping is simple. The advantage of being able to transfer Helix tones between the floor unit and Helix Native VST plugin adds more value, especially for those working in a digital audio workstation.

Weaknesses and Caveats

• Factory presets can be underwhelming, serious users should plan on spending time building or downloading custom patches
• The full depth of modeling and routing is both a strength and occasional hurdle; those seeking plug-and-play may initially feel overwhelmed by the options
• Updated firmware usually resolves most system quirks, but new units occasionally ship with old versions pre-installed, requiring an immediate update
• Switching between some extreme effect chains can tax DSP resources sooner than expected

Some purists note that while distorted tones are convincing, a few clean and breakup (edge-of-overdrive) models still betray a subtle digital sheen when directly A/B'ed with high-end tube gear, but to most players and listeners, this difference will be academic, especially in band contexts or pro mixes.

Conclusion: Built for the Demanding Modern Player

Line6 Helix Guitar Processor distinguishes itself with an uncompromising blend of deep modeling, intuitive workflow, and unmatched connectivity. Its robust build, regular software support, and vibrant online community extend its life well beyond its initial release. While the learning curve is not to be understated, those willing to fine-tune their tones will find a creative, versatile, and gigworthy centerpiece for nearly any modern guitar or bass rig. At its price point, Helix still sets the standard for all-in-one floor units, highly recommended for anyone seeking a pro-grade solution that evolves with their needs.
