Jackson American SRS RR24 MAD

Jackson American SRS RR24 MAD: A Focused Evaluation

The Jackson American SRS RR24 MAD sits firmly in the upper echelon of the brand's USA line, both in price and manufacturing standards. This RR-shaped guitar is tailored for players demanding precision, robust hardware, and appointments that support high-gain, accelerated play as well as expressive lead work. Here, I break down the core specifications and what they offer to the technically-minded guitarist without extrapolating feedback or speculation.

Construction and Materials

The RR24 MAD features a solid Alder body for its main chassis, a material recognized for balancing resonance and clarity, particularly in fast, articulate playing. The neck follows a neck-through-body design entirely in Maple. This approach, compared to bolt-on or set necks, enhances overall sustain and note articulation by allowing string vibrations to travel through a continuous piece of timber. The fingerboard is crafted from Ebony, known for its tight grain, durability, and quick attack, making it a frequent choice for modern, technical guitars. An inverted mother of pearl shark fin inlay pattern provides visual orientation across all 24 jumbo frets.

Neck, Scale, and Playability

A scale length of 648 millimeters (25.51 inches) gives the instrument standard tension, suitable for a range of tunings while maintaining snapping string response, particularly relevant for aggressive picking styles. The compound fingerboard radius, ranging from 305 mm (12 inches) to 406 mm (16 inches), facilitates comfortable chording in the lower register and flatter action for bends and fast solos higher up the neck. The nut width is 42.9 mm (1.6875 inches), a dimension that will feel familiar to many players favoring slim profiles and effortless left-hand maneuvering.

Fretwork and Hardware

With a total of 24 jumbo frets, the RR24 MAD is optimized for both extensive soloing and broad finger access. The fretwork, combined with the slick Ebony, supports quick runs and clear note separation. Hardware follows a black theme throughout, with a Floyd Rose 1500 double-locking tremolo system at the heart. This tremolo is known for both extreme pitch modulation and tuning stability. It is locked down with Gotoh MG-T locking machine heads, deepening the instrument's reliability for heavy tremolo use and facilitating easy string changes. Nickel-plated steel strings in a.009 to.042 gauge come installed by default, light enough for technical players but offering solid tuning retention with this hardware setup. Dunlop Dual Locking strap buttons are pre-installed, ensuring the instrument remains secure during performance.

Pickups and Electronics

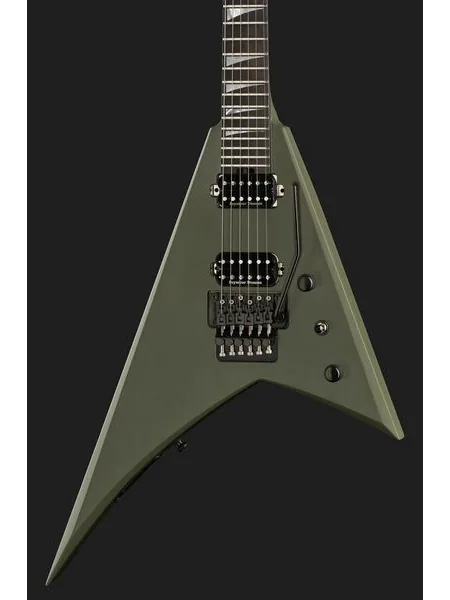

No active electronics are onboard; instead, the RR24 MAD utilizes a pair of Seymour Duncan humbuckers. The bridge position is filled by the JB TB-4, a ceramic unit favoring rich midrange and high output, attributes often appreciated for articulate leads and tight rhythms. The neck position hosts the '59 SH-1N, which supplies a warmer, vintage-voiced touch ideal for smoother cleans and articulate sustain. Both pickups are selected via a three-way switch with single master volume and tone controls, allowing for efficient tonal adjustments without cluttering the control layout.

Finish, Aesthetics, and Accessories

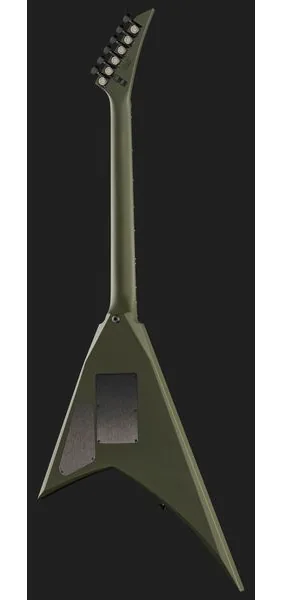

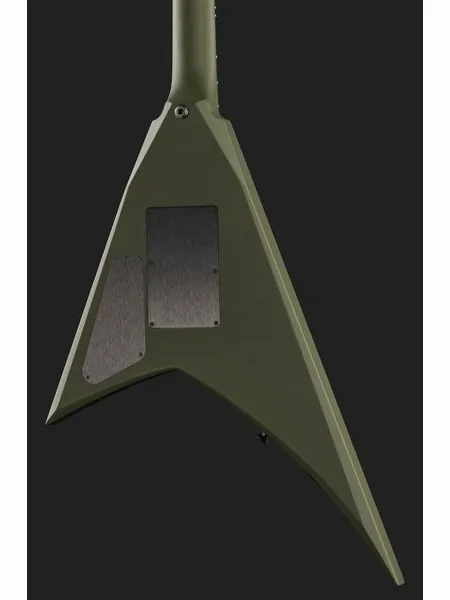

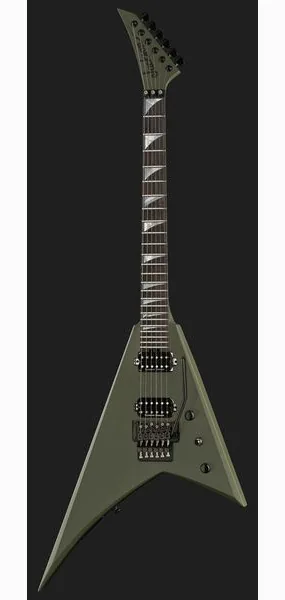

The instrument comes in an "Army Drab" matte green finish, offering a modern-yet-traditional aesthetic that stands out without excess flash. While it doesn't feature a figured or laminated top, the finish complements the sharp RR outline. Black hardware matches the military-themed aesthetic. For transport and protection, a sturdy case is included, emphasizing its premium placement. However, a gig bag is not provided in the package.

Overall Technical Impression

• Body wood: Alder supports clarity and fast attack
• Neck-through Maple for extended sustain
• Ebony fingerboard, 24 jumbo frets, compound radius for advanced playability
• Seymour Duncan JB TB-4 (bridge) and '59 SH-1N (neck) humbuckers for versatile tones
• Floyd Rose 1500 tremolo plus Gotoh locking tuners for maximum tuning stability
• Matte "Army Drab" green finish and inverted shark fin inlays for unique appearance

Technical evaluation shows that Jackson has constructed the American SRS RR24 MAD with a clear focus on sustaining-heavy, high-precision performance. From the choice of woods and neck-through construction to the use of premium hardware and pickups, this instrument is specified for players who require top-tier dependability and modern playability in a distinctive RR shape. Its price and US manufacturing further reinforce its professional orientation, while the case adds practical value for touring or studio transport. The feature set targets musicians who prioritize fast action, tuning retention under extreme use, and a broad tonal palette within a visually assertive package.
