Ibanez AZES40B-ROM

Ibanez AZES40B-ROM: Technical Review

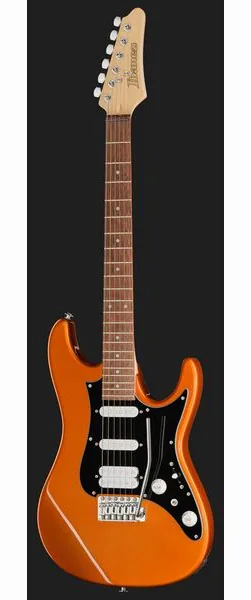

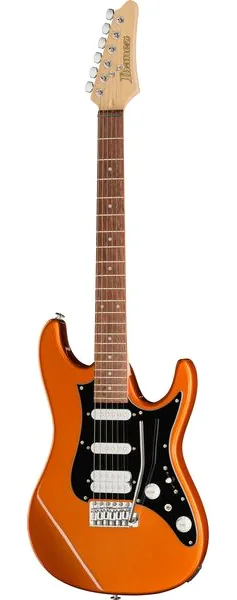

The Ibanez AZES40B-ROM is an electric guitar listed at $299, with an HSS pickup layout, a poplar body, and a maple neck. Its finish is called Roadster Orange Metallic in the detailed specification, while the general color field says orange. The guitar has a jatoba fingerboard, 22 medium frets, a T106 tremolo, and Ibanez tuning machines. The supplied specifications describe the hardware and construction, but do not include customer reviews or hands-on test results. This assessment therefore focuses on what those details establish, and on what remains uncertain.

Construction and neck dimensions

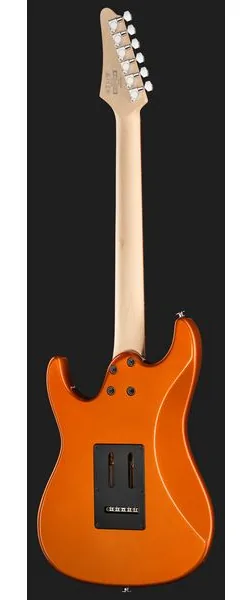

The body is made from poplar, with no separate top listed. The neck is maple and attaches to the body with a bolt-on joint. The jatoba fingerboard has white dot inlays and 22 medium frets. These are useful points of reference when comparing the guitar with other instruments, but the data does not specify body weight, neck finish, fret material, or the exact dimensions of the frets.

Ibanez gives the AZES neck profile thickness as 21 mm at the first fret and 23 mm at the twelfth fret. The fingerboard radius is 250 mm, also listed as 9.84 inches, and the nut width is 42 mm, or 1.65 inches. The nut is plastic. Together, these measurements describe the neck's basic geometry, but they do not establish how it will feel to a particular player. Hand size, preferred action, setup, and playing style all affect that judgment.

A scale-length discrepancy to check

The scale length is the most important specification to verify before purchase. The general specifications list 648 mm, while the detailed description gives 635 mm, equivalent to 25 inches. Those figures are different, and the information supplied does not explain the mismatch. Scale length affects string tension and the placement of frets, so it is not a minor catalog detail. Buyers should ask the seller or Ibanez to confirm which measurement applies to the AZES40B-ROM being offered.

Pickup layout and controls

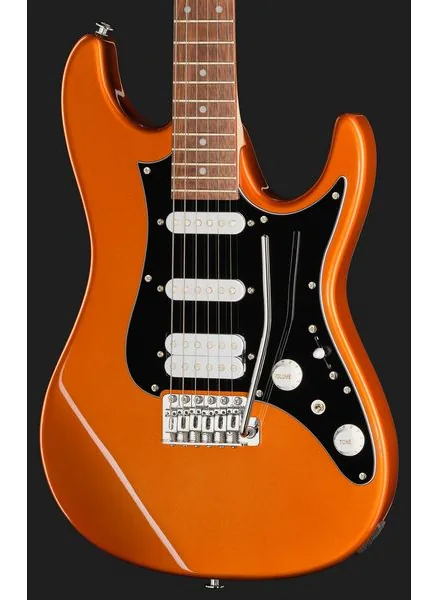

The guitar uses an HSS configuration: one One Accord humbucker at the bridge, plus two Essentials single-coil pickups at the middle and neck positions. A five-way pickup switch selects the available pickup combinations. The listed controls are volume and tone, and the dyna-MIX9 system with Alter Switch is included. The name suggests a switching feature, but the supplied information does not explain the exact circuit, the sounds available in each switch position, or how the Alter Switch changes the signal. Those details should be confirmed from an official wiring guide if they are central to a buying decision.

The pickup types establish the basic arrangement, but they do not provide output levels, magnet types, or measured tonal response. There are also no audio examples or test recordings in the available product information. It would be misleading to claim that the bridge pickup is especially powerful, or that the single coils produce a particular vintage character, without supporting data. The practical takeaway is that this model offers a bridge humbucker and two single coils, with switching beyond a simple pickup selector described by Ibanez's dyna-MIX9 name.

Tremolo, finish, and included items

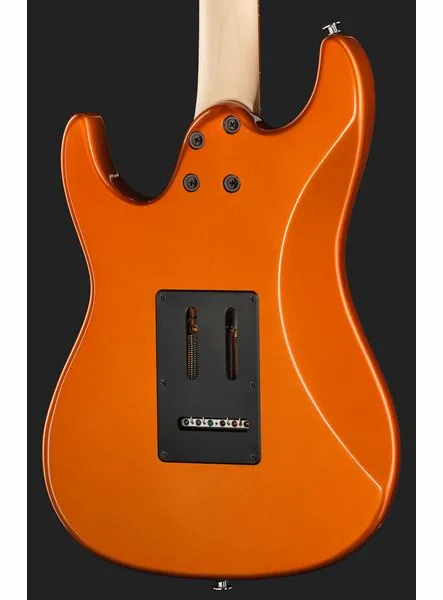

An Ibanez T106 tremolo is fitted, with chrome-plated hardware and a black pickguard. The specifications do not state whether the bridge is floating or set up against the body, nor do they provide information about tuning stability, arm inclusion, or adjustment range. Those points depend partly on setup and should not be assumed from the tremolo model name alone.

The guitar ships with factory strings in.010 to.046 gauges. No bag or case is included according to the supplied listing. That means a buyer planning to transport the instrument will need to budget for protection separately. The item number is 640602, and the listed sales unit is one piece. Availability is given as July 2026.

Buying assessment

On paper, the AZES40B-ROM offers a defined feature set for its listed $299 price: a poplar body, bolt-on maple neck, jatoba fingerboard, HSS pickups, five-way switching, dyna-MIX9 with Alter Switch, and a T106 tremolo. The orange metallic finish and black pickguard give the listed configuration a clear visual identity. However, the conflicting scale-length figures warrant clarification before ordering, and the product data leaves several setup and circuit details unanswered.

There are no customer reviews available, and the supplied information contains no independent playing test. This review does not assign a performance rating or make claims about sound, comfort, tuning stability, or factory setup. For a careful purchase, confirm the scale length, ask what the Alter Switch does in each position, and check whether the seller's listing matches the Roadster Orange Metallic version. The specifications support a factual comparison, but those confirmations would make the buying decision more reliable.
