Ibanez AZ47P2K-DEB

Ibanez AZ47P2K-DEB: Technical overview

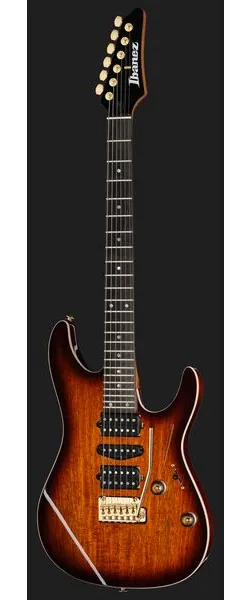

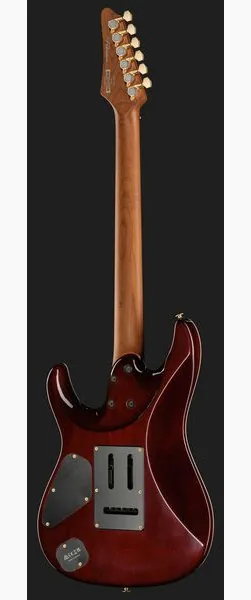

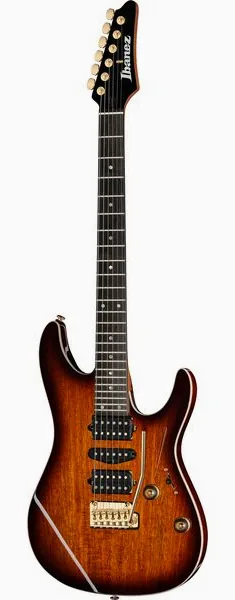

The Ibanez AZ47P2K-DEB is a solid-body electric guitar listed at $1,399, available since July 2025. Its Dragon Eye Burst finish sits over a basswood body with a koa top. The product information uses both "Linden" and "Basswood" for the body; basswood is the familiar US-market name, and the listing does not describe a different body construction. The neck is roasted maple, attached with a bolt-on joint, and the fingerboard is ebony with mother-of-pearl dot inlays.

The specification sheet gives a 25.5-inch scale, 24 jumbo frets, and an AZ Oval C neck profile. Neck thickness is listed as 21 mm at the first fret and 23 mm at the twelfth. The fingerboard radius is 12 inches, and the nut measures 42 mm wide. Together, these measurements provide a useful picture of the instrument's dimensions, though they do not establish how the neck will feel to an individual player. No customer reviews are available, so there is no user feedback to add to the specifications.

Neck, fingerboard, and hardware

The roasted maple neck and ebony fingerboard are specified without additional details about the roasting process, neck finish, or fret treatment. The 12-inch radius is a single stated measurement, rather than a description of any changing radius along the board. The 24 jumbo frets provide the fret count and size category, but the listing does not give fret material or dimensions.

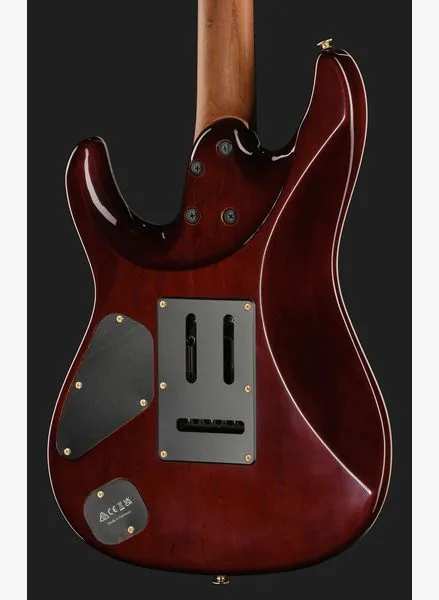

A Graph Tech nut is paired with Gotoh MG-T machine heads. The bridge is a Gotoh T1502 tremolo, and the hardware is gold-colored. These named components identify the key tuning and bridge hardware, but the supplied information does not detail the tremolo's adjustment range, locking setup, or maintenance requirements. Buyers who need those specifics should check with Ibanez or a dealer before purchase.

Pickup layout and controls

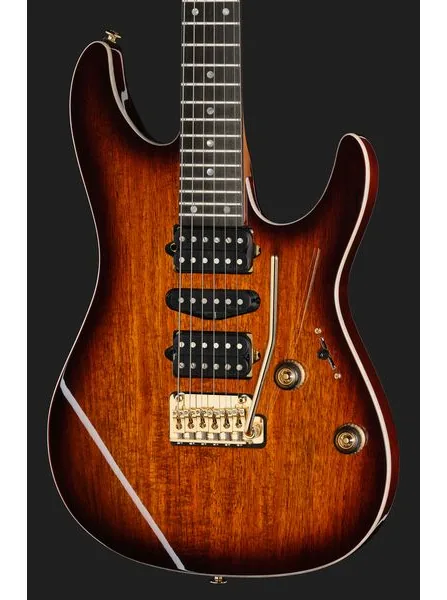

The AZ47P2K-DEB uses an HSH arrangement: two humbuckers and a single-coil pickup between them. The bridge position has a DiMarzio The Tone Zone humbucker, the neck position has a DiMarzio Air Norton humbucker, and the middle position has a DiMarzio True Velvet single-coil pickup. The model names and pickup positions are provided, but no output measurements, wiring diagram, or switching-mode details are included.

Controls consist of one volume knob, one tone knob, and a five-way switch. That is enough information to identify the main control set, but not to confirm the exact pickup combinations available in each switch position. The five-way selector indicates multiple selectable settings; the specific wiring should be verified if a buyer needs a particular combination or switching behavior.

What the specifications establish

The combination of a 25.5-inch scale, 42 mm nut, AZ Oval C profile, and 12-inch fingerboard radius makes the dimensions straightforward to compare with other guitars. Those figures can help narrow a shortlist, but they cannot predict comfort or playing feel on their own. The same applies to the wood choices and pickup models: the listing identifies the components, not the sound of a finished guitar in a room, through an amplifier, or under a particular playing style.

The package includes a gig bag. A separate hard case is not included. The stated string gauges are.010,.013,.017,.026,.036, and.046, a useful detail for anyone checking the supplied setup or planning a replacement set. The listing does not specify whether the guitar's action, intonation, or tremolo setup is adjusted to a particular preference before shipment.

Buying considerations

At $1,399, this model's documented features include a koa top, roasted maple neck, ebony fingerboard, three DiMarzio pickups, and named Gotoh bridge and tuning hardware. Its specifications are detailed enough to compare its dimensions and components with other instruments in the same price range. They do not provide independent measurements or listening evidence, and there are no customer reviews available for this product.

For a purchase decision, confirm the finish, body-wood wording, included bag, and current price with the seller. Players with specific requirements should also ask for the five-way switch wiring, setup details, and any further tremolo information. Based strictly on the available data, the AZ47P2K-DEB is a 24-fret, HSH electric guitar with a defined set of materials and hardware, while its actual feel and sound remain matters for a hands-on evaluation.
