Ibanez AZ2204NW-DTB

Ibanez AZ2204NW-DTB: What the specifications show

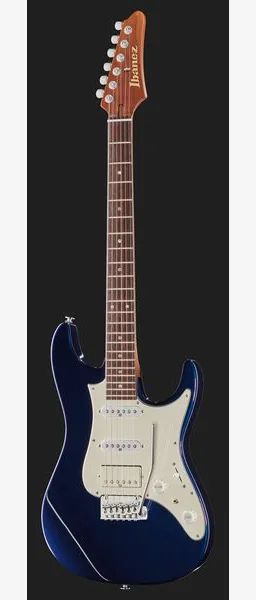

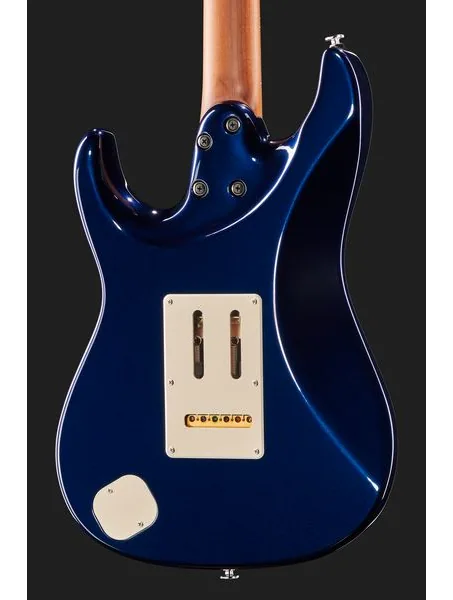

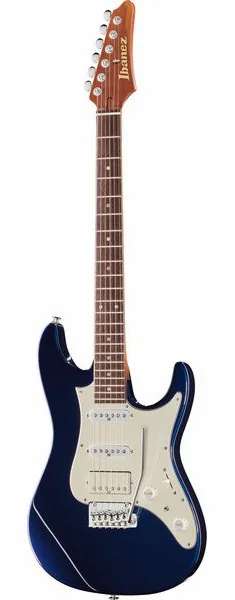

The Ibanez AZ2204NW-DTB is a Japanese-made electric guitar listed at 1899. It has a Dark Tide Blue Gloss finish over an alder body, a roasted maple neck, and a rosewood fingerboard. The listed configuration combines one humbucker at the bridge with two single-coil pickups in the middle and neck positions. A Gotoh tremolo and locking tuners complete the main hardware package.

These details describe a guitar with familiar bolt-on construction and a flexible pickup layout. They do not, by themselves, establish how it sounds, feels, stays in tune, or compares with another instrument. No customer reviews are available for this product, so this assessment stays with the supplied specifications rather than attributing any playing experience or buyer feedback to it.

Neck, fingerboard, and playing dimensions

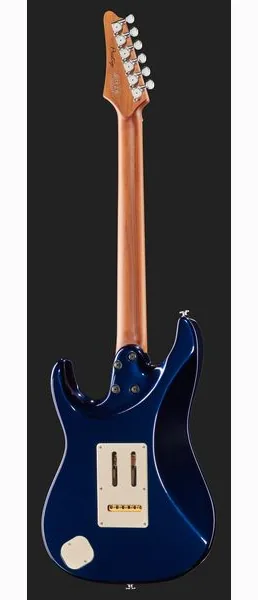

The roasted maple neck uses Ibanez's AZ Oval C profile. Its listed thickness is 21 mm at the first fret and 23 mm at the twelfth, giving a concrete reference for the neck's shape. These measurements do not describe every aspect of hand feel, but they let shoppers compare the stated profile with necks they already know.

The guitar has a 648 mm (25.51-inch) scale length, a 42 mm (1.65-inch) nut width, and 22 jumbo frets. The fingerboard radius compounds from 228 mm (8.98 inches) near the nut to 305 mm (12.01 inches) toward the body. A compound radius uses a rounder curve in the lower positions and a flatter curve higher up. That design is relevant when comparing specifications, though the numbers alone cannot confirm comfort or fret setup.

Other fingerboard details include mother-of-pearl dot inlays and a bone nut. The supplied strings are listed as.010 to.046. Those gauges provide a useful baseline when checking the instrument's setup, but the product information does not specify action, relief, or factory tuning.

Pickup layout and controls

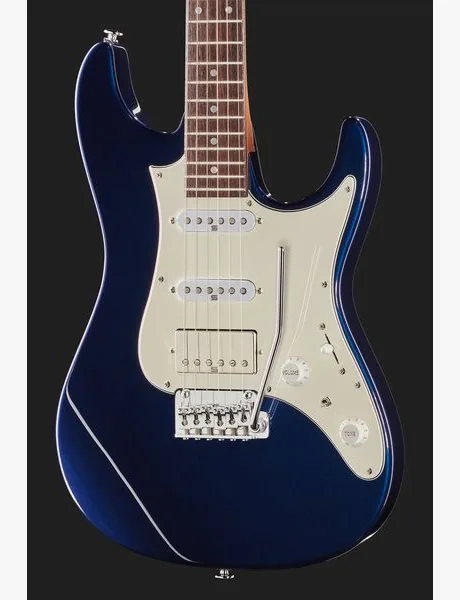

The pickup set consists of one Seymour Duncan Fortuna humbucker at the bridge and two Seymour Duncan Fortuna single-coil pickups at the middle and neck positions. The HSS arrangement offers distinct pickup formats within one instrument. The specifications identify the pickup types and locations, but do not include output measurements, wiring diagrams, coil-splitting options, or detailed descriptions of their tonal character.

Controls comprise volume and tone knobs, along with a five-way selector. The listing does not explain the exact switching combinations, so it would be unwise to assume additional modes beyond what is stated. For a buyer who needs a particular wiring function, confirming the factory circuit with Ibanez or the seller would be a sensible step.

Tremolo, tuners, and included case

Ibanez specifies a Gotoh T1502S tremolo and Gotoh Magnum locking tuners with H.A.P. The locking design and the tremolo are relevant hardware features for players considering string changes and pitch control. However, the supplied information does not state the tremolo's setup, range, or maintenance requirements. It also does not establish how well the guitar holds tuning under any particular playing style.

The hardware is chrome, and a case is included. No gig bag is listed. The body has no separate top, and the finish is described as polyester lacquer. The blue gloss color and finish are specific to this version; the listing provides no alternate finish options for the same item.

Price and buying considerations

At a listed price of 1899, the AZ2204NW-DTB brings together named Seymour Duncan pickups, Gotoh hardware, a bone nut, and a Japanese-made build. Those specifications can help explain what is included in the package, but they cannot establish whether the price is competitive in a particular market. The supplied data does not identify a currency, so the figure is best treated as the listed price rather than assigned a currency.

The model has been available since May 2023, and its item number is 557219. It is sold as one piece. For an informed purchase, check the seller's current price, confirm the exact case supplied, and ask about setup or return terms if those points matter to you. Since no customer feedback is available here, there is no basis for claims about reliability, comfort, or owner satisfaction.

Technical verdict

The Ibanez AZ2204NW-DTB has a clearly specified combination of an alder body, roasted maple AZ Oval C neck, rosewood fingerboard, HSS pickup layout, and Gotoh tremolo system. Its measured neck dimensions and compound radius offer useful comparison points, while the included case adds a practical item to the package. The available facts support a specification-based assessment, not a conclusion about sound or real-world performance. Buyers should weigh those documented features against their preferred neck dimensions, switching needs, and verified seller details.
