Ibanez 540PIIIHH-WH

Ibanez 540PIIIHH-WH review: what the specifications show

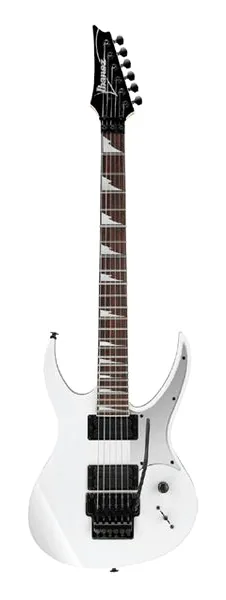

The Ibanez 540PIIIHH-WH is a Japan-made, white ST-style electric guitar with a basswood body, a bolt-on five-piece maple and walnut neck, and a rosewood fingerboard. Its hardware and pickup layout point to a guitar designed around a conventional two-humbucker arrangement and a locking tremolo system. The available information supports a specification-based assessment, not a playing verdict: there are no customer reviews or reported hands-on tests to draw on.

The listed price is 1239. The instrument is identified by item number 652838 and is sold as one piece. Neither a bag nor a case is included, so buyers should account for separate protection and transport if needed.

Neck, fingerboard, and playing dimensions

The five-piece neck combines maple and walnut and attaches to the body with a bolt-on joint. Ibanez specifies a Super Wizard neck profile, with a thickness of 17 mm at the first fret and 19 mm at the twelfth. Those measurements describe a notably slim neck shape on paper, though they do not establish how it will feel in an individual player's hands. The neck has a matte polyurethane finish.

The rosewood fingerboard carries 24 jumbo frets and white sharktooth inlays. Its stated radius is 430 mm, or about 16.929 inches, while the scale length is 648 mm, equivalent to 25.5 inches. Nut width is 43 mm. The guitar also has a locking nut, an important part of its double-locking tremolo setup. These are useful reference points for comparing the model with other guitars, but the supplied specifications do not state fret material, fret dimensions, or factory setup measurements.

Key dimensions and construction

• Body: Basswood
• Neck: Bolt-on, five-piece maple and walnut
• Fingerboard: Rosewood with white sharktooth inlays
• Neck profile: Super Wizard, 17 mm at the first fret and 19 mm at the twelfth
• Fingerboard radius: 430 mm
• Scale length: 648 mm
• Frets: 24 jumbo
• Nut width: 43 mm, with a locking nut

Pickups, controls, and tremolo

The pickup set consists of an Ibanez V8 humbucker at the bridge and a V7 humbucker at the neck. Controls are deliberately straightforward: one volume knob and a three-way pickup selector. The listed specifications do not identify a tone control, coil-splitting option, or additional switching functions, so none should be assumed.

An Edge tremolo is paired with Gotoh machine heads, black hardware, and the locking nut. The Edge system is a defining mechanical feature in the specification, but details such as setup, included tremolo arm, adjustment tools, and spare parts are not provided. The stated factory string gauge is.009 to.042. Players considering a different gauge should expect that a change may call for setup adjustments, especially on a floating tremolo system.

Finish and ownership details

The finish is described as high-gloss white, with no separate top listed. The supplied body information uses both "Linden" and "Basswood," which refer to the same wood in this context. The guitar's black hardware provides a contrasting finish detail. It is made in Japan, though the information provided does not identify the specific factory or production date.

No gig bag or hard case is included. That is worth factoring into the total cost, particularly for buyers who need to transport the instrument regularly. The product listing gives a price of 1239 but does not specify a currency, so the figure should be read in the context of the seller's listing rather than treated as a universal price.

Technical assessment

On paper, the 540PIIIHH-WH brings together a slim-profile five-piece neck, a 25.5-inch scale, 24 jumbo frets, two humbuckers, and a locking Edge tremolo. The control layout is simple, and the pickup models and neck dimensions are clearly identified. Those details make the guitar straightforward to compare against other double-humbucker instruments.

The available data does not establish its weight, acoustic resonance, pickup output, tremolo stability in use, fretwork quality, or setup condition. Without customer feedback or a hands-on evaluation, claims about comfort, sound, reliability, or value beyond the listed features would go beyond the evidence. Buyers should confirm the seller's price currency, included accessories, and current setup before ordering.
