Ibanez 540PIII-DY

Ibanez 540PIII-DY review

The Ibanez 540PIII-DY brings back a guitar design from 1989 as part of the Genesis Series. The original 540P was made for only two years, according to the supplied owner feedback, so this reissue gives players who missed that run another chance to find the model. The updated name is 540PIII, and the changes described in the feedback center on the neck and nut width, along with a slightly different contour on the back of the body.

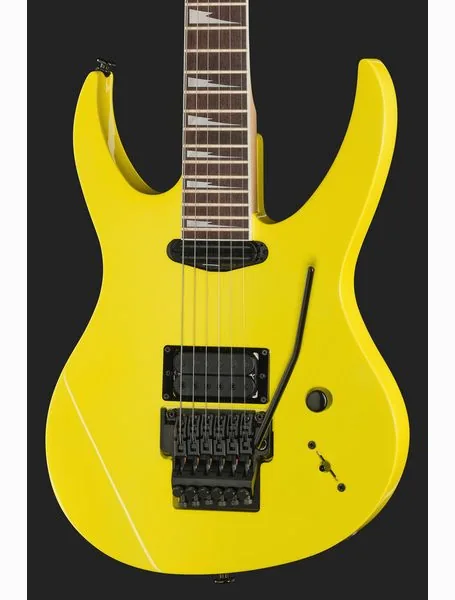

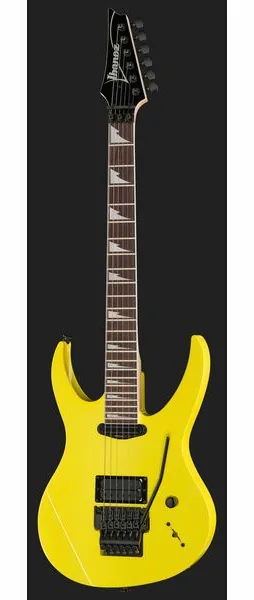

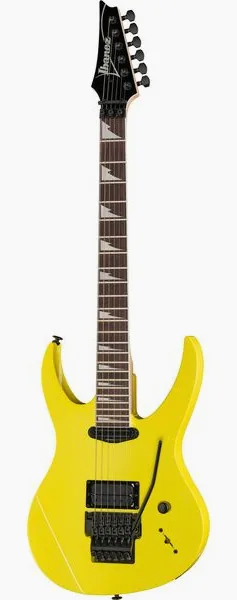

This Japanese-made, ST-style electric guitar is finished in Desert Sun Yellow, with black hardware and white sharkfin fingerboard inlays. Its listed price is 1055. The specifications identify the body as basswood, also called linden, and give no top wood. There is no bag or case included, an important practical detail to account for when comparing the price with other guitars.

Neck and playing feel

The five-piece, bolt-on neck combines maple and walnut. Ibanez uses its Super Wizard neck profile, a 43 mm nut width, and a 430 mm fingerboard radius. The rosewood fingerboard carries 24 jumbo frets and the white sharkfin inlays. Together, these details describe a neck built around a familiar fast-playing electric-guitar layout, though comfort is personal and depends on hand size and playing style.

The scale length is 648 mm, or 25.5 inches. That is a full-length scale, paired here with a locking nut and an Edge tremolo. The supplied strings are gauges.009,.011,.016,.024,.032, and.042. One owner reports that the guitar arrived well set up, then lowered the string action slightly and straightened the neck. That is useful firsthand context, but setup preferences vary, and individual instruments may need adjustment after shipping or a change of strings.

Pickups and controls

The pickup layout is HS: one Infinity R humbucker at the neck and one V8 humbucker at the bridge. A single volume control and a five-way switch handle the onboard controls. There is no separate tone control listed in the supplied specifications. The owner feedback describes the stock pickups as sounding excellent, but does not provide detailed settings, playing examples, or genre-specific comparisons. Treat that as a positive personal impression rather than a measured claim about the pickups' output or tonal range.

The Edge tremolo is paired with a locking nut, while Gotoh machine heads handle tuning at the headstock. This is a specification set aimed at a guitar with a locking tremolo system, rather than a fixed bridge. Players who regularly use the tremolo will want to consider the setup and string-changing routine that comes with that design. The feedback does not report a specific tuning-stability test, so there is no basis here for a stronger performance claim.

Build and version changes

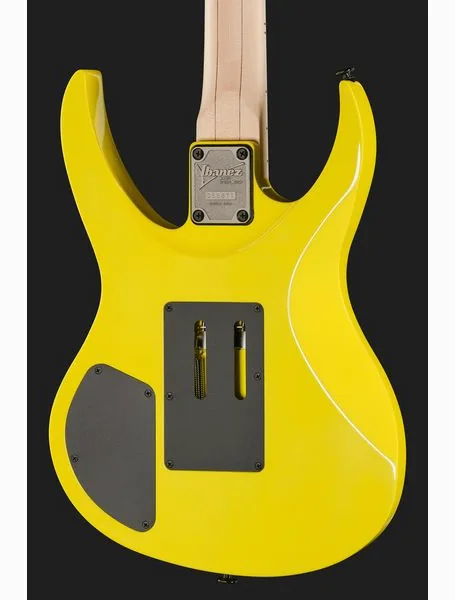

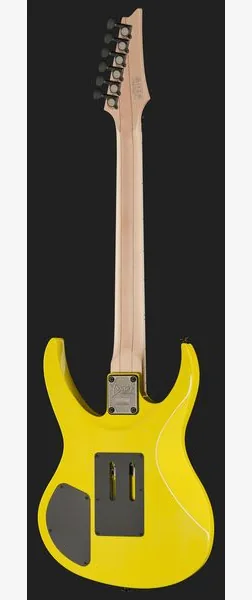

The available owner account is strongly positive about workmanship and playability. It describes the guitar as very well made and says it plays smoothly. The reviewer also notes the revised neck and nut dimensions compared with the 1989 original, plus a subtly altered rear body contour. Those are the clearest points of distinction from the earlier model in the information provided. The feedback does not give exact measurements for the original neck, so direct dimensional comparisons are not possible.

The 540PIII-DY has been available since October 2025 and is listed under item number 625345. Those details help distinguish this version when searching for availability or comparing retailer listings. The finish name is Desert Sun Yellow, while the color is also recorded more generally as yellow.

Who should consider it?

This model makes the most sense for a player specifically interested in the 540P design, the Genesis Series, or a Japanese-made Ibanez with a Super Wizard neck and locking tremolo. Its 24 jumbo frets, two-humbucker layout, and five-way switching provide a clear specification profile, but the supplied information does not establish how the switch positions are voiced or document detailed measurements of weight and balance.

The main buying considerations are straightforward: confirm the listed price and local availability, decide whether the Edge tremolo suits your playing, and budget for a case or bag if you need one. The owner's report of strong factory setup and satisfying stock pickups adds encouraging real-world context, though it represents one instrument and one player. For fans who wanted a 540P after the short original production run, the 540PIII-DY offers a documented route back to that design, with a revised neck and a distinctive yellow finish.
