Charvel Pro-Mod Plus SanDimas FR EB SE: Technical Review

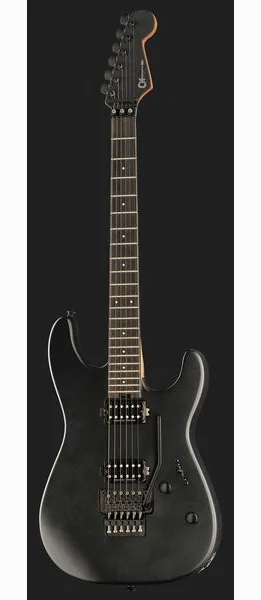

The Charvel Pro-Mod Plus SanDimas FR EB SE is listed at $1,059 and has been available since April 2025. Its specification sheet describes a black-finished alder body, a maple bolt-on neck, an ebony fingerboard, and two Seymour Duncan humbuckers. Those details establish the guitar's basic construction and electronics, but the bridge information contains a significant inconsistency that buyers should resolve before ordering.

There are no customer reviews available for this product. This assessment therefore relies only on the supplied specifications. It cannot confirm how the guitar feels in hand, how well it stays in tune, or how its pickups sound through an amplifier.

Construction and fingerboard

The body is made from alder, with no separate top listed. The color is given as both Black and Scorched Earth in the supplied data. These descriptions may refer to a finish name and a general color, but the information does not clarify the relationship. Check the retailer's product photos or listing before buying if the exact finish matters to you.

The maple neck is bolt-on, and the fingerboard is ebony with pearloid dot inlays. The fingerboard radius is listed as a compound 12 to 16 inches, or approximately 305 to 406 mm. A compound radius changes gradually along the board. That is a verifiable design feature, though the sheet alone does not establish whether a particular player will prefer its feel.

The guitar has 22 jumbo frets. The specification gives the scale length as 648 mm, equivalent to 25.51 inches. One field labels 648 mm as the nut width, which cannot be correct alongside the separate nut-width figure of 42.9 mm. The most plausible reading is that 648 mm refers to scale length and 42.9 mm to nut width, as the other entries indicate, but the retailer should confirm the measurements.

Pickups and controls

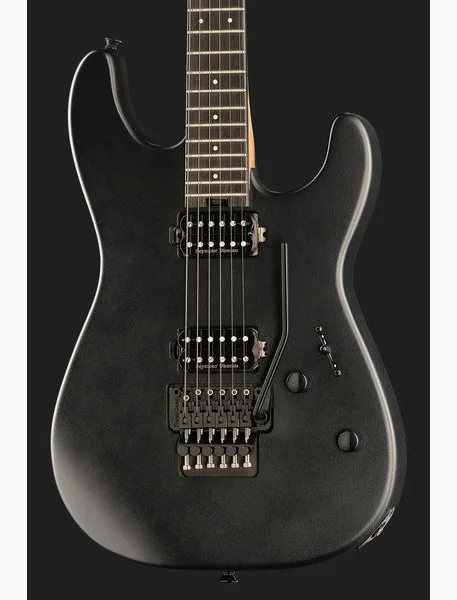

The listed pickup set pairs a Seymour Duncan JB TB-4 at the bridge with a Seymour Duncan '59 SH-1N at the neck. Both are direct-mounted humbuckers. The model names and positions provide useful information when comparing replacement options or checking compatibility. However, no output measurements or tonal descriptions are supplied, so claims about their sound would go beyond the available evidence.

Controls consist of a Bourns low-friction volume potentiometer, a no-load tone control, and a three-way pickup switch. The sheet does not spell out the switch's exact positions or describe the tone control's operation across its range. The control layout is therefore clear at a basic level, while finer details are absent.

Bridge discrepancy and hardware

The product's short specification list identifies a Floyd Rose tremolo. The detailed specification instead names a hardtail bridge. These are different bridge configurations, and the supplied information does not explain whether one entry is an error or whether multiple versions have been combined in the listing. This is the key point to verify with the seller. Do not assume the guitar has a Floyd Rose or a hardtail based on this data alone.

That distinction can affect string changes, setup, and the way a player uses the bridge. It may also matter to anyone specifically shopping for a locking tremolo or a fixed bridge. The listing gives no bridge manufacturer or further bridge details to settle the issue.

Other listed hardware includes Charvel-branded die-cast tuning machines in black. The supplied string gauge is.009,.042, with nickel-plated steel strings. A bag is included; a case is not. The product is listed as one piece, with item number 609265.

Verdict based on the supplied specifications

On paper, the Charvel Pro-Mod Plus SanDimas FR EB SE combines an alder body, a maple bolt-on neck, an ebony fingerboard, 22 jumbo frets, and a named Seymour Duncan humbucker set. Its compound fingerboard radius and listed control components add detail for shoppers comparing specifications at this price.

The bridge conflict prevents a complete assessment of the configuration. The scale-length and nut-width entries also appear to be mislabeled, and the finish is described in two different ways. Before spending $1,059, confirm the bridge type, measurements, and finish with the retailer. With no customer feedback available, those checks are especially important: the supplied data supports a technical comparison, but not conclusions about playing feel, reliability, or sound quality.
