Harley Benton Fusion-IV HSS LH RW PM

Harley Benton Fusion-IV HSS LH RW PM review

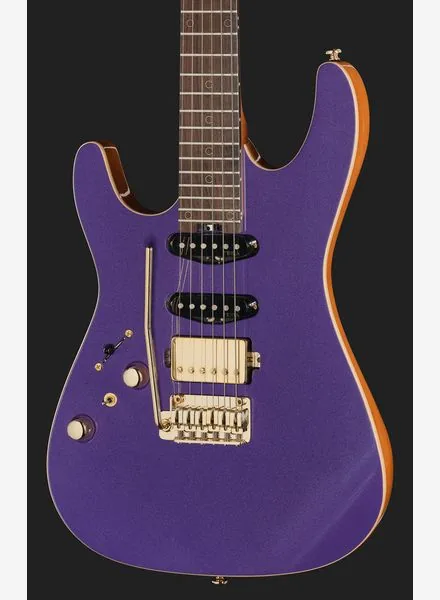

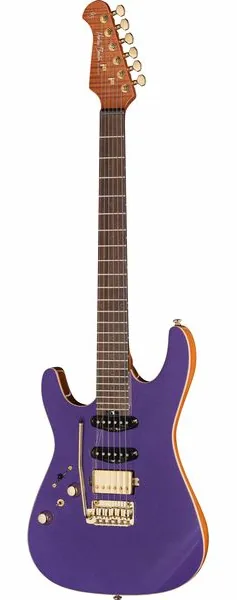

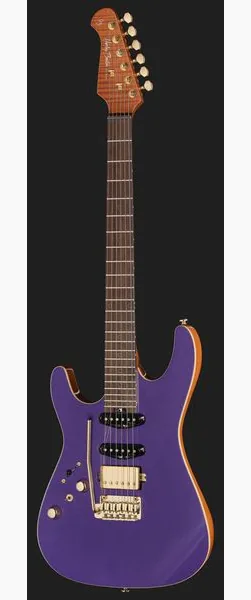

The Harley Benton Fusion-IV HSS LH RW PM is a left-handed, six-string electric guitar with a double-cutaway ST-style body and a high-gloss Purple Metallic finish. Its listed price is 471, and the product information says it has been available since April 2026. The specifications describe a 648 mm scale, 24 frets, an HSS pickup layout, and a two-point tremolo. No customer reviews are available, so this assessment is based only on the supplied product details.

Body and construction

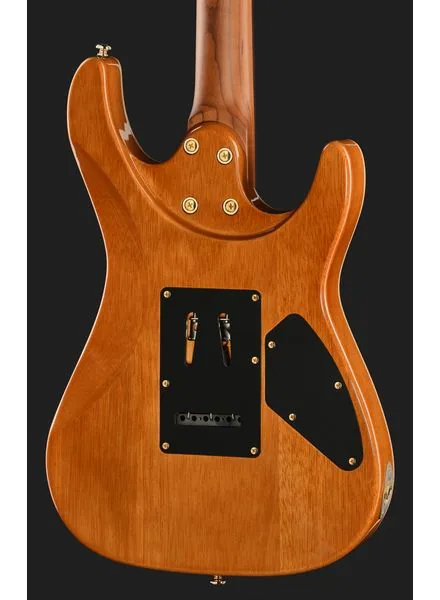

The body is listed as nyatoh, with a carved back and a tapered neck heel. The neck heel shape and carved back are construction details, but the available information does not provide body measurements or weight. The body also has a wooden binding. A quilted maple veneer is specified in the detailed description, although another field lists the top as "None." That is an inconsistency in the supplied specifications, so the veneer should be confirmed with the seller before purchase if it matters to you.

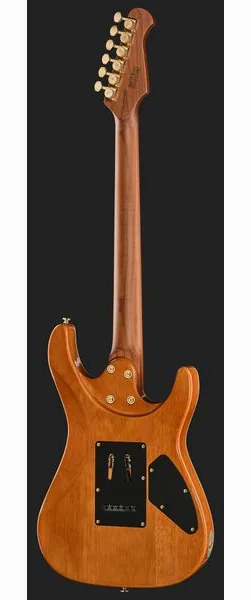

The neck is bolt-on and made from roasted Canadian flamed maple. Its roasted finish and figured wood are stated materials, not evidence of a particular tonal result. The rosewood fingerboard has circular inlays and fluorescent side markers. The latter are specified as visual markers; no claim about their brightness or visibility in particular lighting is provided.

Neck dimensions and playability features

The neck profile is described as a modern C, measuring 21 mm thick at the first fret and 23 mm at the 12th. The nut width is 42 mm, and the scale length is 648 mm, equivalent to 25.5 inches. A compound fingerboard radius runs from 305 mm to 406 mm, or 12 to 16 inches. These dimensions give a more useful basis for comparing the neck with other instruments than the profile label alone, though personal comfort cannot be established from measurements.

The fingerboard carries 24 medium-jumbo stainless-steel frets, each specified at 2.7 mm wide. Stainless steel is the stated fret material; the listing does not specify fret height or describe the factory setup. A Graph Tech TUSQ XL nut is fitted. The truss rod uses a double-action adjustment wheel, which describes its adjustment mechanism, but the provided information does not state how much access is available once the guitar is assembled.

Pickups and controls

The HSS arrangement pairs a bridge humbucker with single-coil pickups in the middle and neck positions. The bridge unit is a Tesla VR-Nitro B Alnico 5 humbucker with a gold cover. The middle pickup is a Tesla VR-1BK M Alnico 5 single coil, and the neck pickup is a Tesla VR-1BK N Alnico 5 single coil. The listing identifies the pickup models and magnet type but gives no output readings or measured frequency response.

Controls consist of one volume knob, one tone knob, and a five-way pickup selector. A separate mini-switch is described as an "alter switch for series mode." The wording does not explain which pickup combinations it changes or how the switch interacts with each selector position. Buyers who need a specific wiring function should seek a wiring diagram or confirmation from Harley Benton rather than assume how it operates.

Tremolo and other hardware

The guitar has a Babicz FCH 2-point Special Z Series C full-contact tremolo. Staggered Jinho JN-07 locking machine heads are fitted, with Harley Benton logos. The hardware is gold-colored. The supplied string specification is Harley Benton HQS EL Coated,.010,.046. No information is given about tremolo range, tuning stability under heavy use, or the factory setup, so those aspects cannot be judged from the parts list alone.

What the specifications establish

• Left-handed layout: The model is explicitly identified as left-handed.
• Pickup configuration: One bridge humbucker and two single coils, with a five-way selector and an additional mini-switch.
• Neck details: Roasted Canadian flamed maple, rosewood fingerboard, 42 mm nut, and a compound 12-to-16-inch radius.
• Included accessories: Neither a case nor a gig bag is included.
• Specification to verify: The listing conflicts on whether the top is absent or has a quilted maple veneer.

On paper, the Fusion-IV combines a defined left-handed format with stainless-steel frets, locking tuners, and a named two-point tremolo. The detailed neck measurements and pickup model numbers make the specification unusually concrete, while the unclear series-mode switch and contradictory top description warrant follow-up. At a listed price of 471, the supplied data support a feature-based comparison, but they do not establish sound quality, setup condition, reliability, or how the guitar feels in use.
