Gretsch G5230 T EMTC JET FT DCM

Gretsch G5230 T EMTC JET FT DCM: Technical Review

The Gretsch G5230 T EMTC JET FT DCM is a solid-body electric guitar with a mahogany body, maple top, mahogany neck, and laurel fingerboard. Its Dark Cherry Metallic finish and silver Plexi pickguard give it a distinctive visual specification, while the core hardware centers on two Black Top Filter'Tron humbuckers, an anchored Adjusto-Matic bridge, and a Bigsby B50 vibrato tailpiece. The model has been available since June 2025. The listed price is 537, with no currency specified in the supplied information.

This assessment is based on the published specifications only. No customer reviews are available for this product, so there is no user feedback to report about sound, setup, reliability, or long-term performance.

Body, Neck, and Fingerboard

The combination of a mahogany body and maple top is the central construction detail. The neck is also mahogany, and the fingerboard is laurel. These material choices describe the build, but they do not establish how this particular guitar sounds or feels in use. Those results depend on factors such as setup, strings, amplification, and individual preference.

The neck has a Thin U profile and a 305 mm (12-inch) fingerboard radius. The 42.86 mm (1.6875-inch) nut width gives a clear reference for the string spacing at the nut, while the 625 mm (24.6-inch) scale is shorter than a common 25.5-inch electric-guitar scale. A shorter scale changes the string length between nut and bridge, but the specifications alone do not tell us how a player will perceive its tension or feel.

The laurel fingerboard carries pearloid Neo-Classic thumbnail inlays and 22 medium-jumbo frets. The supplied details do not state the fretboard edge treatment, fret finish, or factory action. Buyers who are sensitive to those setup details should confirm them with the seller or inspect the instrument in person when possible.

Pickups and Controls

Two Black Top Filter'Tron humbuckers provide the guitar's pickup configuration. They are humbucking pickups, and their exact output, frequency response, and noise behavior are not quantified in the listed specifications. It would be unreliable to make detailed tonal claims without a hands-on test or measured data.

The control layout includes two volume controls, a master volume, a master tone, and a three-way pickup selector. The available information does not explain the wiring relationship between the two individual volume controls and the master volume. Players should consult the manufacturer's control diagram if they need to confirm how the circuit behaves in each selector position.

The silver Plexi pickguard carries black Gretsch and Electromatic logos. This is a visible design detail rather than a specification that changes the guitar's electronic function.

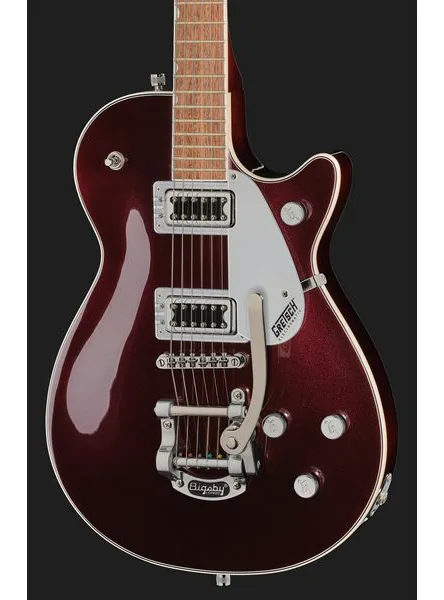

Bridge, Vibrato, and Hardware

An anchored Adjusto-Matic bridge is paired with a Bigsby B50 vibrato. The bridge is identified as anchored, but no further information is provided about its adjustment range, saddle material, or factory intonation. The Bigsby-style vibrato is specifically listed as a B50, so the model's vibrato hardware is clear. The supplied data does not describe its setup or tuning stability, which can also depend on string installation, nut condition, and overall adjustment.

The machine heads are die-cast, and the hardware has a nickel finish. The guitar is supplied with nickel-plated steel strings in a.010,.046 gauge set. That gauge provides a useful starting point when replacing strings, though players may choose another set and then need a setup adjustment.

What the Specifications Do and Do Not Confirm

• Construction: Mahogany body and neck, maple top, and laurel fingerboard.
• Playing dimensions: 625 mm scale, 42.86 mm nut width, 305 mm radius, and 22 medium-jumbo frets.
• Electronics: Two Black Top Filter'Tron humbuckers, volume controls, master tone, and a three-way selector.
• Hardware: Anchored Adjusto-Matic bridge, Bigsby B50 vibrato, die-cast machine heads, and nickel-finished hardware.

The guitar does not include a case or gig bag. That is worth factoring into the purchase, particularly if the instrument will be transported regularly. The item number is 619960, and the sales unit is one piece.

Bottom Line

The Gretsch G5230 T EMTC JET FT DCM is defined by its compact 24.6-inch scale, mahogany-and-maple construction, Filter'Tron humbuckers, and Bigsby B50 vibrato. Its published specifications give buyers a useful overview of the materials, dimensions, controls, and hardware, but do not establish its actual sound, factory setup, or performance under playing conditions. With no customer reviews available, those points remain unverified. Check the instrument's setup and confirm the listed price and included accessories with the seller before buying.
