Fender LTD Am Ultra Strat NAT HSS

Fender LTD Am Ultra Strat NAT HSS review

The Fender LTD Am Ultra Strat NAT HSS is a limited-edition, U.S.-made electric guitar with a natural-finish roasted ash body, a roasted maple neck, and a rosewood fingerboard. Its HSS pickup arrangement pairs a Seymour Duncan 59 Trembucker at the bridge with two Fender Custom Shop Texas Special single-coil pickups in the middle and neck positions. The listed price is 2855; no currency is specified in the supplied product data.

Those specifications describe a Stratocaster-style instrument configured with a bridge humbucker and two single coils. The pickup combination offers distinct pickup types within one guitar, while a five-way switch selects among the available pickup settings. The specifications do not state the exact switching combinations or electrical output, so those details cannot be confirmed here.

Body, neck, and fingerboard

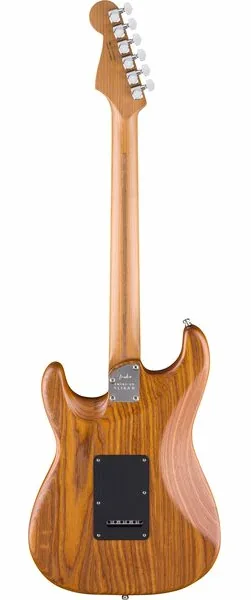

The body is made from roasted ash, with no separate top listed. Its natural color leaves the wood visually prominent, although the product information does not specify the finish type or describe the grain. The pickguard is single-ply black with a brushed aluminum surface, giving the otherwise natural body a contrasting hardware detail.

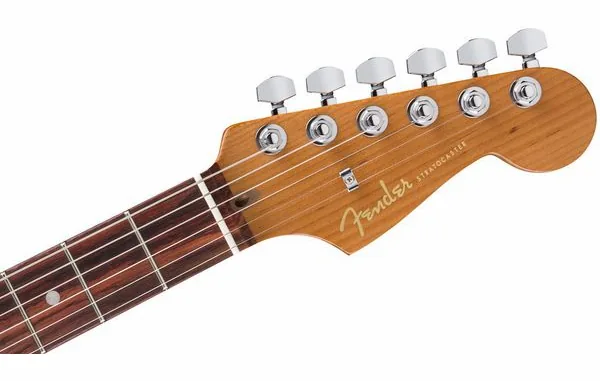

The bolt-on neck is roasted maple, and the fingerboard is rosewood. Fender lists a Modern D neck profile and a compound fingerboard radius that changes from 10 inches to 14 inches, equivalent to approximately 254 to 356 mm. The nut width is 42.8 mm, and the fingerboard carries 22 medium-jumbo frets and 7 mm pearloid dot inlays. A Graph Tech TUSQ nut is fitted.

The 648 mm scale length, also listed as 25.5 inches, is a full-length specification commonly associated with this guitar format. The combination of a compound radius and medium-jumbo frets is clear from the data, but the specifications alone do not establish how the neck feels in hand or how the guitar plays after setup. Those judgments require direct testing.

Pickups and controls

The bridge pickup is a Seymour Duncan 59 Trembucker. The middle and neck positions use Fender Custom Shop Texas Special Strat pickups. Controls consist of one master volume with an S-1 switch, two tone controls, and a five-way pickup selector. The supplied details identify the components and control layout but do not explain the S-1 switch's specific function on this model. That should be verified against Fender's documentation or by testing the instrument.

This setup gives the guitar a humbucker at the bridge and single-coil pickups in the other two positions. It is a useful specification distinction for players comparing HSS models with instruments that use three single coils. No claims about tone, noise level, or output are warranted from the component list alone.

Tremolo and hardware

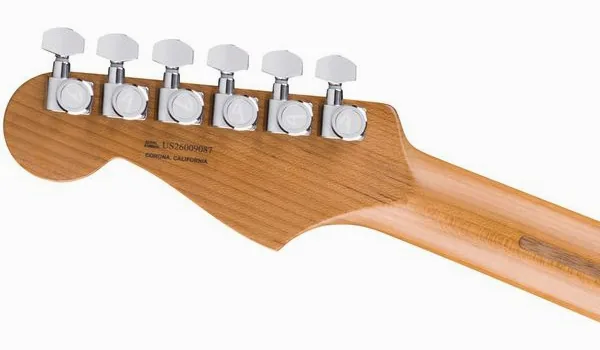

The guitar has a two-point American Ultra synchronized tremolo with polished stainless steel block saddles and a cold-rolled steel block. Fender also lists sealed Deluxe locking machine heads and nickel/chrome hardware. These are concrete hardware specifications, but they do not establish tuning stability under particular playing conditions. Setup, string installation, and playing technique can affect that outcome.

The listed strings are Fender USA 250L nickel-plated steel, in a.009 to.042 gauge set. The product information identifies a two-point tremolo rather than a hardtail bridge, so buyers who prefer a fixed bridge should account for that difference. No additional tremolo accessories are listed.

Included items and buying considerations

A Deluxe molded case is included. The product data also explicitly says that a bag is not included, so the case is the listed protective option. The instrument is identified as a limited edition and made in the United States. Its item number is 647962, and the sales unit is one piece.

No customer reviews are available for this product. This review therefore assesses the published specifications only and does not report owner feedback, hands-on impressions, or independent measurements. Before buying, confirm the current price and availability, and ask the seller about setup, finish details, and the S-1 switch's operation if those points affect your decision.

Bottom line: The Fender LTD Am Ultra Strat NAT HSS is specified with a roasted ash body, roasted maple bolt-on neck, rosewood fingerboard, a Seymour Duncan bridge humbucker, two Texas Special single coils, and a two-point synchronized tremolo. Its 22 frets, 10-to-14-inch compound radius, locking tuners, and included molded case make the configuration easy to compare against other Stratocaster-style models. The published data provides a detailed parts list, but evaluating sound, comfort, and setup quality requires inspecting and playing the individual guitar.
