Fender AV II 72 Tele Thinline MN CAR

Fender AV II 72 Tele Thinline MN CAR: technical review

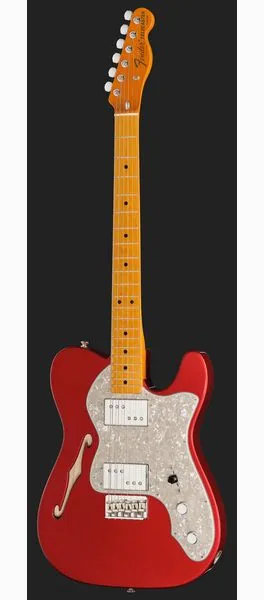

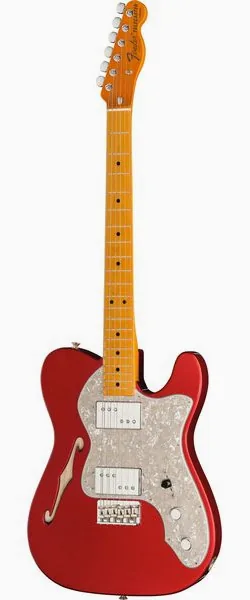

The Fender AV II 72 Tele Thinline MN CAR is a U.S.-made, semi-hollow electric guitar with an ash body, a maple neck and fingerboard, and two CuNiFe Wide-Range humbuckers. Its Candy Apple Red finish and 1972 "C" neck profile identify the model's visual and specification choices, while the fixed bridge keeps the design free of a tremolo system. The listed price is 2,699.

This assessment is based solely on the supplied specifications. No customer reviews or first-hand playing observations are available, so claims about tone, comfort, setup, or build quality in use would go beyond the available evidence.

Body, neck, and dimensions

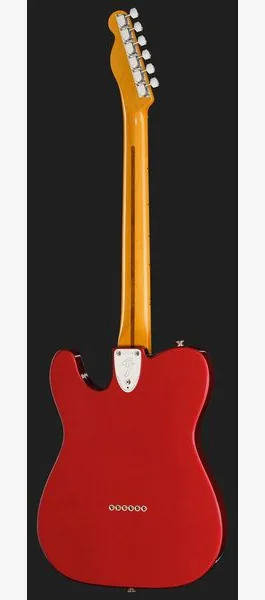

The Thinline semi-hollow body is made from ash, with no separate top listed. The bolt-on neck and fingerboard are both maple. Black dot inlays mark the fingerboard, and the 21 vintage-tall frets provide the stated fret count and fret type. The specs do not give fret dimensions, so the exact height and width cannot be assessed here.

The neck has a 1972 "C" profile. That label identifies the specified shape, but it does not provide measurements for neck depth or shoulder contour. The fingerboard radius is 184.1 mm, or 7.25 inches. The scale length is 648 mm, or 25.5 inches, and the nut is 42 mm, or 1.65 inches wide. A bone nut is specified. These measurements establish the instrument's basic playing geometry without, by themselves, indicating how it will feel to a particular player.

The 25.5-inch scale is the stated long scale measurement for this guitar. Buyers comparing necks should focus on the listed radius, nut width, and profile designation rather than assuming that a familiar model name guarantees a particular feel. The supplied information does not include neck measurements at the first or twelfth fret, action, or factory setup details.

Pickups and controls

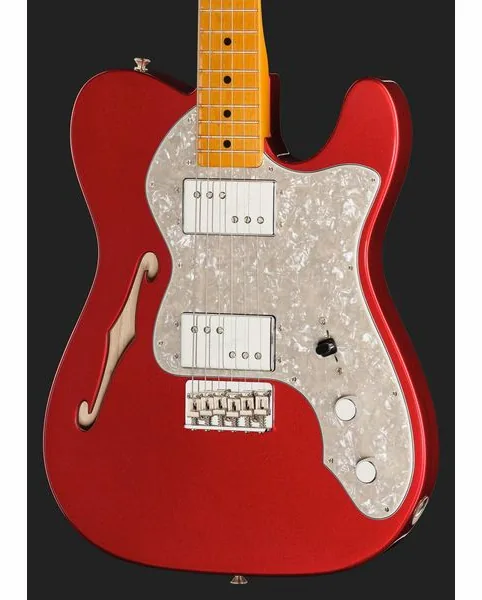

The pickup configuration is HH, with two Authentic CuNiFe Wide-Range humbuckers. Controls consist of one master volume and one master tone control, with a three-way pickup switch. This provides a straightforward control layout with a shared volume and tone circuit. The specifications do not state pickup output, magnet details beyond the CuNiFe name, or measured frequency response. There is not enough information to make reliable claims about the guitar's sound in different amplifier or playing settings.

The supplied data identifies the pickups and switching arrangement, but does not list additional coil-splitting or phase options. No such functions should be assumed. Players who need a particular wiring configuration should confirm it with Fender or the retailer before purchase.

Bridge, hardware, and included case

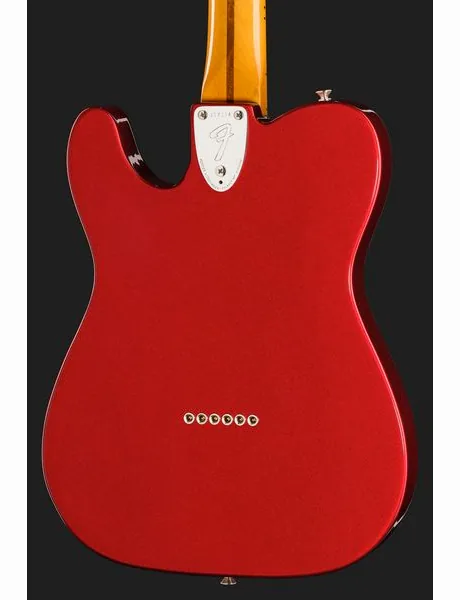

A Pure Vintage six-saddle hardtail bridge anchors the strings through the body. Its saddles are described as curved steel, and the model has no tremolo. The six-saddle layout and through-body string routing are useful points to note when checking compatibility with a preferred setup or replacement parts. Pure Vintage Fender "F" stamped tuning machines are fitted, with nickel and chrome-plated hardware.

The pickguard is a four-ply aged white pearloid design. The factory string set is listed as Fender USA 250R nickel-plated steel, with gauges from.010 to.046. A black vintage-style case with orange lining is included. No gig bag is included, and the product data does not specify the case's weight, dimensions, or locking hardware.

What the specifications establish

• Construction: Ash semi-hollow body with a bolt-on maple neck and maple fingerboard.
• Neck geometry: 1972 "C" profile, 7.25-inch radius, 25.5-inch scale, and 1.65-inch nut width.
• Electronics: Two CuNiFe Wide-Range humbuckers, master volume, master tone, and a three-way switch.
• Hardware: Six-saddle hardtail bridge, through-body string routing, and stamped "F" tuning machines.
• Included item: Black vintage-style case with orange lining.

The listed availability date is June 2026, and the item number is 636519. The sales unit is one piece. Those details may help when checking a listing or confirming the exact configuration. The supplied specifications do not state the instrument's weight, country-specific warranty terms, or setup condition at delivery.

Verdict

On paper, the AV II 72 Tele Thinline MN CAR is defined by its semi-hollow ash body, maple neck and fingerboard, vintage-style neck dimensions, and pair of CuNiFe Wide-Range humbuckers. Its hardtail bridge, through-body stringing, and included case are also clearly specified. That makes the feature set straightforward to compare against another guitar, but it does not substitute for a playing test. Since no customer feedback or hands-on evaluation is available, prospective buyers should verify the instrument's setup and handling in person where possible.
