Fender 1950 Double Esquire HAB

Fender 1950 Double Esquire HAB: technical overview

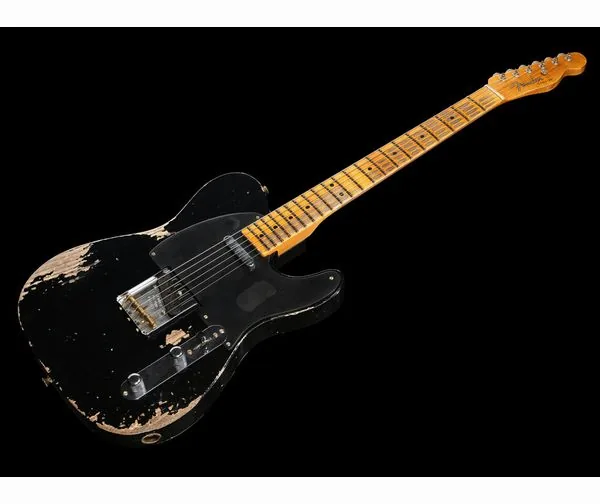

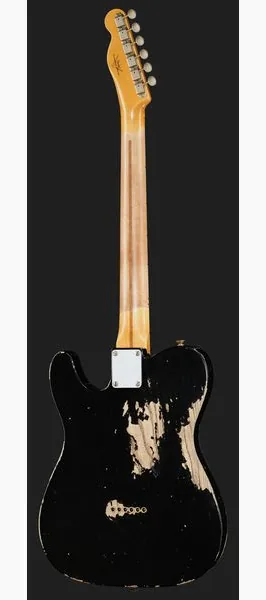

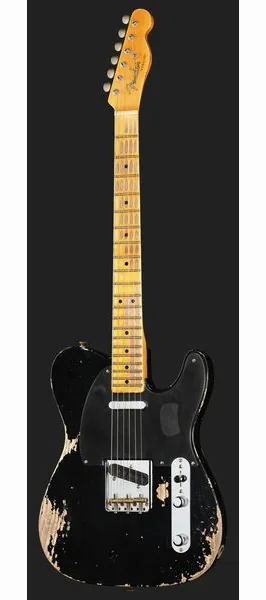

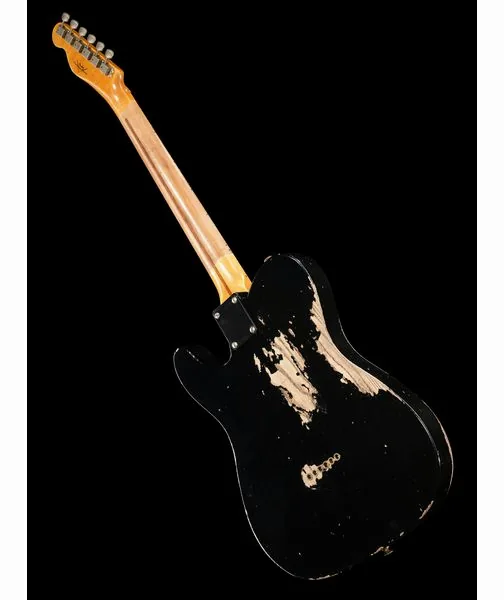

The Fender 1950 Double Esquire HAB is a U.S.-made Custom Shop T-style electric guitar, listed as a 2023 Collection model and available since October 2024. Its specification combines a selected ash body, a quartersawn maple neck, a pair of hand-wound single-coil pickups, and a modified Nocaster circuit. The finish is Aged Black, with a single-ply black pickguard and nickel hardware.

There are no customer reviews available for this product. The assessment here is therefore limited to the published specifications. Those details describe the materials, electronics, and included accessories, but cannot establish how a particular guitar feels or sounds in use. The listed price is 6,222, although no currency is specified in the supplied product data.

Body, neck, and playing dimensions

The body is made from selected ash, while the neck and fingerboard are maple. The neck uses a chunky 1957 soft V profile, a substantial shape compared with slimmer modern neck profiles. That description is useful for identifying its general contour, but individual comfort depends on hand size and playing preference. No neck thickness measurements are provided.

The fingerboard has a compound radius that changes from 7.25 inches to 9.5 inches. The published figures indicate a rounder surface near the lower frets and a flatter one toward the upper frets. Fender lists 21 medium vintage frets and a bone nut. The scale length is 648 mm, equivalent to the familiar 25.5-inch scale used on many T-style guitars.

These measurements provide a clear outline of the instrument, though the specifications do not state the fret dimensions, neck width, or setup at the factory. Those details can affect playing feel and action, so buyers who need them should confirm with the seller before ordering.

Pickups and controls

The pickup configuration is SS, meaning two single-coil pickups. Fender identifies the set as hand-wound '58 single coils. The guitar also has a three-way switch and a '51 Modified Nocaster circuit. The available data does not give pickup output, magnet type, control values, or a position-by-position description of the circuit, so it would be unwise to infer specific tonal results from the component names alone.

The model name includes "Double," and the listed pickup system confirms two pickups. That is a notable element of the specification for an Esquire model, though the product information does not provide a detailed wiring diagram or explain how the modified circuit differs electrically from other Nocaster arrangements.

Bridge and hardware

The bridge is described as a '51-'54 Tele bridge with steel saddles. The specification also lists a string tree and nickel hardware. There is no tremolo system, which is consistent with the fixed-bridge design indicated in the product data. The black pickguard is single-ply, matching the aged-black finish without adding a contrasting multi-layer edge.

Fender does not specify saddle adjustment details, bridge plate dimensions, or hardware finishes beyond nickel. The product listing also gives no weight, an important omission for players comparing instruments for extended standing use.

Case, origin, and purchase details

The package includes a deluxe hardshell case and a certificate of authenticity. A gig bag is not included. The guitar is made in the United States, and its item number is 574776. The sales unit is one instrument. The listing identifies the model as Esquire and its body shape as T-style.

• Body and neck: Selected ash body, quartersawn maple neck, maple fingerboard
• Neck and frets: Chunky 1957 soft V profile, 21 medium vintage frets, bone nut
• Scale and radius: 648 mm scale, 7.25-inch to 9.5-inch compound fingerboard radius
• Electronics: Two hand-wound '58 single coils, three-way switch, '51 Modified Nocaster circuit
• Included items: Deluxe hardshell case and certificate of authenticity

What the specifications establish

The Fender 1950 Double Esquire HAB is defined by its Custom Shop status, aged-black appearance, two-pickup layout, and vintage-oriented neck and fingerboard measurements. The published information is specific about wood, fret count, scale, pickup type, and several hardware details. It is less complete on weight, control behavior, pickup construction, and setup, so those points remain open questions rather than review findings.

For a buyer, the strongest practical next step is to verify the price currency and request the missing measurements from the seller. Since no customer feedback is available and no instrument has been supplied for hands-on testing, conclusions about sound, comfort, workmanship, or value beyond the listed features would go beyond the evidence.
