Evh 5150 Iconic 15W EL34 Top

Overview: The EVH 5150 Iconic 15W EL34 Top

The EVH 5150 Iconic 15W EL34 Top is a tube amplifier head in the Iconic Series, priced at $614 and available since October 2025. Harnessing a single EL34 power tube and two ECC83S preamp tubes, it aims to deliver robust stage tones in a compact package. With two footswitchable channels, punchy output, and ample connection options, it targets guitarists needing serious gain and versatile tone shaping at manageable volumes.

Tubed Power and Circuitry

This amp taps into a traditional British tube flavor with its EL34-equipped power section. The single EL34 power tube brings mid-focused punch and familiar harmonic character, contrasting the more common dual EL84 mini-heads that can sound sharper and heat up quickly. The preamp utilizes two ECC83S tubes (the European designation for 12AX7), providing all the gain structure, dynamics, and saturation associated with the 5150 lineage.

With 15 watts on tap, the amp covers practice rooms to small gigs. This power class lets the output section breathe for richer harmonic content without overwhelming volume levels. Weight is kept friendly at just 8 kg, so transporting the head won't be a chore.

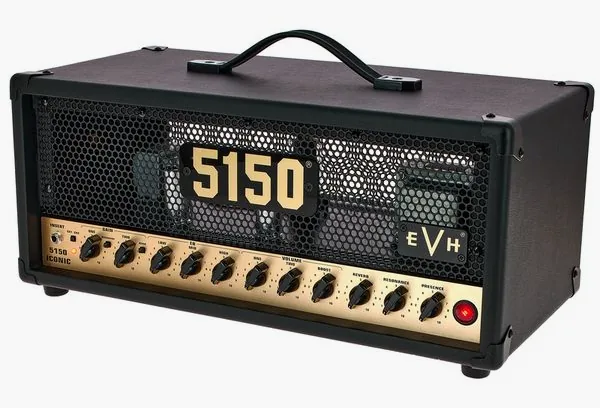

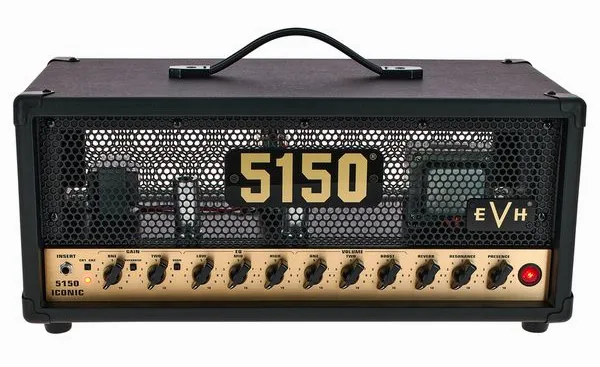

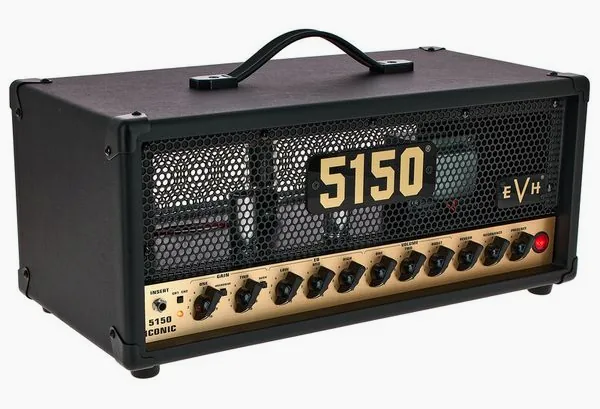

Front Panel and Control Layout

• Channel 1 (Clean/Crunch): Gain with a dedicated overdrive mini-switch for extra grit. This channel gracefully moves from sparkling cleans to a gently cranked edge-of-breakup sound.
• Channel 2 (High-Gain): Gain with a burn switch for even heavier distortion. Like other 5150s, gain reserves are plentiful and easily reach modern metal territory.
• Shared three-band EQ for bass, midrange, and treble.
• Independent volume controls for each channel, allowing good level matching.
• Global master boost switch for added solo presence.
• Global reverb (accidentally listed as present in specs, but unavailable; there is a reverb control but the amp does not feature true onboard reverb).
• Resonance and presence controls alter response and high-frequency character, helping tailor the amp to different cabs or rooms.

The included two-way footswitch allows toggling between the two channels and engaging or bypassing the boost, aiding performance flexibility.

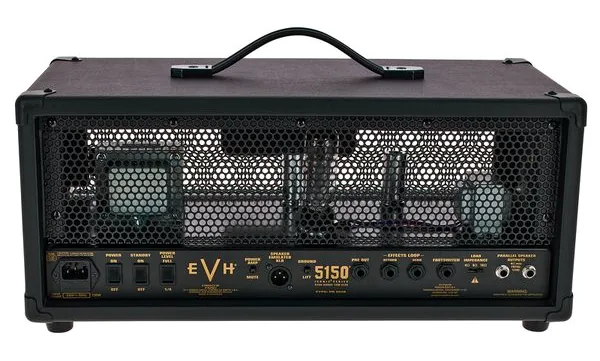

Connectivity and Features

• Send/Return effects loop via quarter-inch jacks, making it easy to integrate delay or modulation effects between preamp and power amp stages.
• Instrument input and preamp output on standard jacks for straightforward rig integration.
• Recording output with speaker simulation via XLR, enabling direct-to-interface or FOH mixing without miking a cabinet.
• Parallel speaker outputs (dual quarter-inch) allow flexible cab setups; running into a 2x12 cabinet provides a rounder, less aggressive projection compared to combos or single 12" cabs.

All connections are logically arranged, with robust and tactile controls housed in a black enclosure that matches the stealthy EVH look.

Practical Impressions from the Field

Users report that the clean channel stands out, with enough clarity for pedal-based setups but the option for mild crunch when pushed. The high-gain channel more than delivers on the 5150 reputation, with cascading gain stages and sustain for aggressive riffing or lead work. Mini-switches for overdrive and burn let players quickly ramp up the intensity without excessive menu diving.

The amp is surprisingly large for a 15-watt head, but noticeably lighter than full-size 100-watt offerings in the same series. This size gives a firmer, more "full-size" feel and presence, especially on top of a 2x12 cab. Despite the affordable price, build quality remains respectable with solid knobs, metal hardware, and a neatly finished shell.

A key difference from larger combos, in particular the 60-watt Iconic, is the absence of an adjustable noise gate. While EVH includes a fixed, subtle circuit for noise reduction, there is no user-accessible control. At high gain settings some hiss is present, which is typical of the breed, but may merit an external gate for studio-style silence if needed.

Volume Handling and Use Cases

On the clean channel, the full 15 watts deliver satisfying headroom and punch. However, switching to the lead channel unleashes substantial sound pressure; players often find themselves dialing down to a quarter-power setting for room-friendly output. This makes the head highly adaptable, workable on big stages with full power, but suitable for households and rehearsal spaces at lower settings.

Comparisons and Value

Those used to combo formats may find the head and cabinet configuration allows a more controlled, less abrasive tonal focus, especially when using larger cabs. The EL34 power section was once a niche feature in mini-heads, now helped by EVH's engineering to bring solid, classic tube response in a more accessible price band.

Critically, at just over $600, this head manages to compete favorably with pricier boutique models, offering both flexibility and a recognizable tonal stamp from a revered high-gain family.

Summary

The EVH 5150 Iconic 15W EL34 Top lands as a strong contender for players needing real tube dynamics, footswitchable flexibility, and high-gain capability in a compact but substantial format. The choice of a single EL34 over twin EL84s yields a broader sound, with more warmth and authority. While the lack of adjustable noise gate will matter to high-gain purists, the overall value and sonic performance make it a convincing option for players who want to channel the 5150 heritage without stadium-sized volume or budget.
