Evh 5150 DX Baked Maple CAR MET
The EVH 5150 DX pairs a roasted maple neck with a feature-rich Floyd Rose system and two Wolfgang humbuckers. It is a strong fit for players who want locking-tremolo performance, though a case must be purchased separately.
★★★★★ 4.5/5 · 2 buyer reviews · 5 min read · updated 2026-10-07 · Tested by Cal Whitaker
Technical review of the Evh 5150 DX Baked Maple CAR MET

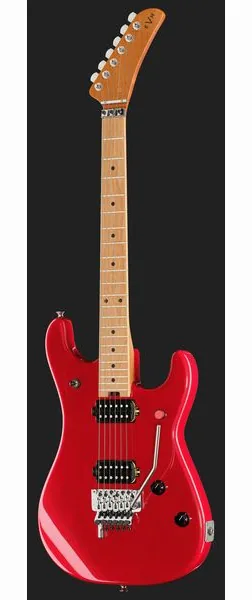

The Evh 5150 DX Baked Maple CAR MET is a solid-body electric guitar with a basswood body, roasted maple neck and fingerboard, two direct-mounted EVH Wolfgang humbuckers, and a Floyd Rose locking tremolo system. Its listed price is $1,025, and the model has been available since March 2026. The Candy Apple Red Metallic finish gives this version its distinctive color designation, while the "Baked Maple" in the product name refers to its roasted maple neck and fingerboard.
The specifications point to an instrument built around stable tuning hardware and straightforward onboard controls. They do not establish how the guitar sounds, feels, or performs in a player's hands. No customer reviews are available, so this assessment is limited to the listed construction and hardware rather than claims about real-world performance.
Body, neck, and playing dimensions

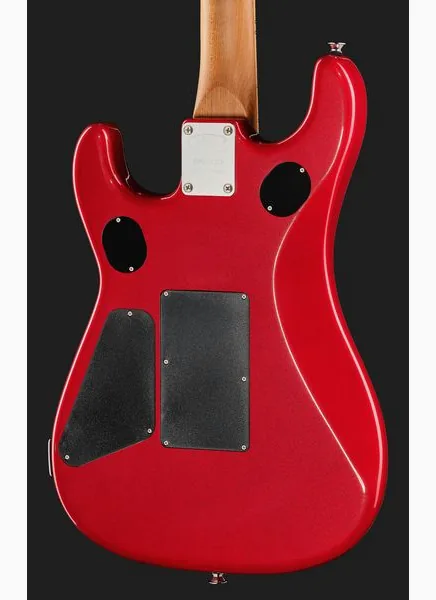

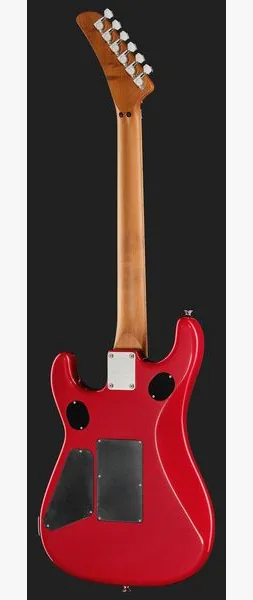

The body is specified as basswood, also identified as linden in the summary specifications. No separate top is listed. The neck is quartersawn roasted maple, attached to the body with a bolt-on joint. The fingerboard is also roasted maple, with black dot inlays and 22 jumbo frets. Those details define the basic construction, but the specifications do not include body weight or a stated neck finish.
The neck profile is an EVH Modified "C" back shape. Its compound fingerboard radius changes from 12 inches to 16 inches, or 304.8 to 406.4 mm. The nut measures 1.6875 inches, or 42.86 mm, and the scale length is 25.5 inches, or 648 mm. These measurements provide useful reference points when comparing the guitar with other instruments, though they do not by themselves determine comfort or playability.
The 22 jumbo frets and compound radius are relevant to setup and playing preferences. The supplied information does not give fret material, fret dimensions beyond the jumbo designation, or factory action measurements. Buyers who need a specific setup should confirm those details with the retailer or arrange an inspection after purchase.
Pickups and controls

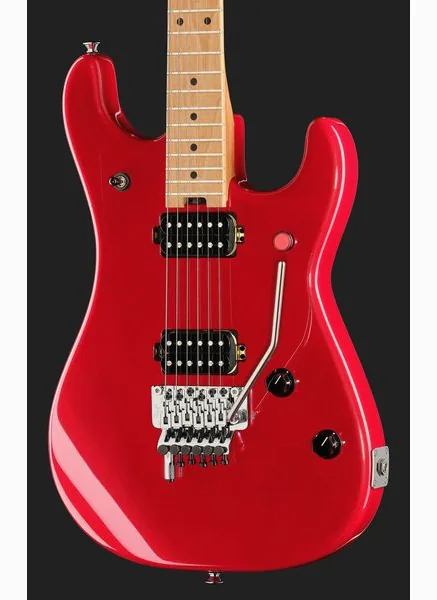

Two direct-mounted EVH Wolfgang humbuckers provide the guitar's pickup configuration. The control layout consists of one volume control with a treble-bleed circuit, one tone control, a three-way pickup switch, and a kill switch. The treble-bleed circuit is part of the volume control specification, but no component values or wiring diagram are provided. The available data likewise does not describe pickup output, magnet type, or individual tonal characteristics.
The three-way switch selects between the pickup options, while the kill switch is a separate control listed in the specifications. Its placement and switching behavior are not detailed. That distinction matters for shoppers comparing control layouts, since the feature list confirms its presence but does not explain its exact operation or ergonomics.
Locking tremolo and other hardware
The guitar uses a top-mounted, EVH-branded Floyd Rose 1000 locking tremolo with an EVH D-Tuna. A Floyd Rose R3 locking nut is also specified. Together, these components identify a locking vibrato setup rather than a conventional fixed bridge. The D-Tuna is included in the listed hardware, but the product information does not describe setup instructions, tuning range, or how the system is configured from the factory.
EVH-branded Gotoh tuning machines and chrome hardware complete the listed hardware package. The strings supplied are EVH nickel-plated steel in.009 to.042 gauge. String gauge is useful setup information, but it should not be treated as a guarantee of the instrument's action or tuning stability. Setup, string changes, and tremolo adjustment can affect how a locking system behaves.
What the specifications establish
- Construction: Basswood body, with no separate top listed, plus a bolt-on quartersawn roasted maple neck.
- Fingerboard: Roasted maple, black dot inlays, 22 jumbo frets, and a 12-inch to 16-inch compound radius.
- Electronics: Two direct-mounted EVH Wolfgang humbuckers, volume with treble bleed, tone, three-way switching, and a kill switch.
- Bridge system: Top-mounted Floyd Rose 1000 locking tremolo, EVH D-Tuna, and Floyd Rose R3 locking nut.
No gig bag or case is included according to the listing. The item number is 636055, and the sales unit is one guitar. For a buyer comparing specifications, the strongest defining points are the roasted maple construction, dual humbuckers, and locking tremolo hardware. The information provided supports those concrete comparisons, but it cannot substitute for a hands-on evaluation or verified customer feedback.
Shipping and duties
The retailer ships from its warehouse in Germany. Prices are shown in US dollars and do not include import duties. Orders under roughly $800 usually clear US customs without duty; above that, a duty of a few percent may be collected on delivery. 30-day money-back and a 3-year warranty apply.
Scores by area
Where it shines, where it stumbles
What convinced me
- Roasted maple neck and fingerboard with a quartersawn neck blank
- Floyd Rose 1000 tremolo, locking nut, and D-Tuna provide extensive pitch control
- Two direct-mount EVH Wolfgang humbuckers with a treble-bleed volume circuit
What bugged me
- No gig bag or case is included
- The locking tremolo may require more setup and maintenance than a fixed bridge
Is it the right one for you?
Good pick if
A good match for rock players who want a locking tremolo, a D-Tuna, and dual humbuckers. Also suited to guitarists who prefer a roasted maple neck and a compound-radius fingerboard.Look elsewhere if
Less suitable for players who want a fixed bridge or minimal setup demands. Also a poor fit for buyers who need a case or gig bag included.Suggested level: Intermediate
Specifications
- Color
- Candy Apple Red
- Body
- Linden
- Top
- None
- Neck
- Roasted Maple
- Fretboard
- Roasted Maple
- Frets
- 22
- Scale
- 648 mm
- Pickups
- HH
- Tremolo
- Floyd Rose
- Incl. bag
- No
- Including case
- No
Up close
Watch and listen
Before you decide
Questions players ask
Does the guitar include a case or gig bag?
No. The specifications state that neither a case nor a gig bag is included.
What kind of tremolo system does it have?
It has a top-mounted EVH-branded Floyd Rose 1000 locking tremolo, an R3 locking nut, and an EVH D-Tuna.
What pickups and controls are fitted?
It has two direct-mount EVH Wolfgang humbuckers, a three-way switch, one volume control with a treble-bleed circuit, one tone control, and a kill switch.
What are the neck and fingerboard specifications?
Both are roasted maple. The neck is quartersawn with an EVH Modified C profile, and the fingerboard has a compound radius of 12 to 16 inches and 22 jumbo frets.
Is this a good choice for a first electric guitar?
It can be played by a beginner, but the locking tremolo and its setup demands may be less convenient for a first guitar than a simpler fixed-bridge instrument.
The last word from the bench
The 5150 DX is equipped for expressive playing, with a Floyd Rose 1000 tremolo, locking nut, and D-Tuna. Its compound-radius roasted maple fingerboard, jumbo frets, and Modified C neck profile provide a clear playing specification, while the two humbuckers and three-way switch keep the control layout straightforward. The listed hardware and pickup features support a focused rock-oriented setup, but the specifications do not establish how the guitar sounds or feels in person. At this price, remember to budget separately for a case or gig bag.
