ESP LTD EC-400 QM VB

ESP LTD EC-400 QM VB: technical overview

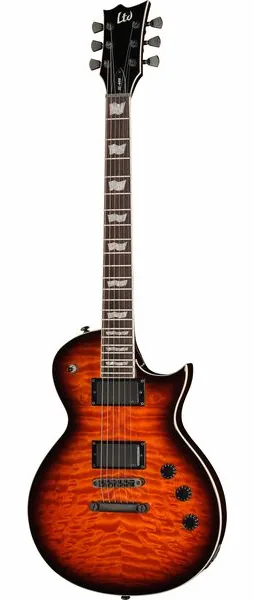

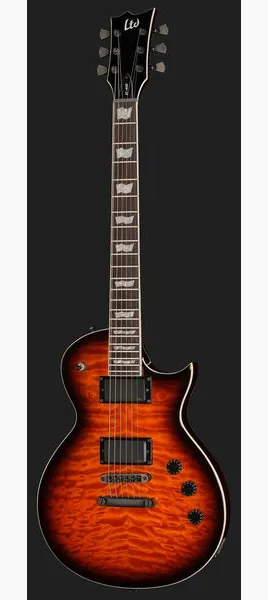

The ESP LTD EC-400 QM VB is an electric guitar listed at $899, with availability beginning in May 2026. Its specification sheet points to a set-neck-free, neck-through construction: a three-piece mahogany neck runs through the mahogany body, with a quilted maple top. The Vintage Burst finish and black hardware complete the stated appearance. No case or gig bag is included, so buyers should account for that separately if they need a storage or transport solution.

This review is based only on the published specifications. There are no customer reviews available for this product, and the listed details do not establish how the guitar sounds, feels, or performs in practice. The build materials, pickup models, dimensions, and hardware can be assessed on paper, but they cannot substitute for a hands-on evaluation.

Construction and playing dimensions

The mahogany body and three-piece mahogany neck form the core of the instrument. A neck-through design places the neck structure through the body rather than attaching it as a separate bolt-on component. That describes the construction, but it does not by itself prove a particular level of sustain, resonance, or access to the highest frets.

The fingerboard is rosewood, with a 350 mm radius and 22 extra-jumbo frets. The 628 mm scale length is also specified as 24.75 inches. Its 42 mm nut width and Thin U neck profile provide useful measurements for comparing the EC-400 QM VB with other guitars, although the figures alone cannot say whether the neck will suit an individual player's hand or preferred setup.

The 22-fret layout is a practical point to note when comparing it with instruments that have more frets. ESP lists no tremolo system. The bridge and tailpiece are a TonePros locking Tune-o-matic assembly, while the tuning machines are locking units identified as LTS. These details establish a fixed-bridge configuration and locking hardware, not a specific tuning stability result under playing conditions.

Pickups and controls

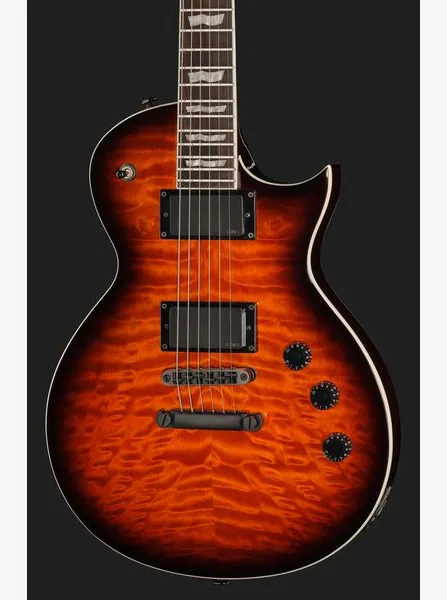

The guitar has two humbuckers: an EMG 85 Black in the neck position and an EMG 81 Black at the bridge. This is an active-pickup configuration, with one pickup assigned to each position. The model names identify the installed electronics, but the provided data does not include output measurements, frequency response, or a description of the sound. Any claim about how they respond with a particular amplifier would go beyond the available evidence.

Controls consist of two volume knobs, one tone knob, and a toggle switch. The listed arrangement gives each pickup its own volume control, alongside a shared tone control and pickup selection. The specification does not clarify whether the tone control is connected to both pickups in every switch position, or describe the switch positions in detail.

What the specifications establish

• Body and neck: Mahogany body with a three-piece mahogany neck-through construction.
• Top and fingerboard: Quilted maple top and rosewood fingerboard.
• Neck measurements: Thin U profile, 350 mm fingerboard radius, 42 mm nut width, and 628 mm scale.
• Hardware: Fixed TonePros locking Tune-o-matic bridge and tailpiece, plus LTS locking tuning machines.
• Electronics: EMG 85 Black neck humbucker, EMG 81 Black bridge humbucker, two volume controls, one tone control, and a toggle switch.
• Included accessories: Neither a case nor a gig bag is included.

Buying considerations

At $899, the EC-400 QM VB combines a neck-through mahogany structure, a quilted maple top, named EMG pickups, and locking bridge and tuning hardware. Those are concrete points for comparison when deciding whether its specification matches a player's requirements. The Vintage Burst finish and black hardware are also clearly identified, while the listed finish name does not specify whether the surface is glossy or matte.

Before buying, confirm the current price and availability, since the listed release date is May 2026 and stock can vary by seller. It is also worth checking setup details, including string action and intonation, because the specification sheet does not provide them. The supplied strings are D'Addario XL110, gauges.010,.013,.017,.026,.036, and.046. No alternate string setup is stated.

The EC-400 QM VB's published data gives a fairly clear picture of its materials, neck dimensions, electronics, and fixed hardware. It does not provide a tested assessment of workmanship, comfort, unplugged response, or amplified tone. With no customer feedback available, those questions remain open until the instrument can be inspected and played in person.
