Engl E766 Marty Friedman Head: Technical Overview

The Engl E766 Marty Friedman Head is a 100-watt tube amplifier designed as the signature model for Marty Friedman. This head sits in the upper range of Engl's lineup and carries all the features expected of a modern professional guitar amplifier, with a focus on high-gain performance and tonal flexibility.

Amplifier Architecture

• Power amp section: The E766 uses four EL34 tubes in the final amplification stage. EL34s are known for their dynamic range, midrange focus, and articulation, qualities often preferred by rock and metal players.
• Preamp section: Four ECC 83 tubes (the European designation for 12AX7s) handle the gain structure and tone shaping. This configuration delivers both the clean headroom and overdriven aggression needed across genres.

Channel Configuration and Controls

This amplifier features two fully independent channels. Each channel has its own three-band equalizer, gain, and volume controls. These allow precise tailoring of sounds for rhythm and lead applications without needing to compromise settings between clean and overdriven tones.

• Gain boost switch: Both channels feature a gain boost, increasing signal saturation for higher gain or added punch when desired. This is useful for switching between rhythm and solo settings on the fly.
• Bright switch (clean channel): The clean channel incorporates a bright switch, adding presence and top-end sparkle. Useful for glassy, articulate cleans or cutting through dense mixes.
• Tone switch (lead channel): The lead channel adds a tone switch, allowing further shaping of the upper frequencies. This additional tone shaping ensures lead sounds remain prominent and defined, even in high-gain settings.

Master Volume and Effects Integration

The amplifier features two independent master volume controls. With a compatible footswitch (Z-3, Z-4, or Z-9), players can toggle between these volumes, ideal for presetting rhythm and solo levels or quickly adjusting stage volume. The secondary master volume adjustment is accessible from the rear panel, which adds flexibility for onstage use.

An effects loop is provided and can be switched from series to parallel operation. This allows integration with both time-based effects and other rack or pedal-based processors, accommodating various signal path preferences.

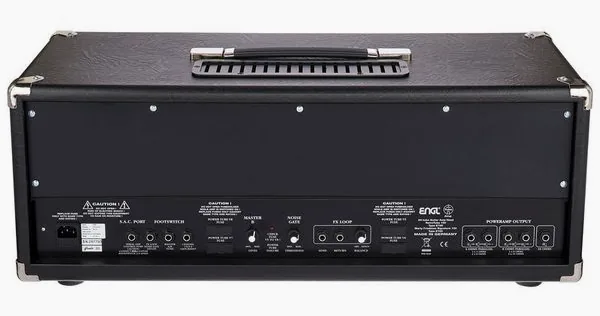

Connectivity and Speaker Options

• Speaker outputs: The amplifier supports multiple cabinet configurations and impedances (single 4-ohm, single 8-ohm, single 16-ohm, dual 8-ohm, dual 16-ohm). This versatility makes it compatible with a wide range of cabinet setups without risk of impedance mismatch.
• SAC port: There is an SAC port, which is standard in modern amplifier heads for advanced switching functions and integration with footswitch controllers from Engl.

No reverb is included, aligning with many modern high-gain heads where external effects or processors are typically used for time-based effects. The amplifier is also sold without a footswitch; buyers wishing to use remote functions must purchase one of the supported models separately.

Construction, Physical Features, and Signature Status

• Dimensions: The unit measures 71 cm wide, 27 cm deep, and 29 cm tall, making it sizable but standard for a 100-watt head.
• Weight: At 21 kg, the head is in line with other tube amps in its class, indicating a robust chassis and substantial iron for transformers, both signatures of professional-grade amplifiers.
• Signature model: This is a licensed signature head for Marty Friedman of Inferno. Its feature set reflects an emphasis on precision control and high-gain performance, meeting the demands of advanced players.

Summary and Suitability

The Engl E766 Marty Friedman Head is tailored for guitarists in need of high-powered, highly configurable amplification. The pairing of four EL34 power tubes and four ECC 83 preamp tubes delivers sonic clarity and headroom with the saturation necessary for aggressive styles. Dual channels, independent EQ, onboard gain- and tone-shaping switches, and footswitch-ready functionality make this a versatile choice for professional live use or studio work.

The lack of onboard reverb and the exclusion of a footswitch may be limitations for some users, but both are industry-standard decisions in high-gain signature amplifiers. At a price of 1,599, it sits within reach of dedicated enthusiasts and working musicians seeking reliability and tonal options without compromise.

The comprehensive speaker output options, flexible effects loop, and channel/volume switching support underline a design that caters to demanding professionals. This amp excels in offering the sound structure and adaptability expected in premium modern amp heads, rooted in Marty Friedman's legacy of technical and expressive guitar playing.
