Electro Harmonix Pico Pitch Fork: Test and In-Depth Review

The Electro Harmonix Pico Pitch Fork is a streamlined, compact pitch shifter pedal designed for players who want a versatile polyphonic effect without the bulk of earlier models. Priced at $191 and released in October 2023, this pedal condenses the core pitch-shifting strengths of the original Pitch Fork into a much smaller footprint, while introducing refined control options and workflow updates. Let's break down what makes this unit stand out, its technical features, and what you can expect in real-world use.

Feature Set and Build Quality

• Polyphonic pitch shifting engine with 10 interval settings
• Three pitch shift modes: Up, Down, and Dual
• Dual mode pairs intervals for musically coherent harmonies
• Volume, Blend, Sweep, and Shift knobs for deep control
• Mode selection via push button
• 51 x 93 x 51 mm chassis, remarkably compact
• True bypass footswitch with switchable latching/momentary control
• 9V DC power supply (included) at 100 mA draw
• Standard 6.3 mm input and output jacks

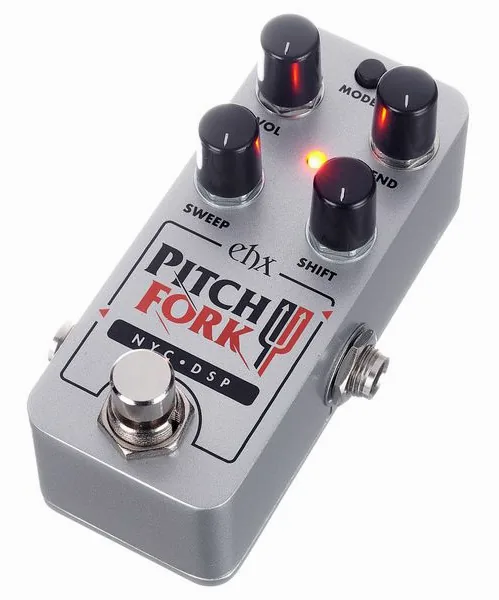

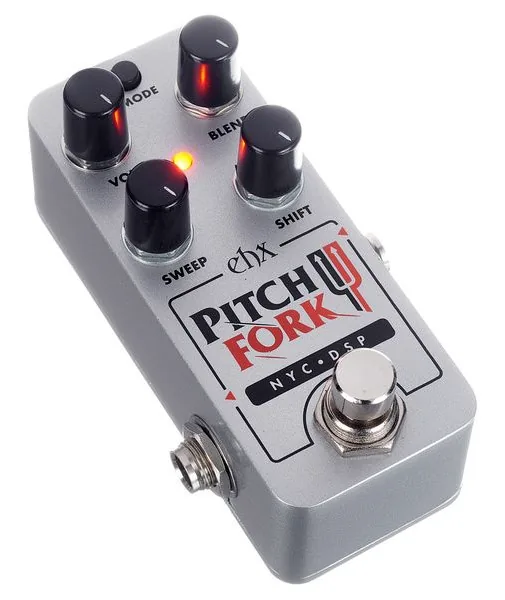

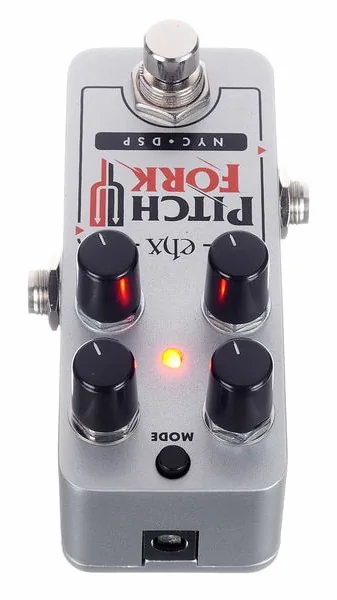

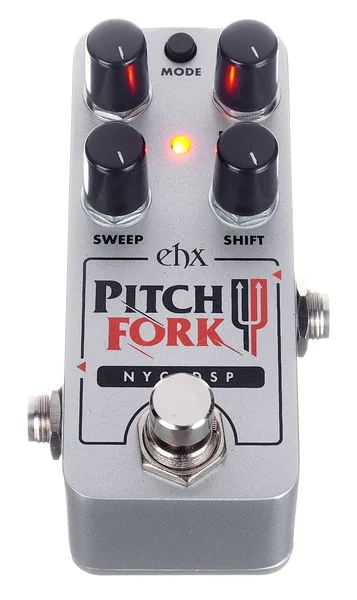

Despite its small size, the Pico Pitch Fork feels sturdy and well-constructed. The all-metal chassis gives reassurance for regular gigging or pedalboard use. Its control layout is necessarily tight, but logical, four rotary controls and one push button cover all primary functions. The LED indicator makes effect status obvious onstage.

Pitch Shifting Performance

The core of the Pico Pitch Fork is its polyphonic pitch shifting algorithm. With ten selectable intervals ranging from minor second to two octaves, the pedal offers options for harmonies, octave doubling, sub-octave, and special effect sounds. Modes include Up (shifts the signal higher), Down (shifts lower), and Dual (mixes two pitch-shifted voices). The Dual mode stands out for its well-tuned interval pairings, which open up creative harmonization without introducing dissonance.

Players report the tracking is quick and accurate, even with complex chords or fast melodic runs, critical for polyphonic shifting. The effect remains stable with both guitar and bass; octave-down settings are mentioned as particularly useful for heavy music styles. Some users compare the tonal character to other Electro Harmonix Pico models, noting this unit's sound is slightly brighter and less warm than the Pico POG, but still musical and clear.

Controls and Practical Adjustments

The four control knobs work as follows:

• Volume: Sets output level, keeping blended signals balanced.
• Blend: Adjusts wet/dry mix, dial in subtlety or full effect.
• Sweep: Determines the speed for pitch transition in whammy-style applications, useful for expressive playing. Unlike the original Pitch Fork, the Pico version puts this control directly on the pedal, eliminating the need for an external expression pedal.
• Shift: Selects interval/pitch setting.

One minor but significant limitation mentioned by users is the lack of labeling around the Shift dial. Since there are ten intervals but no visual guide on the face of the pedal, users must memorize positions or refer to the manual. This can be a drawback if you're making frequent interval changes mid-set, it definitely slows down initial setup, especially for pedalboard tap dancers who value fast, glanceable adjustments.

The Mode push button cycles through Up, Down, and Dual, with the LED providing a simple indication of which is active. The footswitch can be set for latching or momentary operation, which is practical for whammy or dive-bomb effects on the fly. The pedal powers from a standard 9V DC adapter (included), making it compatible with most modern setups, and power consumption remains reasonable at 100 mA.

Sound and Reliability in Context

Most field reports are positive regarding tracking, tonal clarity, and ergonomic improvements over the original Pitch Fork. Players highlight the practicality of the Sweep control for whammy use and praise the elimination of the expression pedal requirement. It is especially lauded for handling polyphonic material, clean note separation, and comfort on both guitar and bass. However, some players find the sound character leans brighter compared to the Pico POG, which may influence genre suitability.

On the downside, the unmarked Shift knob is a recurring criticism, as is the price, some users feel the pedal sits at a premium considering its size and niche function, wishing for a lower cost. Still, the inclusion of a power adapter adds value, and reliability in both construction and performance draws strong marks overall.

Final Verdict

The Electro Harmonix Pico Pitch Fork achieves much in a remarkably compact enclosure. Its polyphonic pitch shifting is musical and glitch-free, with flexible modes and hands-on control options rarely seen at this size. For players prioritizing pedalboard space and one-knob control over expression pedal functionality, it delivers key improvements over legacy models. While the lack of labeling on the Shift knob and the $191 price tag may frustrate some, the Pico Pitch Fork stands as one of the most capable micro-format pitch shifters available in 2024.
