Electro Harmonix BASS9 Bass Machine

Overview and Positioning

The Electro Harmonix BASS9 Bass Machine sets out to bridge the gap between guitars and basses by transforming an electric guitar signal into nine distinctive bass tones. Listed at $189 and introduced in mid-2019, the BASS9 gives guitar players quick access to credible low-end voices without switching instruments or investing in a separate bass setup. Its main audience is guitarists who need occasional bass lines for looping, home recording, or performance setups, particularly where space and budget limit full bass gear investments.

Technical Build and Controls

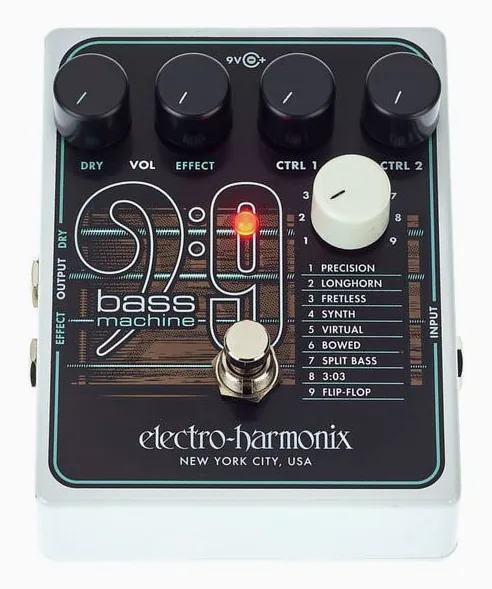

The enclosure is compact (4 x 4.8 x 3.5 inches), with Electro Harmonix's typical robust steel chassis. Connections include a standard quarter-inch jack for input, plus two separate outputs: "Effect Out" for your processed bass sound and "Dry Out" for unaltered guitar. Having independent "Dry Volume" and "Effect Volume" controls allows exact blending, which is key when balancing clean and processed signals or routing them to separate amps. The five-knob panel features:

• Dry Volume: Sets the clean instrument level.
• Effect Volume: Controls the processed bass output.
• Control 1 & Control 2: Their function changes with the currently selected preset, allowing for tone, attack, octave blend, or effect-specific tweaks.
• Preset Selector Switch: Rotates through the nine bass types.

The pedal requires a 9V DC supply (included), drawing 100 mA. There's no option for battery operation. It only works with mono cables and requires a negative center power polarity.

Preset Library and Sound Palette

The BASS9 offers these nine voices:

• Precision: Classic electric bass timbre based on the famous split-coil instrument.
• Longhorn: Modelled on a distinctive short-scale bass known for punchy lows.
• Fretless: Slides and expressive "mwah" emulation, ideal for smoother lines.
• Synth: Squarewave-style synth-bass suitable for electronic or retro tones.
• Virtual: Modern, versatile electric bass simulation.
• Bowed: Mimics orchestral upright bass, ideal for ambience or string-section lines.
• Split Bass: Allocates bass to lower notes, preserving the guitar's higher register unaltered.
• 3:03: Vintage analog bass synth flavor reminiscent of classic dancefloor sounds.
• Flip-Flop: Heavy synth bass with a built-in sub-octave effect.

Each preset responds to nuance and guitar type. For truly convincing results, users are encouraged to experiment with pickups (neck positions often track better), picking technique, and on-pedal EQ tweaks. The ability to dial in or out the direct signal and EQ makes it possible to blend subtle support bass lines, go 'full wet' for solo bass work, or split signals for combined pedalboard chains.

Sound and Tracking Performance

The BASS9's central strength is in real-time pitch shaping and tracking. The revised algorithm supports convincing transpositions up to two octaves below your input signal with noticeably improved latency and accuracy compared to earlier digital pitch-shifters or standard octave pedals. For single-note runs and typical bass lines, the response is nearly instantaneous, with little lag or glitching when played cleanly. Tracking is precise with good articulation, especially for the "Precision" and "Virtual" voices.

The synth and bow voices are more specialized, and some users found them less consistent, particularly in terms of note onset and realism for extended techniques (slides, slaps, ghost notes). Complex chords tend to confuse the processing, with occasional digital artifacts or garbled output, true polyphony remains limited and best results come from single-note playing. The Split Bass preset aims to add bass only to your guitar's lowest strings, but depending on calibration and guitar technique, accidental triggering of upper strings can introduce mud or unwanted tones.

Workflow, Studio and Live Scenarios

The BASS9 excels for loopers and solo musicians. It makes quick work of building bass foundations with a guitar, which is valuable for one-person recording setups or duos. The Dry output lets players send guitar and bass through separate amps or individual pedal chains, an asset for duo or trio bands lacking a dedicated bassist. The pedal's layout is straightforward, with labeling that remains legible under stage light, though the main footswitch is smaller and stiffer than average, which can be distracting if you're used to broader stompbox switches.

For studio users, the BASS9 delivers good enough sound quality to blend in mixes, especially for demo work, layering under arrangements, or for bands covering bass duties on the fly. However, advanced control options are notably absent: there's no MIDI, no preset save/recall, and no option for expression pedal assignment. The lack of a battery compartment means pedalboard or mains power is mandatory. A few users cite the included manual being provided in German, but translations circulate online.

Sound Quality and Limitations

Most guitarists report a "convincing" bass feel with the "Precision" and "Virtual" settings, the fundamental is deep, with realistic decay and (for the Precision mode) subtle fret or finger artifacts. The "Longhorn" and synth bass types are more divisive; their intentionally synthetic or vintage textures may not fit every genre. The pedal does not produce miraculous results if your input guitar tone is thin or noisy, since the input's characteristics heavily influence the output.

Slap and pop techniques, extreme glissandos, and aggressive muting can reveal the pedal's synthetic origins. Some presets introduce background noise or digital "hiss" at high effect settings, and a few users report a brief transients or ambiguous pitch at the very start of new lines, the algorithm takes a millisecond to "lock on" to attack and pitch, which can feel unnatural if you expect the snap of a plucked string. Live, these issues mostly fade into the background mix; for critical studio tracking of lead bass parts, they may prove limiting.

Final Verdict

The Electro Harmonix BASS9 Bass Machine fills a niche for guitarists seeking to sketch out bass lines on their main instrument, and does so with above-average realism and tracking for its category. The most realistic voices are genuinely useful for loops, demos, and live support. The pedal rewards careful technique and some setup time with versatile results, but does not fully replace a real bass in terms of touch, punch, or groove. Absence of MIDI, expression control, or preset memory makes it less suited for complex live rigs. At $189, it's a creative and fun tool, especially for one-instrument artists or space-strapped setups, though its specialized nature means it won't meet every musician's needs. For flexible, quick bass solutions built on the foundation of your guitar, the BASS9 delivers.
