Dean Zelinsky Private Label Dellatera ATW Blonde Flame

Dean Zelinsky Private Label Dellatera ATW Blonde Flame review

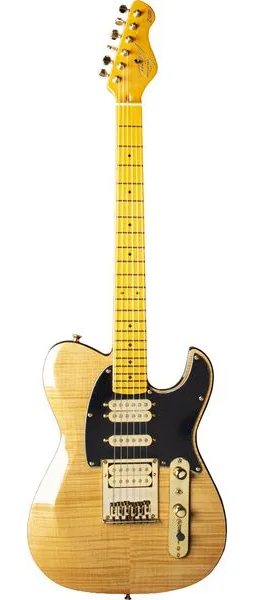

The Dean Zelinsky Private Label Dellatera ATW Blonde Flame is an electric guitar built around a three-pickup HSH layout, a maple neck and fingerboard, and an alder body topped with flamed maple. Its listed price is 1599. The supplied specifications describe the materials, dimensions, switching, and hardware, but do not include a case or gig bag. No customer reviews are available, so this assessment is limited to the stated features rather than playing impressions or long-term reports.

Body and neck construction

The body uses alder, with a flamed maple top and a Blonde Flame finish. The specifications do not give the top's thickness or describe whether the maple is a veneer or a thicker cap, so those details cannot be assessed from the available information. A three-ply pearl pickguard covers part of the front and provides a contrasting visual element.

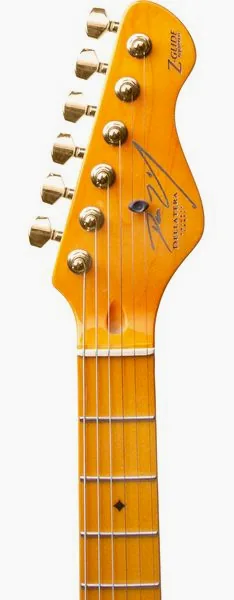

The maple neck is attached with a bolt-on joint. Its patented Z-Glide profile is the named neck shape, but the manufacturer's profile dimensions and a detailed description of its surface are not supplied. The fingerboard is also maple and has dot inlays. It uses a compound radius that transitions from 241 mm (9.49 inches) to 305 mm (12.01 inches). The published figures establish the radius range, though they do not specify at which fret each end of that range is measured.

The instrument has 22 medium-jumbo frets. Its scale length is 648 mm (25.51 inches), and the nut width is 43 mm (1.69 inches). The nut is made from TUSQ. These measurements give a useful outline of the neck's layout, while fret material, fret dimensions beyond the category, and setup measurements are not listed.

Pickup layout and switching

The HSH configuration consists of two DZPL SideKick humbuckers, positioned at the bridge and neck, with a DZPL Matched single-coil in the middle. This combination provides two humbucking positions around a single-coil middle pickup. The specifications identify the pickup models and locations, but do not provide output, magnet type, or electrical resistance figures.

A five-way switch selects pickup combinations. The volume control has a push-pull function for splitting the neck humbucker, while the tone control has a separate push-pull function for splitting the bridge humbucker. A mini toggle switch adds phase inversion. The listed controls therefore allow the two humbuckers to be split independently and provide an additional phase option. The available information does not state the exact pickup combinations assigned to each five-way position or which pickups are affected by phase inversion.

This is a relatively involved control arrangement compared with a guitar that offers only a pickup selector and standard volume and tone controls. Buyers should consult a wiring diagram or seller for the precise switching behavior before purchase, particularly if a specific combination is important to their setup. No wiring diagram is included in the provided specifications.

Bridge, tuning hardware, and finish details

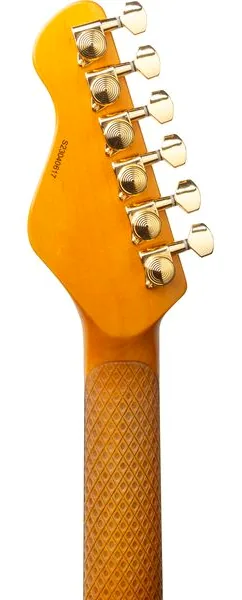

The Dellatera ATW has a six-saddle bridge and no tremolo. That distinction matters for players choosing between a fixed bridge and a vibrato system, but the specifications do not give the bridge's manufacturer, saddle material, or adjustment range. The tuning machines are DZPL locking models with a stated 20:1 gear ratio. The hardware is gold-plated. The data does not identify the plating thickness or provide information about corrosion resistance or long-term durability.

What the specifications establish

• Construction: Alder body, flamed maple top, bolt-on maple neck, and maple fingerboard.
• Neck dimensions: 648 mm scale, 43 mm nut width, and a compound radius from 241 mm to 305 mm.
• Electronics: Two humbuckers, one middle single-coil, a five-way switch, two push-pull controls, and a phase-inversion mini toggle.
• Hardware: Six-saddle bridge without a tremolo, locking tuning machines with a 20:1 ratio, and gold-plated components.
• Included accessories: No case or gig bag is listed.

Verdict

The published specification sheet presents the Dean Zelinsky Private Label Dellatera ATW Blonde Flame as a fixed-bridge electric guitar with a broad set of pickup controls, a compound-radius maple fingerboard, and locking tuners. Its strongest documented point of distinction is the combination of independently split bridge and neck humbuckers with a middle single-coil and phase inversion. The sheet leaves important practical questions unanswered, including the exact five-way switch map, pickup output, setup, and top construction details. At a listed price of 1599, buyers should confirm those points with the seller and check whether the absence of a case or bag affects their needs.
