Charvel Pro-Mod Plus SanDimas FR EB SW

Charvel Pro-Mod Plus SanDimas FR EB SW review

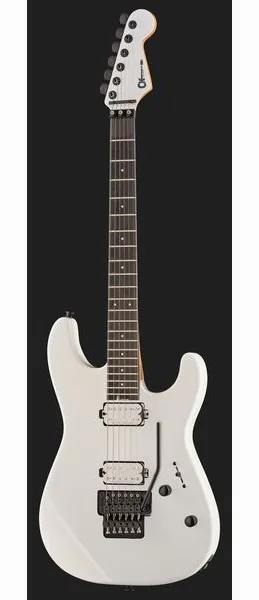

The Charvel Pro-Mod Plus SanDimas FR EB SW is a 22-fret electric guitar built around an alder body, a bolt-on maple neck, two Seymour Duncan pickups, and a Floyd Rose bridge. It was listed as available from April 2025, with item number 609267 and a listed price of 1,079. The finish is Snow White, with black hardware. A gig bag is included; a hard case is not.

Its specification sheet has one point worth checking before purchase: the summary lists an ebony fingerboard, while the detailed specifications identify rosewood. Those materials are not interchangeable, so confirm the fingerboard on the specific guitar or with the seller. The supplied player feedback mentions additional features, but they are not confirmed in the specification list and are not treated here as standard equipment.

Neck and playing feel

The maple neck is bolted to the alder body, and the scale length is 648 mm, or 25.51 inches. The fingerboard radius is compound, changing from 12 inches to 16 inches. That flatter upper radius is commonly chosen to accommodate bends and lower action toward the higher frets, while the rounder end can feel more comfortable for chord work. The guitar has 22 jumbo frets and a nut width of 42.9 mm.

One player specifically praised the rounded fingerboard edges, saying they made a noticeable difference compared with several other guitars they had tried. That is useful hands-on feedback, though edge treatment can vary in how much it matters to an individual player. The supplied specifications do not describe the neck profile, so there is no basis here to label it with a particular contour or claim how thick it feels in hand.

Pickups and controls

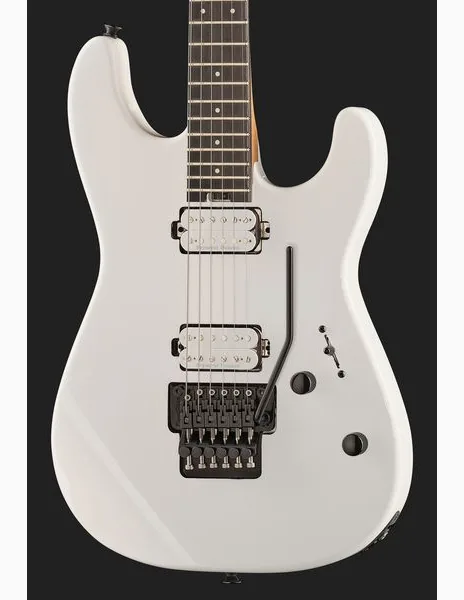

The bridge pickup is a direct-mounted Seymour Duncan JB TB-4, paired with a direct-mounted Seymour Duncan '59 SH-1N at the neck. This is a high-output bridge and vintage-style neck pairing, giving the guitar distinct pickup voices rather than two identical units. The control layout is straightforward: a three-way pickup switch, a volume control using a Bourns low-friction potentiometer, and a no-load tone control.

The low-friction volume control is intended to turn with less resistance than a conventional pot. The no-load tone control can be taken out of the circuit at its maximum setting, which may suit players who want the tone control to have less effect when fully open. The available information does not specify switching options beyond the three-way selector, so coil splitting or other alternate pickup modes should not be assumed.

Floyd Rose and tuning stability

A Floyd Rose bridge is central to this guitar's appeal for players who use the vibrato arm extensively. One owner bought it for recording an album and reported that it held tuning very securely after setup. That is a positive account from a single instrument, not a guarantee that every example will behave identically. String changes and tuning adjustments on a double-locking system also take more work than on a fixed bridge, especially for players new to this design.

The same owner noted that some initial adjustment was needed, including neck relief and bridge height. They described the work as manageable and said the guitar performed very well afterward. This is a practical point for buyers: allow time for a proper setup, or budget for a technician if you are not comfortable adjusting the neck and floating bridge yourself. The listed factory strings are nickel-plated steel in.009,.042 gauge.

Verdict

The Pro-Mod Plus SanDimas FR EB SW puts its budget toward a recognizable set of performance-oriented components: an alder body, a compound-radius fingerboard, jumbo frets, Seymour Duncan pickups, and a Floyd Rose bridge. Its controls are uncomplicated, and the included gig bag is useful for transport, though it is not a substitute for a hard case if the guitar will face rough travel.

The strongest real-world endorsement in the supplied feedback is the report of dependable tuning after setup, along with praise for the fretboard edges and overall value. The main cautions are the possibility of initial adjustment and the conflicting fingerboard material in the supplied specifications. Confirm that detail with the seller, then try the neck and bridge in person if possible. For a player seeking a Floyd Rose-equipped Charvel in this price range, the listed features and owner feedback make it a credible option, provided the individual instrument is set up correctly.
