Charvel Am NC SD1 HH FR GBLK

Charvel Am NC SD1 HH FR GBLK review

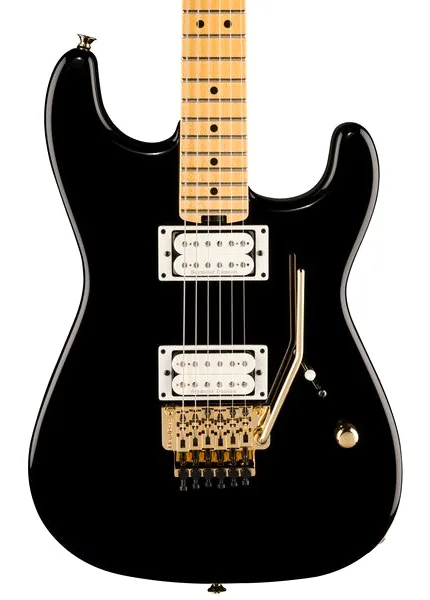

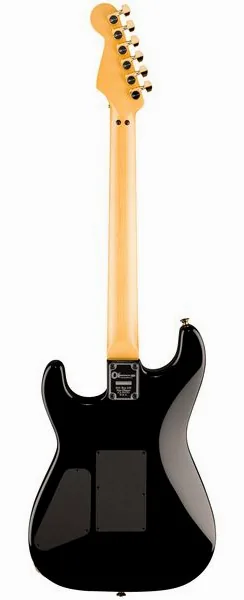

The Charvel Am NC SD1 HH FR GBLK is a U.S.-made electric guitar with an alder body, a maple neck and fingerboard, two Seymour Duncan humbuckers, and a top-mounted Floyd Rose double-locking tremolo. Its listed price is $2,475. The specification sheet describes a performance-focused instrument with a locking nut, stainless steel frets, and gold-plated hardware. It does not include customer reviews, so this assessment is limited to the supplied construction and component details.

Body and neck construction

The body is made from alder and has a black high-gloss finish. There is no separate top listed. Alder is a common solid-body guitar wood, but the available specifications do not state the body's weight, contouring, or exact construction details. Those points cannot be assessed from the listed materials alone.

The maple neck is bolt-on, and the fingerboard is also maple. Black dot inlays provide position markers. The fingerboard uses a compound radius that changes from 12 inches near the nut to 16 inches farther up the neck. This flatter upper radius can accommodate lower string action for bends, while the rounder section near the nut follows a familiar shape for chord work. Actual comfort depends on setup and personal preference.

The nut measures 1.6875 inches wide, or 42.86 mm. The scale length is 648 mm, equivalent to 25.5 inches. Charvel lists 22 jumbo stainless steel frets. Stainless steel is generally more resistant to wear than standard nickel-silver fret wire, although fret feel and maintenance still depend on playing style and setup. No neck profile or neck thickness measurements are provided.

Pickups and controls

The guitar pairs a Seymour Duncan JB TB-4 at the bridge with a Seymour Duncan '59 SH-1N at the neck. Both are humbuckers. The bridge model is the trembucker version of the JB, while the neck position uses the '59 model. The supplied information identifies the pickup models but does not give output measurements, magnet details, or switching combinations, so specific tonal results would be speculation.

Controls consist of one volume knob and a five-way switch. The volume control uses a 500K EVH Bourns low-friction potentiometer. The five-way switch offers several selectable settings, but the available data does not document the wiring or explain what each position does. Buyers who need a particular coil-splitting or pickup-combination arrangement should confirm the switching details with Charvel or a retailer before purchase.

Floyd Rose hardware

A top-mounted Floyd Rose 1000 Series double-locking tremolo is paired with a Floyd Rose 1000 Series locking nut. The system clamps the strings at both ends to help maintain tuning when using the tremolo. Its practical benefit depends on correct setup, string installation, and adjustment. A double-locking system can also take more time to restring and tune than a fixed bridge, and changing tunings may require additional setup work.

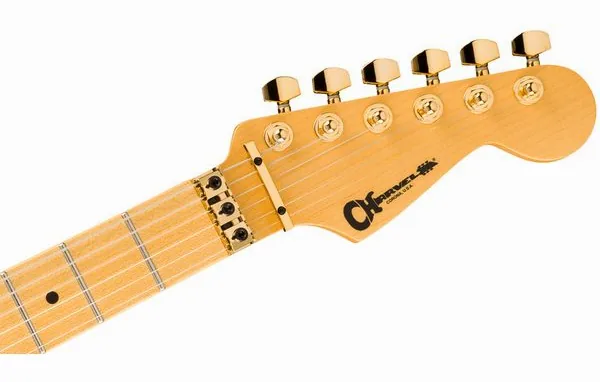

The guitar has Charvel-branded die-cast tuning machines and gold-plated hardware. The strings are nickel-plated steel in a.009 to.042 gauge set. That gauge is a familiar light setup, but the supplied specifications do not state whether the instrument ships with any particular action or tremolo adjustment.

What the specification supports

• Construction: Alder body, bolt-on maple neck, and maple fingerboard.
• Playing surface: Compound 12 to 16 inch radius, 22 jumbo stainless steel frets, and a 42.86 mm nut.
• Electronics: Seymour Duncan JB TB-4 bridge humbucker, '59 SH-1N neck humbucker, one volume control, and a five-way switch.
• Hardware: Floyd Rose 1000 Series double-locking tremolo and locking nut, with gold-plated hardware.

These specifications make the Charvel a clear option for players seeking a 25.5-inch scale guitar with a locking tremolo and a dual-humbucker layout. They do not establish its sound, weight, setup quality, or long-term reliability. Those factors would require a hands-on inspection or independent testing of a production example.

Verdict

The Charvel Am NC SD1 HH FR GBLK has a well-defined component package: an alder and maple construction, stainless steel frets, Seymour Duncan humbuckers, and Floyd Rose 1000 Series locking hardware. The compound-radius fingerboard and light-gauge strings add useful setup context, while the five-way switch's exact functions remain unspecified. At $2,475, buyers should verify the wiring, fit, and setup on the actual instrument. A Charvel Multi-Fit Foam Core case is included; a gig bag is not listed as included.
