Boss DM-101 Delay Machine

Overview

The Boss DM-101 Delay Machine stakes its claim in a crowded effects market by combining deeply authentic analog delay with modern digital convenience. At $368, it is positioned as a high-end solution for players who crave both the unmistakable warmth of bucket brigade devices and flexible preset management, in mono or true stereo setups.

Construction and Design

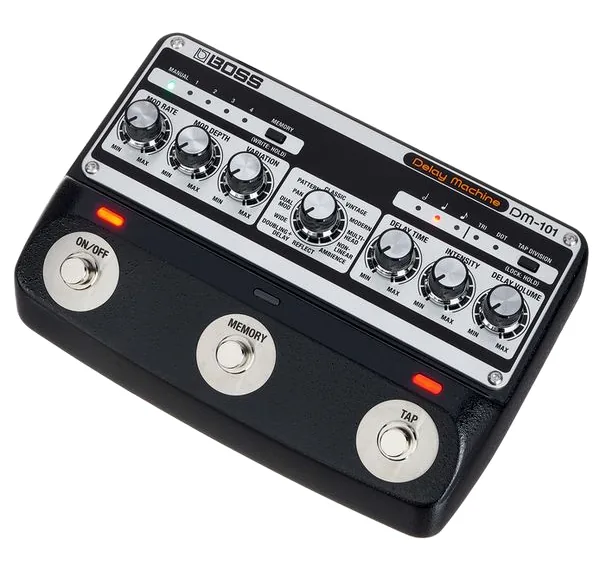

The DM-101 makes a strong first impression with its robust metal chassis weighing in at 830 grams (about 1.8 pounds). The pedal measures 192 x 133 x 52 mm, so it is larger than a standard compact pedal but still fits without fuss on a standard pedalboard. The heavy-duty construction and high-quality knobs and footswitches match what you'd expect at this price, with clear, responsive controls that are easy to adjust on the fly, even in dimly lit environments.

Circuitry: Pure Analog Meets Digital Precision

At the heart of the DM-101 are eight bucket brigade device chips, controlled via digital processor technology. The delay path itself remains fully analog, preserving signal integrity and providing that classic, lush decay associated with vintage units. The digital brain enables access to 12 distinct delay modes, from tape and classic analog emulations to more experimental settings like reflection, pattern, wide stereo, and dual modulation. This hybrid architecture allows for 127 preset memories, MIDI control, and detailed stereo operation, an impossible combination in a purely analog unit.

Inputs, Outputs, and Connectivity

The DM-101 is designed for studio and stage flexibility. It offers:

• 6.3 mm (quarter-inch) mono input
• Two 6.3 mm outputs for stereo operation
• A combined 6.3 mm control/expression pedal jack
• MIDI in and out via 3.5 mm stereo mini jacks
• USB Micro B for potential updates or control
• 9V DC power supply (adapter included); no battery option

This combination delivers wide compatibility, from traditional guitar rigs to modern MIDI-based pedalboards or synth studios. The pedal sums input to mono unless two signals are presented, a detail to consider for users with complex routing demands.

Usability and Live Performance Features

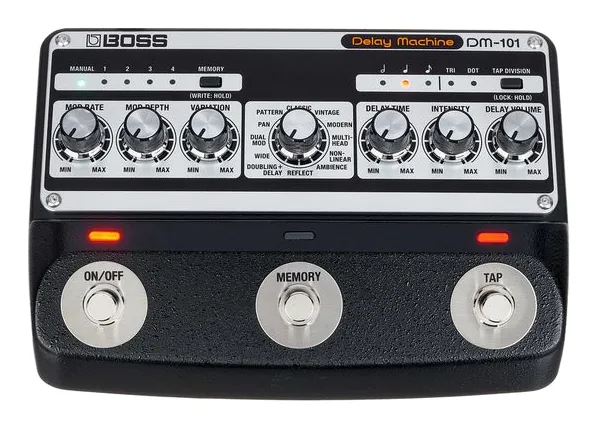

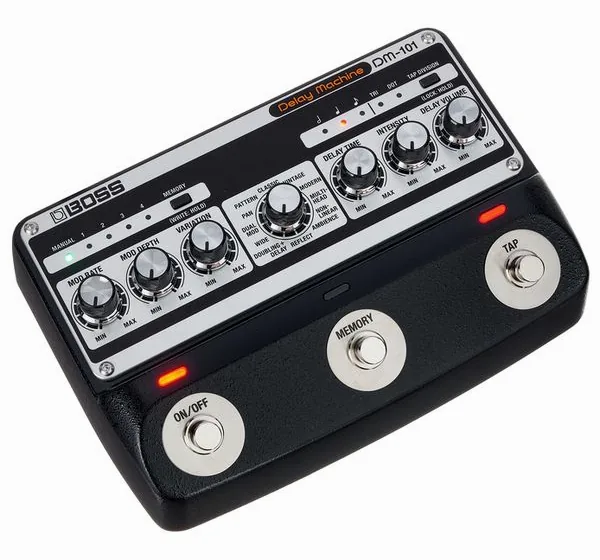

The top panel offers six knobs for fast access to all core functions: modulation rate, modulation depth, variation, delay time (up to 1.2 seconds), feedback, and wet/dry balance. A rotary switch cycles through all 12 delay modes, each distinctly voiced; users can further adjust via the variation knob for nuances within each setting.

Four front-panel footswitches provide instant access to memory slots alongside manual and tap tempos. Tap division can be easily adjusted via dedicated button, facilitating precise rhythmic placement. Despite the massive memory (127 total), only four are directly accessible via footswitch onboard. Detailed preset switching and channel changes are possible via MIDI or external controllers.

Sound Quality: Analog Depth, Stereo Imaging

The core appeal is the DM-101's sound: its delays are shockingly musical, with clear repeats that retain warmth and body even at maximum time settings. This is a leap beyond typical analog units, most of which degrade significantly past 300 ms; the DM-101 reaches up to 1.2 seconds while holding its character largely intact. Stereo modes, especially panning or pattern settings, create expansive sound worlds that are rare in analog delays. Modulation is smooth and wide-ranging, from gentle chorus shimmer to swirling vibrato, matching or exceeding venerated classics like the Deluxe Memory Man. If you crave tape or multi-head delay textures, the DM-101 is uncommonly rich; its "multi-head" setting, in particular, recalls the rhythmic complexity of classic tape units, but with a warmer, more organic edge.

Feedback control is highly musical, supporting both subtle ambiance and wild oscillations without becoming unruly or harsh. Musicians praise how the repeats sit perfectly in a mix, never masking the original tone or becoming muddy. The pedal excels at ambient textures, big stereo washes, and rhythmic echoes, but it also serves straight-ahead slapback or vintage DM-2-style settings with conviction.

Limitations and Critique

No pedal is perfect. For all its memory, instant footswitch access is limited to four presets, frustrating for heavy live users who crave fast recall. Some users wish for a tone knob to further shape the repeated sound, and splitting control/expression and preset/jump functions would improve flexibility. The pedal only sums input to mono, not true stereo-in, which may affect synth or studio users seeking stereo delays post-modulation.

Some players note a lack of percussive, sharply filtered delays; the DM-101 leans towards full, warm tones rather than ultra-bright slicing repeats, which could steer dotted-eighth rock riffers to other options. While noise is present (like in any bucket brigade device), it stays well below distraction level; the unit is generally quieter than most vintage analog delays.

Conclusion

The Boss DM-101 Delay Machine is without rival if you want authentic analog delays with true stereo operation and digital-level preset control. Its sound is harmonically rich, inspiring, and highly adaptable; its build is solid enough for stage and studio. The price reflects its ambition, but for those who will use its deep feature set, it easily justifies the investment. This is not only a love letter to the analog past but a forward-thinking tool ready for any modern pedalboard.
