Blackstar TV-10 B EL34

Overview: Blackstar TV-10 B EL34 Technical Analysis

The Blackstar TV-10 B EL34 is a single-channel, 10-watt tube combo amplifier launched in February 2026. Tapping into EL34 power tube character in a compact format, this amp targets guitarists looking for all-tube sound, plug-and-play operation, and practical recording or home use features. With core controls, physical ruggedness, and streamlined extras, it aims for straightforward utility without feature bloat.

Amplification: EL34 Character at Manageable Volumes

The power section employs a single EL34 tube, a mainstay for British-style amplifiers noted for strong midrange, defined highs, and dynamic response. Combined with an ECC83 (known in the US as a 12AX7) in the preamp, the setup is classic and simple. At 10 watts, the amp produces authentic tube drive without requiring high volume levels, making it practical for smaller gigs, rehearsals, or home studios. This wattage is ideal for users wanting power tube saturation without overpowering their environment.

• Power rating: 10 watts (tube, via EL34)
• Preamp section: 1 x ECC83 (12AX7 equivalent)
• Power amp section: 1 x EL34

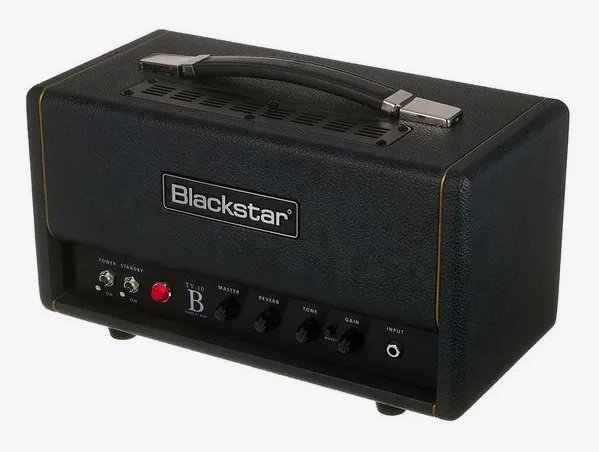

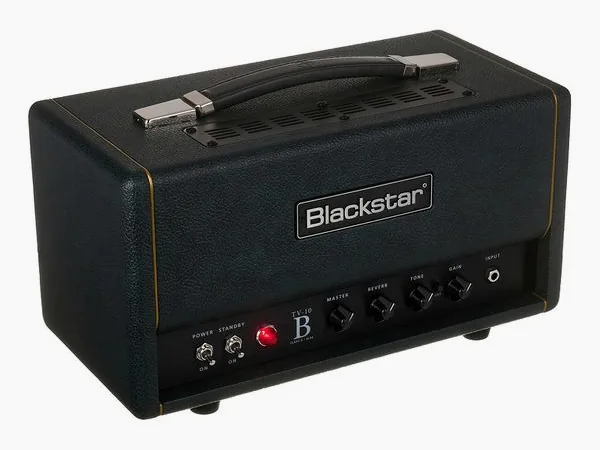

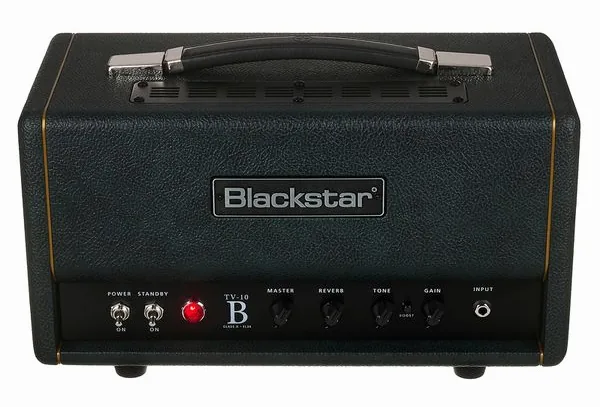

Control Layout and User Interface

Blackstar outfits the TV-10 B EL34 with a minimal, functional control set. Four primary knobs cover Gain, Tone, Reverb, and Master volume. This layout streamlines operation, favoring rapid adjustment over deep tweaking. The dedicated Drive switch enables extra saturation or crunch directly at the amp, so players can move from clean to driven tones without external pedals.

A series effects loop is included, with a dedicated level switch. This feature is valuable for integrating time-based or modulation effects post-preamp, preserving clarity and dynamics. It's notable for a compact amp to provide both send/return jacks and adjustable loop level, enhancing pedalboard compatibility.

• Controls: Gain, Tone, Reverb, Master
• Switches: Drive, Effects Loop Level

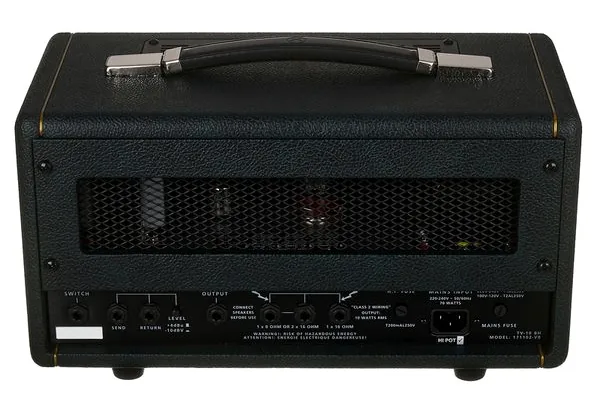

Connectivity and Recording Features

The amp provides a main instrument input, three speaker outputs (all 6.3 mm jacks), and a footswitch connector (FS-4S footswitch included). The triple speaker output is especially useful for users experimenting with different cabinets or swapping setups.

For silent practice or direct recording, the TV-10 B EL34 offers an emulated output that doubles as a headphone out. This output lets players capture cabinet simulation straight from the amp for home recording or monitor quietly without miking a speaker, an important feature for home or studio applications.

• Instrument input
• Speaker outputs: 3 x 6.3 mm (1/4 inch) jack
• Emulated/headphone output
• Effects loop (series)
• Footswitch connector (FS-4S included)

Physical Build and Mobility

The amplifier comes in an olive finish and weighs 9 kg (just under 20 lbs), housed in a chassis measuring 404 x 230 x 203 mm (approximately 16 x 9 x 8 inches). This size strikes a balance between portability and the dimensional needs of a tube amplifier, making it a carry-friendly choice for practice, teaching studios, or quick load-ins. The straightforward construction and weight support repeated transport for rehearsals and smaller performance spaces.

• Dimensions: 404 x 230 x 203 mm
• Weight: 9 kg
• Color: Olive

Included Accessories

The TV-10 B EL34 includes the Blackstar FS-4S footswitch. This unit lets players toggle drive and manage effects functions hands-free, a convenience at no added cost. For performance or quick tone shifts, having the dedicated switch bundled is practical and eliminates the need for aftermarket accessories.

Strengths and Usability

• All-tube design: Delivers traditional British-inspired tone and authentic response, driven by a classic EL34 in the power stage and 12AX7-type preamp.
• Compact footprint: Fit for studio, rehearsal, or modest stage settings with manageable weight and size.
• Practical output options: Emulated/headphone out makes silent practice and home demos easy, while three speaker jacks allow configuration flexibility.
• Effects loop with level: Useful for integrating pedals and outboard effects while maintaining sound quality.
• Included footswitch: Ready to use out-of-the-box for immediate drive toggling and control.

Limitations and Considerations

• Single channel: No traditional clean/dirty channel separation, relying on gain and drive controls for tonal changes.
• 10-watt limit: Suited best for home, studio, rehearsal, or small venues but may lack the headroom for louder stage environments.
• No onboard speaker mentioned: The technical data does not specify an internal speaker; external cabinet required for sound projection.

Conclusion

The Blackstar TV-10 B EL34 positions itself as a streamlined, all-tube solution for players needing British-voiced tone at accessible volumes. Its feature set is practical, no digital extras, just the essentials like an effects loop, reverb, flexible outputs, and a bundled footswitch. The compact size and moderate weight add to its appeal for transport and daily use, while the inclusion of multiple speaker outputs and an emulated line out stretch its versatility in modern setups. For those prioritizing tube sound in a straightforward package, this amp offers a focused option, tailored more for practice, studio work, and intimate venues than for high-volume stages.
