Mesa Boogie Vintage Split Back 4x12

Overview: The Mesa Boogie Vintage Split Back 4x12 Cabinet

The Mesa Boogie Vintage Split Back 4x12 enters the market with a design focused on versatility, combining a hybrid enclosure with high-grade components. At $1499, this speaker cabinet occupies the premium segment and is equipped for a range of stage and studio environments. The brand's decision to mix closed and open back sections within the same cabinet sets this model apart from other four-speaker configurations. The core technical specifications reflect both road readiness and tonal flexibility.

Speaker Configuration and Enclosure Design

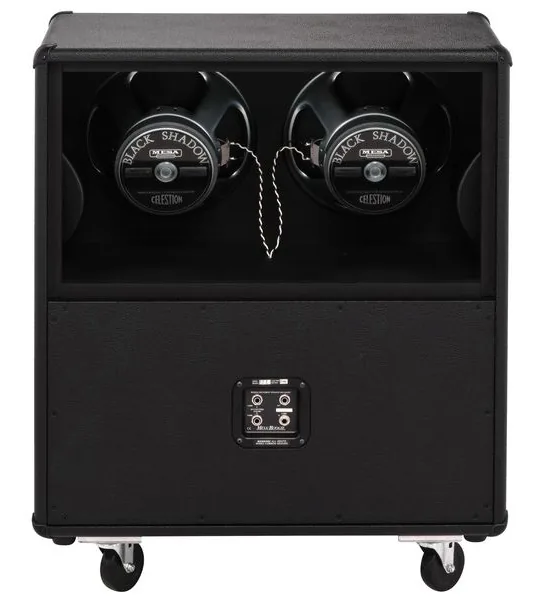

This cabinet features two Celestion Vintage 30 speakers mounted in the lower section and two Celestion 90 speakers in the upper section. The lower portion is closed at the back, while the upper portion is open, creating what Mesa calls a half-open back. This hybrid approach means the Vintage 30s benefit from a tighter, more focused low end, while the 90-watt Celestions operate in a more resonant and spacious upper chamber. Such a layout is uncommon in 4x12 enclosures and is designed to allow distinct voicing and response between the open and closed sections.

• Bottom: Two 12-inch Celestion Vintage 30s, closed back
• Top: Two 12-inch Celestion 90s, open back
• Speaker arrangement delivers tonal separation: punchy lows from the closed section, broader midrange and clarity from the open segment

Load Handling and Connectivity

The cabinet is rated for a maximum power handling of 300 watts. Operating in mono yields 8 ohms of impedance, a common standard for compatibility with a wide range of amplifiers. In stereo mode, the cabinet splits into a 4 ohm load per side, allowing for dual-amp setups or channel separation for effects routing. This option makes the design suitable for more complex rigs and stereo spread on stage or in the studio.

• Mono: 8 ohms, 300-watt handling
• Stereo: 4 ohms per side
• Supports both traditional mono use and stereo operation for expanded setups

Construction and Features

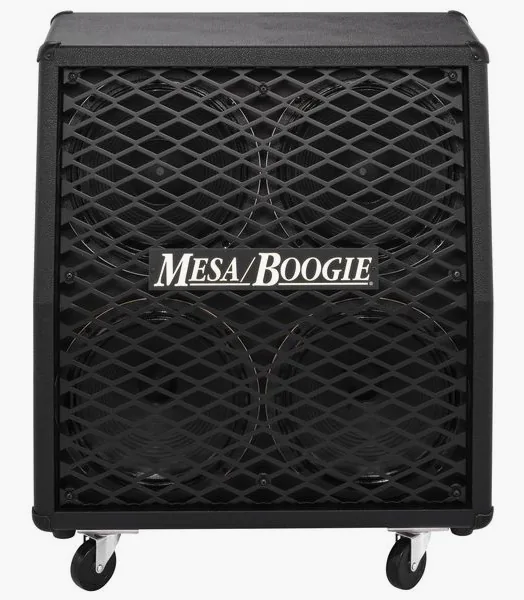

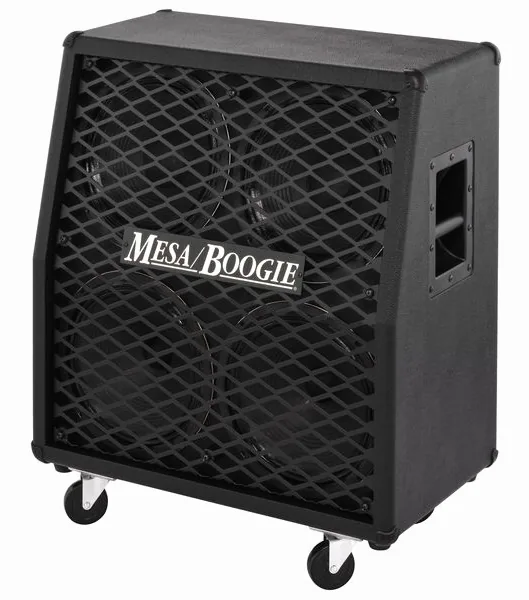

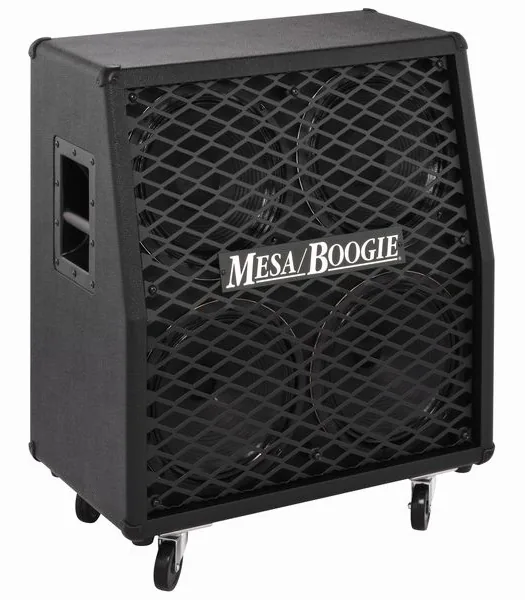

Mesa Boogie includes multiple features that address the rigors of professional transport and use. The enclosure is built with a slanted (angled) front, optimizing projection toward both performer and audience. The cabinet's reinforced metal grille protects the speakers, and the Black Bronco vinyl covering adds durability as well as a classic stage aesthetic. The removable 'track-lock caster' wheels simplify load-in and movement, allowing for swift setup and breakdown.

• Slanted (angled) design for improved sound dispersion
• Metal grille for speaker protection
• Removable casters for transport versatility
• Classic "Vintage" brand logo included
• Black Bronco vinyl finish enhances durability and visual appeal

Intended Applications

This model is equipped for high-output situations such as live performances in larger venues or studio recording where multiple tonal layers are required from a single enclosure. The 300-watt capacity is aligned with both modern and vintage amplifier heads. With the option to run either mono or true stereo, guitarists or producers can pursue advanced rig configurations, running effects or amp modeling across separate halves of the cabinet.

The combination of Celestion Vintage 30 and 90-watt models allows users to take advantage of the distinct tonal characteristics of each speaker type. Mixed-driver cabs are sometimes used to blend the mid-forward bite and focused output of the Vintage 30 with the fuller frequency range and higher headroom provided by the 90-watt Celestion. The split-back design allows these differences to manifest more clearly, increasing the range of textures available from a single cab.

Limitations and Considerations

Weighing the specification, some potential considerations emerge. The cabinet's hybrid design, while delivering tonal versatility, may not suit players seeking a singular, traditional sound, such as the deeply compressed low end of a fully sealed enclosure, or the pronounced airiness of a fully open back. With a list price of $1499, the cabinet is positioned for players valuing build quality and configuration flexibility over entry-level affordability. There are no onboard tone-shaping electronics; the tonal options rely entirely on the physical arrangement and speaker selection.

Summary

The Mesa Boogie Vintage Split Back 4x12 offers a rare take on the four-speaker guitar cabinet. Its half-open enclosure, combining two distinct Celestion drivers, addresses users who demand both punch and openness within a single rig. Stereo operation, road-ready hardware, and platform versatility grant it a place among professional-grade options. This model is best suited for guitarists and session players who require multiple tones from their cabinet and want physical build quality at the forefront.

The unique enclosure strategy and dual-speaker approach set the Vintage Split Back apart, making it a strong contender for those seeking flexibility without compromising on durability or power handling.
