Larry Carlton S3 AWH New Gen

Larry Carlton S3 AWH New Gen: technical review

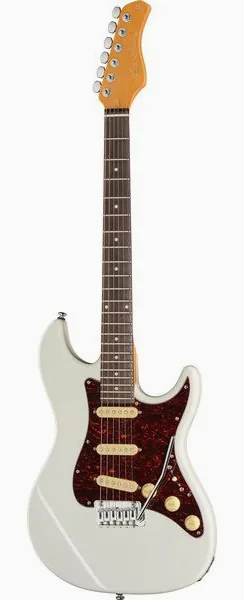

The Larry Carlton S3 AWH New Gen is an electric guitar with a mahogany body, a bolt-on maple neck, a rosewood fingerboard, and a three-pickup single-coil layout. Its listed price is 377, though no currency is specified in the supplied information. The model has been available since September 2025. There are no customer reviews available, so this assessment is based strictly on its published specifications rather than player reports or hands-on testing.

The stated finish is Antique White, while the general color listing says white. Those descriptions are compatible, but the product data does not give details about the finish process or whether the color varies between production examples. The body has no separate top, and the listed hardware is chrome. A bag and a case are not included, so buyers should account for separate storage or transport protection if needed.

Body, neck, and fingerboard

The body is made from mahogany. The specifications do not identify its weight, body contours, or finish material, so those details cannot be evaluated from the available data. The neck is maple and attaches to the body with a bolt-on joint. Its profile is described as C-shaped, a useful shape description, but not a complete account of its dimensions or feel. No neck thickness measurements are provided.

The rosewood fingerboard has dot inlays and a 241 mm, or 9.5-inch, radius. That radius is a specific design reference, but by itself it does not establish how the guitar will feel under a player's hands. The scale length is 648 mm, also given as 25.5 inches, and the nut measures 42 mm, or 1.65 inches, wide. The guitar has 22 medium-jumbo frets. The specifications do not state the fret material, fret condition, or setup measurements, so fretwork and factory action cannot be judged here.

Pickup layout and controls

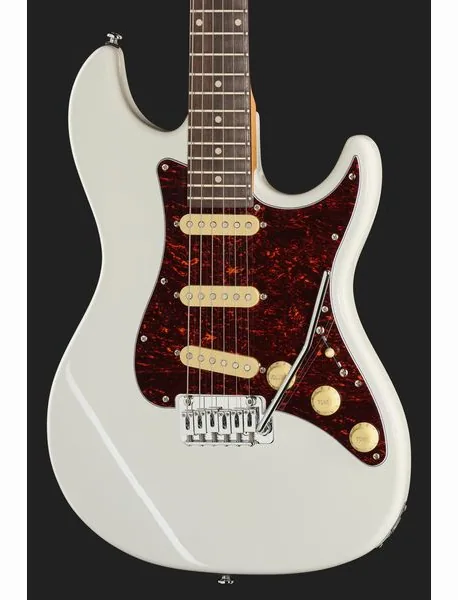

The S3 AWH New Gen uses three Sire Standard-ST single-coil pickups in an SSS configuration. This identifies the pickup type and arrangement, but the data does not include output levels, magnet type, wiring details, or measured frequency response. Those omissions matter when comparing pickups by sound. No tonal claims can be confirmed from the listed specifications alone.

Controls consist of one volume knob, one tone knob, and a five-way selector switch. This gives the player a choice of pickup selections, although the precise switching map is not included. The available information does not specify whether the tone control affects all pickup positions or whether the selector uses any special wiring. There is no mention of a coil-splitting feature, onboard preamp, or additional switching system, so none should be assumed.

Tremolo and hardware

The guitar is listed with a two-point tremolo and chrome hardware. The two-point description identifies the tremolo mounting style, but the supplied specifications do not explain its bridge materials, arm attachment, saddle design, or adjustment range. They also do not state whether the bridge is set up to float or rest against the body. Those setup choices can affect how a tremolo behaves, and the published data does not resolve them.

No details are provided about the tuning machines, nut material, string gauge, or factory tuning. These are practical omissions for anyone assessing tuning stability or planning an immediate setup. The scale length and nut width provide useful fit information, but they cannot substitute for a playing test or a complete setup specification.

What the specifications establish

• Construction: Mahogany body with a bolt-on maple neck and rosewood fingerboard.
• Fingerboard and scale: 241 mm radius, 648 mm scale, 42 mm nut, and 22 medium-jumbo frets.
• Electronics: Three Sire Standard-ST single-coil pickups, one volume control, one tone control, and a five-way switch.
• Bridge: Two-point tremolo with chrome hardware.
• Included protection: Neither a bag nor a case is included.

On paper, the Larry Carlton S3 AWH New Gen offers a clearly defined traditional single-coil configuration with a familiar scale length, a C-shaped maple neck, and a two-point tremolo. The product information is detailed enough to identify its core construction and controls, but it leaves several important questions unanswered, including weight, pickup output, hardware specifics, and factory setup. With no customer reviews available and no test results supplied, sound, comfort, tuning stability, and build quality remain unverified. Buyers can use the listed dimensions and materials to judge basic compatibility, but should seek a direct inspection or return-policy details before treating those specifications as evidence of performance.
