IK Multimedia ToneX Board

Overview: IK Multimedia ToneX Board as a Multi-FX Powerhouse

The IK Multimedia ToneX Board brings together amp modeling, high-end effects, and smart routing in a single floor unit. This $1074 device is IK Multimedia's flagship for guitarists demanding a high-performance, all-in-one solution for stage and studio. It supports up to four tone models per preset and loads user impulse responses. Its feature set covers everything from direct recording to MIDI control, with a design focused on flexibility rather than compromise.

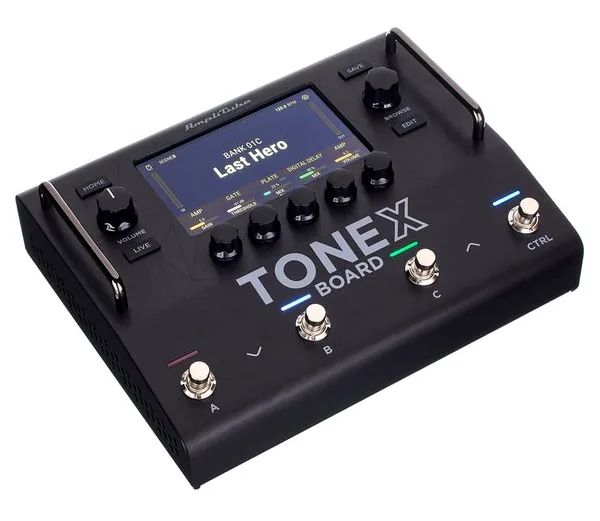

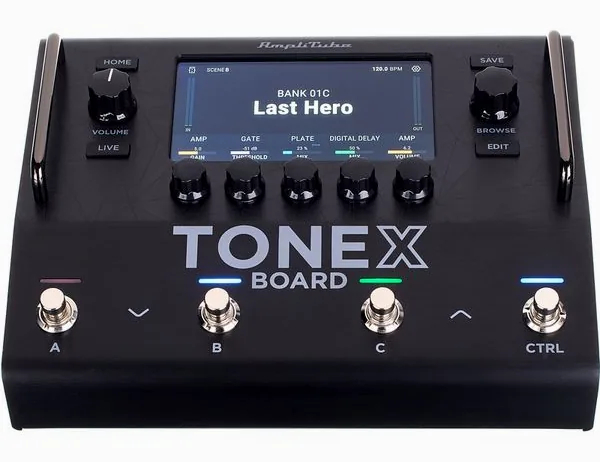

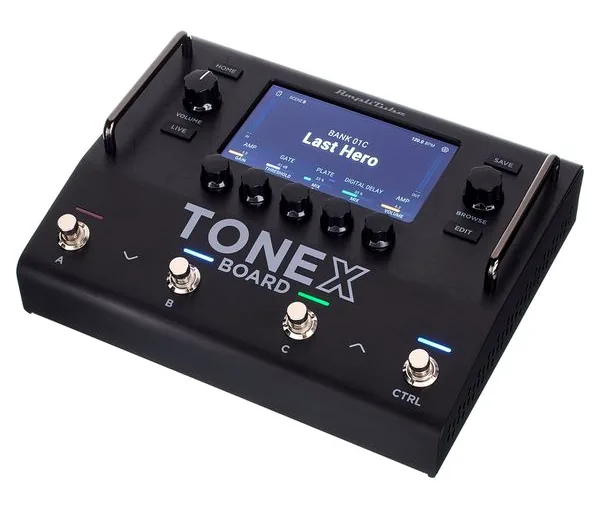

Design and Build Quality

The ToneX Board measures 235 by 184 by 72 millimeters, weighing just 1.60 kilograms. It feels immediately robust, with a sturdy chassis and stage-ready footswitches. The five-inch color touchscreen is bright and easy to read under various lighting, showing amp and pedal graphics with clarity. Some users note that the display could be more customizable, and the graphics are smaller than on units like the Fender Tone Master Pro. Still, navigation via continuous encoders and the streamlined menu is tactile and predictable. The package includes the power supply, so pedalboard integration is straightforward.

Connectivity and Control

IK Multimedia designed the ToneX Board with touring and studio flexibility in mind. It carries almost every type of connection:

• Two quarter-inch instrument inputs allow for Dual Rig use, two guitars can run separate chains side by side.
• Two quarter-inch expression control inputs let you add volume or expression pedals as needed.
• A stereo effects loop (with send and return on both channels) enables integration of external pedals or outboard processors, with the ability to run two independent mono loops.
• Dual XLR outputs and dual quarter-inch jack outputs provide balanced and unbalanced options for going direct to FOH or an interface.
• Full MIDI implementation and USB connectivity (offering four-in, two-out audio interface functionality at 24-bit 192kHz) open doors to deep control and direct recording.
• A stereo headphone output is included for silent practice.

Notably, there's currently no built-in wireless (Bluetooth or WiFi), and while USB audio capability is listed, user reports indicate that this feature may require an upcoming firmware update. Editing presets from a computer is also initially unavailable but planned.

Sound: Amp Models, Effects, and Preset Management

At its core, the ToneX Board is built around IK's ToneX amp modeling engine, compatible with all official ToneX AI tone models. It comes bundled with the ToneX 2 MAX and AmpliTube 5 MAX software suites, plus 2,000 tone models right out of the box. You can drop one amp model and one stomp box model per chain and stack up to four tone models per preset. With 70-plus built-in effects (from reverb to modulation and drive, straight from AmpliTube), plus user impulse response loading, the creative range is immense.

The amp model quality is high, with authentic dynamic response and detailed character that rivals or surpasses more expensive flagships like the Quad Cortex and Helix in many respects. User feedback consistently praises the core sound, especially for Direct Out recording and live scenarios where capturing real amp feel is crucial. If you value tone capture realism over "modeled" approximations, the ToneX Board stands out as a top choice.

Preset management is another strong point. With 1,400 preset slots, 12 set lists, and the ability to shift between Preset, Scene, and Stomp modes, the unit adapts to multiple workflows:

• Preset Mode: Full snapshot recall, including all routing, amp, and effects settings.
• Scene Mode: Switch between states within a preset, think toggling effects on/off or changing parameter values without dropping your patch.
• Stomp Mode: Old-school pedalboard controlling, switching individual effects instantly.

Footswitches are sturdy enough for regular gigging. Some may wish for more than the current configuration, but thanks to well-implemented scene management and external pedal options, live flexibility doesn't suffer.

Screen, Workflow, and User Experience

The touchscreen is an upgrade over earlier ToneX units and previous competition in this price segment. Its visuals are crisp, and scrolling is quick enough for live use, though not as immediate as a smartphone. All key editing functions are accessible via the screen and encoders, allowing on-the-fly adjustments. Early user feedback expresses a desire for greater layout customization and slightly larger iconography, but overall accessibility remains high.

Initial adjustment may be needed for those new to the ToneX workflow, especially if not pairing it with a computer. However, the balance of deep tweakability and straightforward hands-on control is well-judged, any live tweaks or fast setup changes can be done directly on the unit without diving deep into submenus.

Audio Quality and Technical Specs

With a dynamic range of 123 dB and frequency response from 5 Hz to 24 kHz, the ToneX Board reaches studio-level clarity. Whether using it as a direct recording interface, a front-end for amps, or for silent practice, there's no perceptible noise and the audio conversion preserves the full spectrum and punch of your playing. The headphone output maintains fidelity and the Line Out and XLR outputs deliver a consistent, noise-free signal for live or studio contexts. MIDI implementation is robust, useful for synced changes and automation in complex rigs.

Verdict: Ready for Stage and Studio

The IK Multimedia ToneX Board is a comprehensive all-in-one solution for demanding players. Its amp modeling engine, effects, flexible routing, and integration with flagship software plug it in at the top of the modern multi-effects market. While some early limitations in wireless capability and computer-based editing remain, its sound quality and build justify the price. For players looking to consolidate their rigs without compromise, the ToneX Board represents a new benchmark among floor-based amp modelers and effect processors.
