Ibanez AZ22S2-BK

Ibanez AZ22S2-BK: specifications and scope

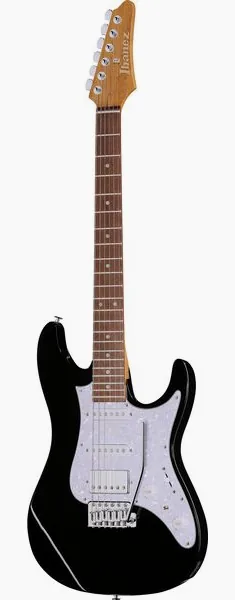

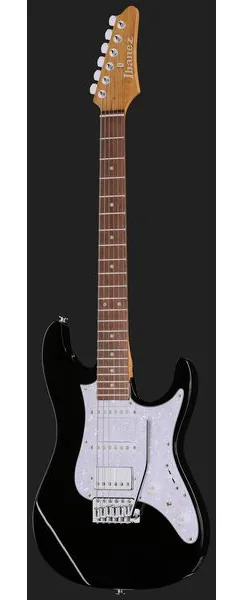

The Ibanez AZ22S2-BK is a black, solid-body electric guitar listed at 429. Its specifications describe an alder body, a bolt-on roasted maple neck, a jatoba fingerboard, and an HSS pickup layout: one humbucker at the bridge and two single-coil pickups in the middle and neck positions. It has a 648 mm (25.5-inch) scale, 22 jumbo frets, and an Ibanez T106 tremolo.

This assessment is based only on the supplied product information. No customer reviews or hands-on measurements are available, so details such as tuning stability, pickup output, fret finishing, acoustic resonance, and setup quality cannot be verified. The listed price also has no currency specified.

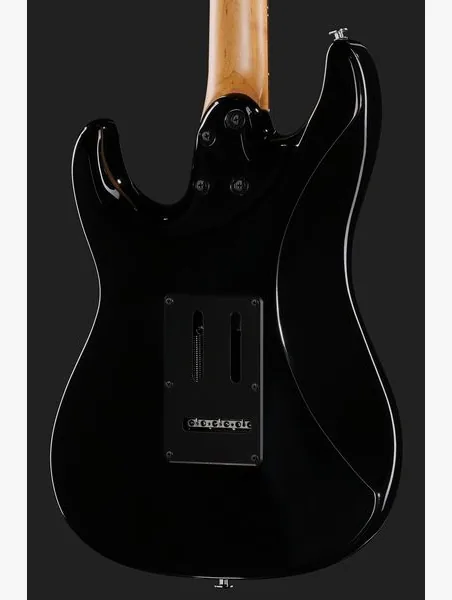

Body, neck, and fingerboard

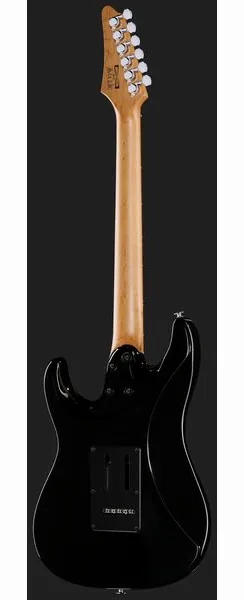

The alder body has no separate top listed. Its finish is described as high-gloss black. Ibanez specifies a roasted maple neck with a bolt-on construction and an AZ neck profile. The neck dimensions are 21 mm thick at the first fret and 23 mm at the twelfth, with a 305 mm (12-inch) fingerboard radius.

Those measurements provide a useful outline of the neck geometry, but they do not establish how it will feel to a particular player. The AZ profile name alone does not give a complete cross-sectional description, and the supplied data does not include neck width beyond the nut measurement. The nut is plastic and measures 42 mm wide.

The jatoba fingerboard has white dot inlays and 22 jumbo frets. No fret material, fret dimensions, or setup specifications are provided. The jumbo designation identifies the stated fret type, but it does not confirm fret level, crown shape, or edge finishing on an individual instrument.

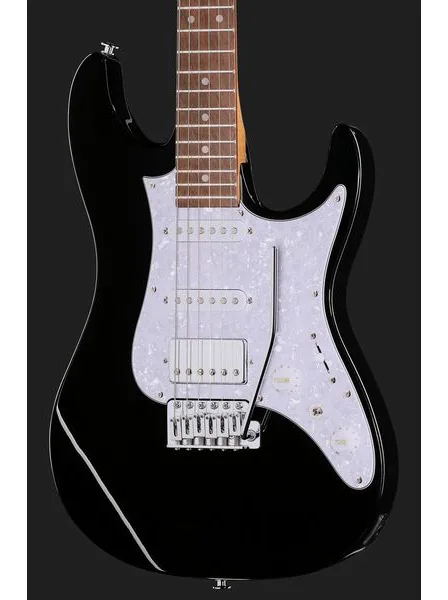

Pickup layout and controls

The bridge position uses an Ibanez Classic Custom humbucker, while the middle and neck positions each use an Ibanez Classic Custom single-coil pickup. A five-way switch selects pickup combinations, and the dyna-MIX9 system with an Alter Switch adds further switching options. Ibanez lists nine switching modes for the system name, but the supplied information does not spell out each mode or its exact pickup wiring. Players should check the control diagram or product documentation if a particular combination is essential.

Volume and tone controls are included. The specifications do not state whether the tone control is shared across all modes, identify its electrical values, or describe the Alter Switch positions in detail. They also provide no pickup resistance, magnet type, or output measurements. As a result, the pickup names and layout are useful identifiers, but they are not enough to predict the guitar's frequency response or how it will perform with a specific amplifier.

Tremolo and hardware

The guitar is fitted with an Ibanez T106 tremolo and locking machine heads. The hardware is chrome. The listed specifications do not explain the tremolo's operating range, bridge mounting details, arm inclusion, or adjustment procedure. Nor do they state the type of locking mechanism used at the tuners. These omissions matter when assessing maintenance and setup requirements, so those details should be confirmed before purchase if they affect your decision.

No gig bag or case is included according to the supplied data. Buyers planning to transport the guitar will need to account for a separate protective case or bag.

What the specifications establish

• Construction: Alder body, with a bolt-on roasted maple neck.
• Fingerboard: Jatoba, a 305 mm radius, white dot inlays, and 22 jumbo frets.
• Scale and nut: 648 mm scale length and a 42 mm plastic nut.
• Electronics: One bridge humbucker, two single-coil pickups, a five-way switch, and dyna-MIX9 switching with an Alter Switch.
• Hardware and finish: Ibanez T106 tremolo, locking machine heads, chrome hardware, and a high-gloss black finish.

The Ibanez AZ22S2-BK has a clearly defined specification set for shoppers seeking an HSS guitar with expanded switching and a tremolo. The available information supports a comparison of its materials, dimensions, pickup arrangement, and hardware. It does not support claims about sound quality, comfort, reliability, or value against competing models. Availability is listed as beginning in January 2026, and the item number is 633063.
