Friedman JEL-20 Head

Friedman JEL-20 Head: The Jake E. Lee Signature Experience

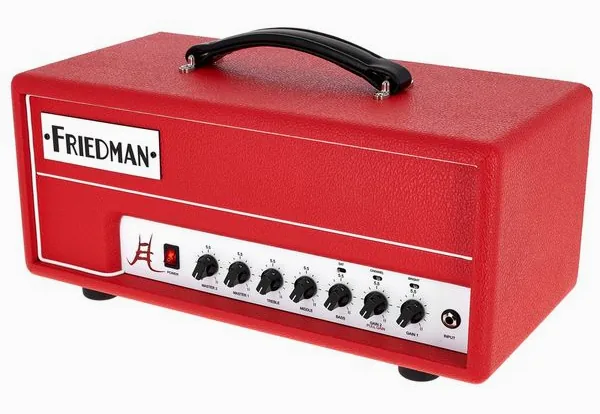

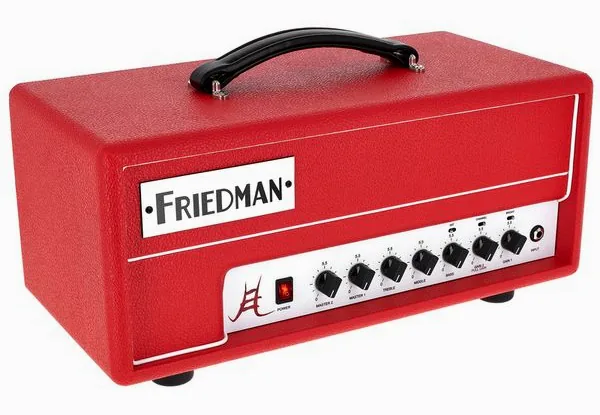

The Friedman JEL-20 Head lands as a 20-watt, two-channel tube amplifier that crystallizes the signature tones of Jake E. Lee. Introduced in August 2023 and priced at $1799, this red-finished head aims to cover classic and aggressive British amp voices, using 3 twelve-AX7 preamp tubes and 2 EL84 power amp tubes for its sound foundation. All the craftsmanship and tone shaping take place in the USA, with distinct attention given to layout, robustness, and stage practicality.

Physical Build and Practical Features

Dimensionally, the JEL-20 is compact (457 x 216 x 210 mm) and weighs in at 10 kg, making it easy to move for both smaller venues and studio setups. The bold red exterior is more than just eye-catching, it's flawlessly executed, as echoed by players who prize the amp's solid and maintenance-friendly build. Despite the "head-only" configuration, it feels immediately versatile, able to bolt atop a variety of cabinets thanks to 8-ohm and 16-ohm speaker outputs (dual 6.3 mm jacks). The inclusion of a buffered effects loop adds flexibility for pedal lovers who demand pedalboard integration without sonic compromise. The rear-panel presence control, however, is less accessible during live tweaking, a small but notable ergonomic miss in an otherwise thoughtfully designed chassis.

Dual Channel System: Plexi and JCM-Style Distinction

What sets the JEL-20 apart is its dual preamp circuit inspired by Jake's two most-referenced tones. The first channel delivers a classic late 1960s British crunch (the "Plexi" sound), offering a surprising amount of clean headroom before yielding into punchy, articulate drive. When paired with clean boosts or subtle overdrives, this channel retains clarity and touch response reminiscent of early AC/DC rhythms. The channel's brightness switch ensures open cleans or a marginally brighter crunch, adapting to player preference and pickup character.

The second channel pivots to the aggressive late 1970s and 1980s master volume sound, voicing itself clearly in the territory of the famous 800-series amplifiers. High gain is plentiful and immediate even before engaging external pedals. The amp's SAT (saturation) switch pushes the gain and low-mids further, tightening the response and introducing added compression, naturally moving the tone toward higher gain or early to mid-1990s territory (think 900-series, with more saturation and squish). Players highlight the extraordinary harmonic complexity when feeding this channel boosted signals; octave overtones and a juicy midrange emerge, perfect for hard rock and classic metal. Those seeking a single-amp solution covering blues, classic rock, 80s metal, and modern boosted lead tones will find few gaps here.

Control Layout and Sound Customization

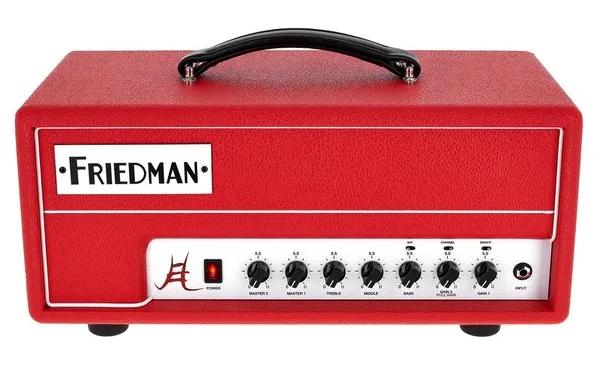

The control array supports both independent and global shaping: each channel receives its own gain and volume control (with a push-pull lo/hi gain setting on channel two), plus a shared four-band EQ (bass, mid, treble, presence). The presence circuit, albeit inconveniently located at the rear, helps to brighten or soften the power section's response as needed. SAT, ground lift, cab simulation, and level/axis switches further expand the amp's range of application from home recording to club gigs.

The JEL-20's power output (20 watts from EL84 tubes) strikes a sweet spot between enough volume for rehearsal or gigging and manageable output for recording or home playing. The master volume allows operation at lower levels without excessive loss of tone, and users report successful bedroom-level use, though some opt for a secondary attenuator in the effects loop for total control.

Direct Output and Recording Usability

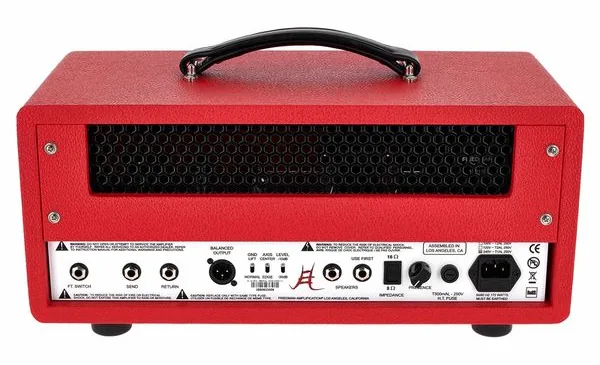

Studio and silent-stage players benefit from the onboard balanced XLR output with internal load resistor and cabinet simulation. It enables silent recording or direct-to-mixer connection, and while functional and noise-free, user consensus suggests the cab sim's tonal shaping is basic, lacking flexibility or deep user customization. Still, for demo recording or live situations needing a quick direct feed (no mic required), it's practical. For critical recording, many will turn to external cab sims or impulse response solutions.

Reliability, Ergonomics, and Value

Handwired in the USA, the amp is lauded for its sturdy construction and service friendliness. Multiple user reviews note consistent reliability and pride of ownership. Ergonomically, aside from rear placement of some controls and the missing standby switch, the amp is streamlined: the included footswitch toggles channels efficiently, with all essential I/O neatly laid out.

In value terms, the JEL-20 sits at the premium end of 20-watt heads, justified by its versatility, distinct voicing, build quality, and U.S. Manufacturing pedigree. Players who crave British-style tube tones spanning clean, crunch, and mega gain, all voiced to Jake E. Lee's exacting standards, will find the investment suitable. Those seeking reverb or extreme cab sim versatility will look elsewhere, but as a player's amp with roots in history and usability for contemporary guitarists, the Friedman JEL-20 Head delivers impressively.

• Dual-channel preamp covers breadth from classic British clean/crunch to 1980s high gain
• Buffered serial effects loop, presence, and SAT switches for tailored sound
• XLR direct output with cab simulation, limited adjustability but practical live or for demos
• Compact and robust build, designed and assembled in the USA
• Premium price, justified by versatility and signature tone
