Friedman IR-J Jake E Lee Sign. Preamp

Friedman IR-J Jake E Lee Signature Preamp Hands-On Test

The Friedman IR-J Jake E Lee Signature Preamp condenses the distinctive voicing of Friedman's JEL-100 and JEL-20 amps into a 165 x 140 mm metal stompbox. With two tube-driven channels, digital speaker simulation, MIDI, and a blend of old-school and modern connectivity, Friedman targets both live players and those looking for studio-grade direct-recording convenience. At a price of $535, it sits at the premium end for preamp pedals. This review focuses on core build, feature set, and real-world performance feedback.

Tube Architecture and Core Controls

At its heart, the IR-J Jake E Lee houses two 12AX7 tubes. These are true dual-triode tubes found in classic guitar preamps, responsible for gain structure and touch sensitivity. Both channels are fully independent and footswitchable, each with its dedicated gain, three-band EQ (bass, middle, treble), and output level controls. The familiar two-channel format lets you move between classic and high-gain tones without menu diving or scrolling.

Each channel also features its own boost, controllable from the panel for quick stage tweaks or via trimmers for channel-specific tailoring. This is not just a simple level lift either; both boost sections include individual volume and tone shaping so you can achieve precise tonal tweaks on the fly, or leave them as set-and-forget enhancements.

Flexibility for Amp and Direct Use

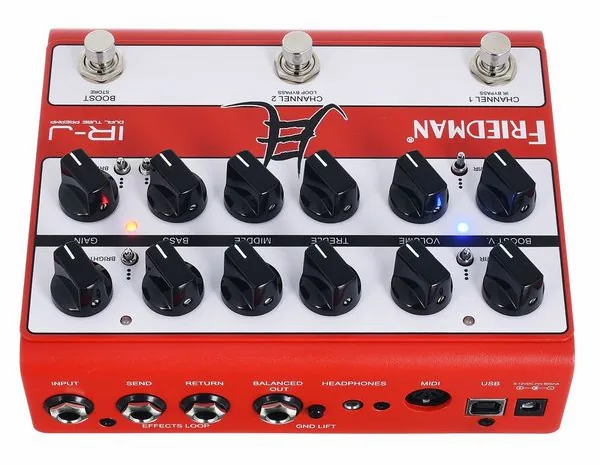

The IR-J's layout allows straightforward integration into both pedalboards and recording setups. It provides:

• Input (6.3 mm)
• Serial effect loop (send/return, 6.3 mm)
• Balanced stereo output (6.3 mm jack), suitable for direct feeds to mixers or interfaces
• Dedicated headphone output (3.5 mm)
• 5-pin MIDI input
• USB port for firmware updates and potentially deeper control
• IR speaker and power amp simulation toggle (CAB/IR switch for fast switching)

A 12V DC (center negative) power input runs the pedal, drawing 800 mA (adaptor included with purchase).

Digital Speaker Simulation and Direct-Out

What sets the IR-J apart from classic tube preamps is the integrated digital impulse response (IR) speaker simulation. With the CAB/IR switch engaged, the balanced output delivers a studio-mic'd cabinet tone that holds up well for DAWs or live direct feeds. This feature allows users to go ampless for recording or silent stage setups without sacrificing tube-driven feel and dynamic response. The direct output works seamlessly with both headphone monitoring and mixers.

Practical User Feedback and Sound Quality

User impressions highlight the IR-J's raw British-voiced tone. Musicians consistently note how close it gets to the sound of a late-seventies or early-eighties 800-series British amp, with an added touch of Friedman's modern refinement. Channel one delivers a focused crunch ideal for classic or modern blues and hard rock. Channel two moves into hot-rodded territory, thanks to its switchable high-gain mode and onboard boost. The boosts prove effective both for solo volume lifts and for kicking pedals in front of the preamp.

Integration into more complex rigs, such as the 4-cable method with a Synergy Syn2 system or plugged into a Friedman BE-50 Deluxe's power amp, reveals a couple of quirks. Real-world users note the output level is lower compared to some standalone preamp rack units, specifically at the balanced and effects send outputs. When used strictly as a preamp into a power amp, some noted increased background noise, especially at higher gains on channel two. Several attribute this to the set of factory-installed tubes, which others claim improves with a tube swap. Notably, this noise is relatively less a problem for direct-recorded tracks via IR output, but remains something to check in a live amp rig.

Pedal compatibility draws praise; the IR-J responds like a traditional amp preamp in front of overdrives, fuzz, and modulation pedals. The serial FX loop is clean and transparent for delays and reverbs.

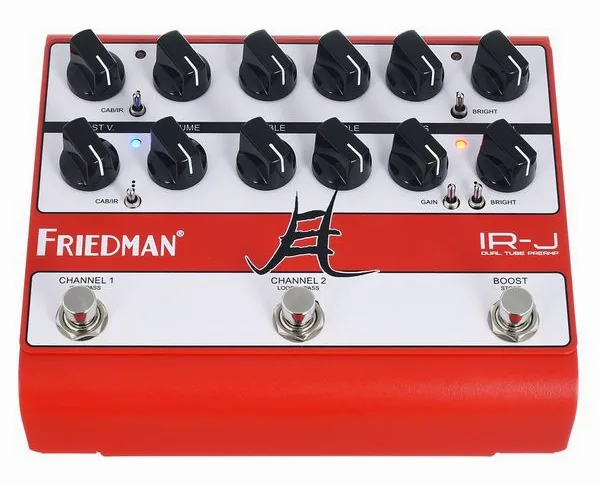

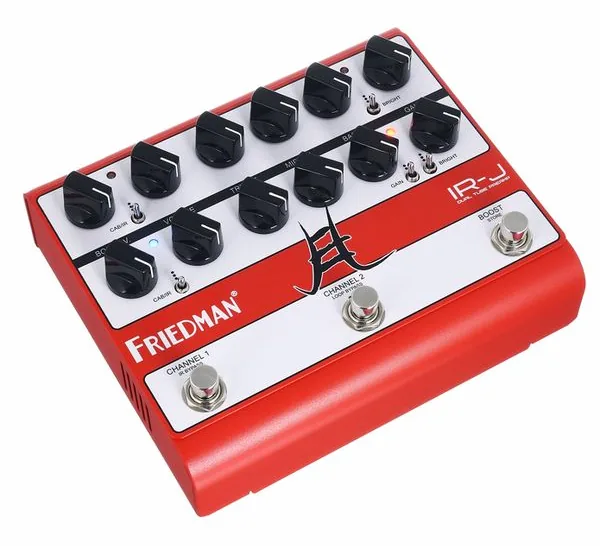

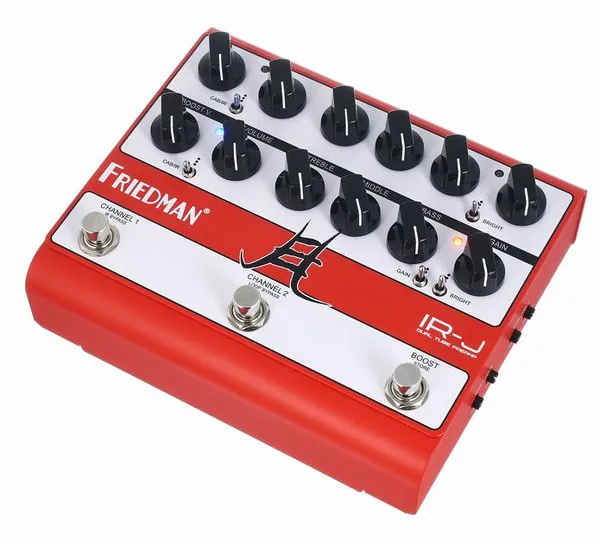

Build Quality and Footprint

The pedal measures 165 mm wide, 140 mm deep, and 58 mm tall, weighing in at 0.7 kg, compact for its dual-channel circuit and tube implementation. The chassis feels sturdy enough for both stage and studio use, with solid, easy-grip knobs and clearly labeled switchgear. Power draw is high due to the tube heaters and DSP, so making sure of the supplied 12V/800 mA adapter is vital.

Who Is It For?

The Friedman IR-J Jake E Lee Signature Preamp is aimed at players seeking the core JCM800-inspired Friedman "modded British" tone in a flexible floor form. Its combination of tube warmth, direct-out versatility, programmable boosts, MIDI support, and true impulse response simulation creates a hybrid solution for both stage and home use. However, those after a full replacement for a head and cab may find direct comparisons with larger amp rigs show it lacks a bit of air in the room and, at high gain, possibly introduces extra hiss. As a direct recording tool or for ampless monitoring, it's impressively convincing. Proper integration and tube attention are advisable for noiseless operation, especially in complex rig environments.
