Fishman Tone AFX DEQ

Fishman Tone AFX DEQ: Compact Acoustic Control Center

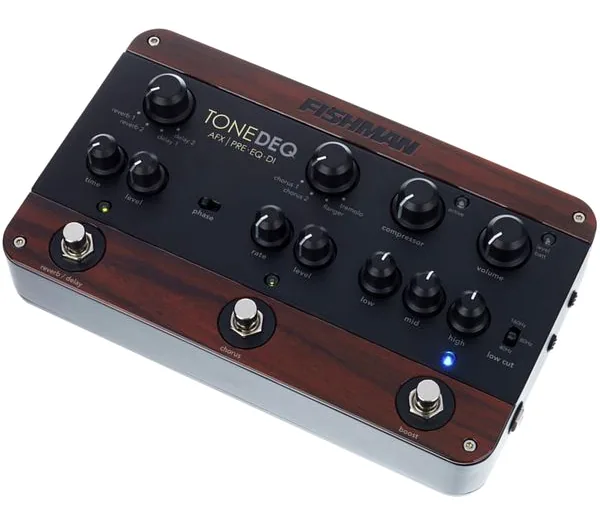

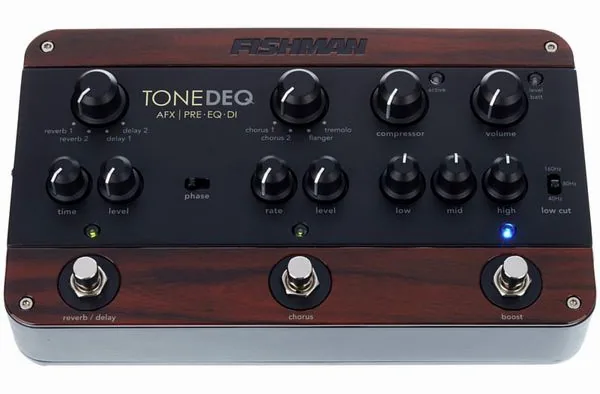

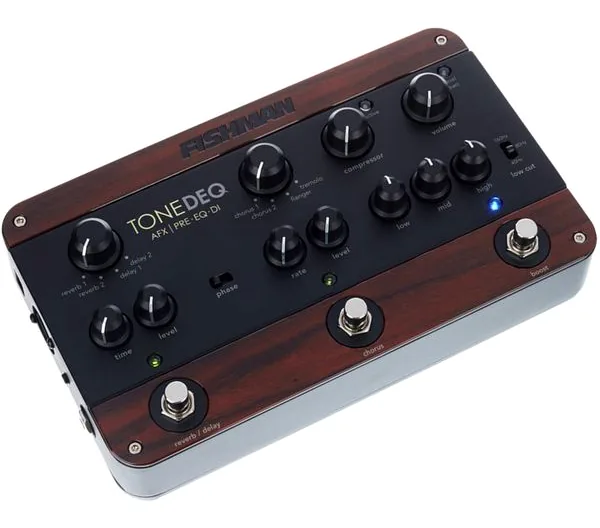

The Fishman Tone AFX DEQ floorboard aims to be the Swiss Army knife for acoustic musicians. At a price of $289, it promises a complete rig for stage and studio by combining a direct injection (DI) output, four-band equalization, a "soft-knee" compressor, versatile effect options, and a switchable boost, all in a compact, battery-powered unit. Built with acoustic players in mind, it replaces a string of pedals and stage boxes with a single point of control.

Construction and Connectivity

The floorboard format uses a notably lightweight synthetic enclosure. While the visual design is elegant, some users question long-term stage durability because of the non-metal housing. Still, the switch layout is sensibly spaced, and all core functions are easily accessible with your foot. The unit's footprint (about 5.4 x 9.5 x 2.2 inches) means it fits comfortably on even minimal pedalboards.

Connections are kept simple and practical. There is a standard DI output using balanced XLR for going straight to the mixing console, vital for live sound and recording. Parallel to this, an unbalanced quarter-inch amplifier output lets you route signal to a personal amp monitor, making the box equally useful in both personal and FOH signal chains. Running both outputs simultaneously is possible, meaning you can craft your stage sound and send a separate, clean signal to the PA system. There is no MIDI, USB, or separate footswitch connection, reinforcing its straightforward, gig-ready ethos. Battery operation with a standard 9V cell or external power supply ensures flexible deployment.

EQ, Filtering, and Compression

The heart of the Tone AFX DEQ is its four-band equalizer, giving control over bass, middle, treble, and a selectable high-pass frequency. The three fixed bands (with the middle centered at 700 Hz) allow substantial tone shaping, especially when taming piezo pickups, smoothing nasal frequencies, or enhancing body resonance. The high-pass filter can be set at 40, 80, or 160 Hz, making it powerful against onstage rumble and feedback. While a notch filter is absent (which some would want for aggressive feedback suppression), most users find that the phase inverter and high-pass options are generally enough to control problematic frequencies. The compressor is easy to set up thanks to a single "soft knee" control (one large knob), delivering transparent signal leveling. Some may wish for finer control, but its musical response suits an acoustic context where subtlety is key.

Effects Section

This pedal's main differentiator is its quality digital effects, specifically tuned for acoustic instruments. Included are two flavors each of reverb, delay, and chorus, plus flanger and tremolo. These effects are best described as clean and natural, intentionally voiced to preserve the original acoustic character rather than impose harsh coloration. While each block can't be stacked (you choose delay or reverb, for instance, not both at once), any modulation effect can run with your chosen time effect. The chorus stands out and rivals dedicated units for richness without muddiness. Delays are sufficiently tweakable for live use, with well-judged ranges for acoustic players. The reverb, while not cavernous, gives both subtle air and a more pronounced "large room" sound, both musically useful rather than overblown. Flanger and tremolo are subtler here than on electric-focused pedals, and may feel underwhelming if you're aiming for extreme modulation, but suit acoustic material and remain easy to dial in on the fly. A "bypass" switch lets you instantly remove all effects if maximum signal purity is required.

Boost Function and Ergonomics

The footswitch-activated boost adds up to about 9 dB of gain, invaluable for solos or dynamic passages. Its action is clean, reliably increasing volume without coloring the basic tone. The absence of a muting feature or controllable boost level might be missed by some, but for most users the preset range is generous and effective.

Real-World Performance and Use Cases

• Versatility: Works as a straightforward DI+EQ for acoustic guitars, violins, cellos, resonators, and other pickups. Good for both passive and powered pickups, offering flexibility for varied live setups.
• Tone Quality: The preamp and EQ circuits preserve instrument detail even with shaped settings. High transparency means your instrument's character stays intact, not masked by processing.
• Effects: Nearly all user feedback highlights the quality and musicality of the effects, particularly chorus and reverb. The main limitation is that not all effects can run simultaneously; you cannot combine delay and reverb together.
• Road Use: The lightweight build raises some concern for long-term ruggedness, and occasional defects (notably with footswitches or noise pickup) have been reported. That said, most users find it stageworthy when treated with reasonable care.
• Ease of Use: Controls are clearly labeled, with no overwhelming menus or deep editing. Changing settings on stage is direct and intuitive, good for stressful live gigs where simplicity matters.

Limitations and Missing Features

There's no integrated tuner, something available on a few pricier competitors and commonly requested in reviews. Musicians needing a notch filter or frequency-sweepable mids to address persistent feedback might find the AFX DEQ lacking for very problematic venues. The effects architecture won't satisfy those seeking multi-layered ambient soundscapes, but that was never its design brief.

Conclusion: Targeted, Effective, and Sonically Faithful

The Fishman Tone AFX DEQ floorboard is best viewed as a professional-grade acoustic preamp, precision EQ, and gig-worthy effects box, all streamlined for real-world performance needs. It does not chase extreme effects or digital flexibility, instead excelling at signal integrity, musicality, and easy, reliable operation. For most acoustic players, especially working guitarists, singer-songwriters, and small-ensemble musicians, it brings studio-worthy clarity and practical flexibility to any pedalboard or direct setup. While not perfect, and not bulletproof, it remains a standout all-in-one floorboard solution for acoustic amplification and tone shaping.
