Fender LTD Am Ultra Strat NAT: technical overview

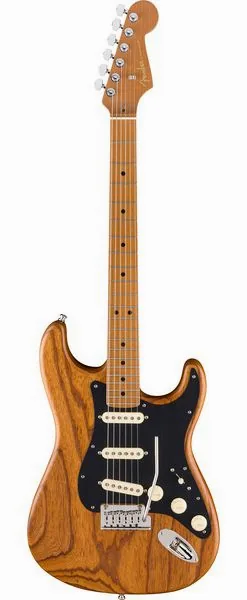

The Fender LTD Am Ultra Strat NAT is a limited-edition, U.S.-made electric guitar listed at $2,799. Its natural finish leaves the roasted ash body visible, while roasted maple is used for both the bolt-on neck and fingerboard. There is no separate top. The specification sheet identifies 22 frets, a three-single-coil pickup layout, and a two-point synchronized tremolo.

No customer reviews are available for this product. The assessment here is based only on the supplied specifications, so it cannot confirm how this particular instrument feels, sounds, or performs in use. The listed details do, however, give a clear picture of its construction, controls, and hardware.

Body, neck, and fingerboard

The body is roasted ash, and the neck and fingerboard are roasted maple. The neck attaches to the body with a bolt-on joint. The neck profile is Modern D, a distinct specification from the more commonly named C profiles. Fender lists a compound fingerboard radius of 254 to 356 mm, equivalent to 10 to 14 inches. That means the stated radius changes along the fingerboard rather than remaining constant.

The maple fingerboard has black pearloid dot inlays, each listed at 7 mm. There are 22 medium jumbo frets. The nut is Graph Tech TUSQ, with a listed width of 42.8 mm. Together, those measurements describe the playing surface, but they do not establish fret finishing quality, setup, action, or neck relief on an individual guitar. Those details need to be checked on the instrument itself.

The scale length is 648 mm, or 25.5 inches. That is the long scale length stated in the specifications. Fender lists factory strings as USA 250L nickel-plated steel, in a.009 to.042 gauge set. String gauge can be changed to suit a player's preference, though a different set may call for a setup adjustment.

Pickups and controls

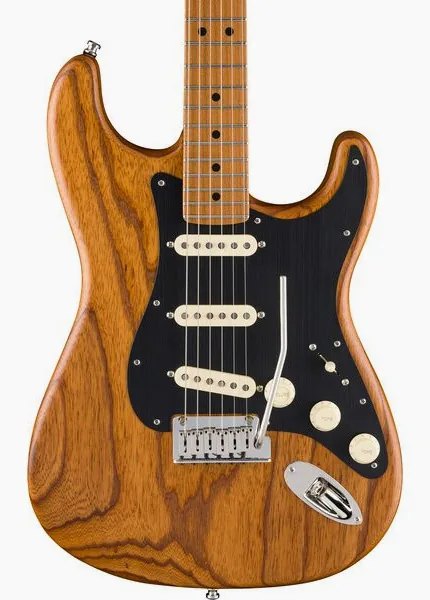

Three Custom Shop Texas Special Strat single-coil pickups provide the listed SSS configuration. The controls comprise one master volume with an S-1 switch, two tone controls, and a five-way pickup selector. The specifications do not explain the S-1 switch's switching combinations, so its precise effect should be confirmed in Fender's documentation or by testing the instrument rather than assumed.

The three-pickup layout and five-way selector offer several selectable pickup combinations, while the separate tone controls provide additional adjustment. The supplied information does not include pickup output measurements, frequency response, or a description of the available S-1 modes. Any claims about a particular sound or tonal character would go beyond the documented details.

Tremolo and hardware

The guitar has a two-point American Ultra synchronized tremolo. Its listed components include polished stainless steel block saddles and a cold-rolled steel block. These details identify the bridge construction, but do not establish tuning stability or how the tremolo will respond under a player's technique. Those outcomes depend on setup and use.

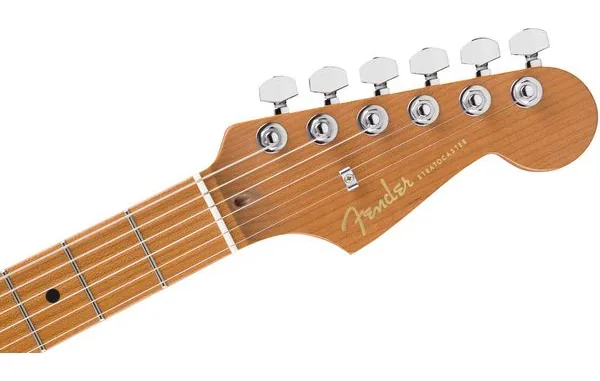

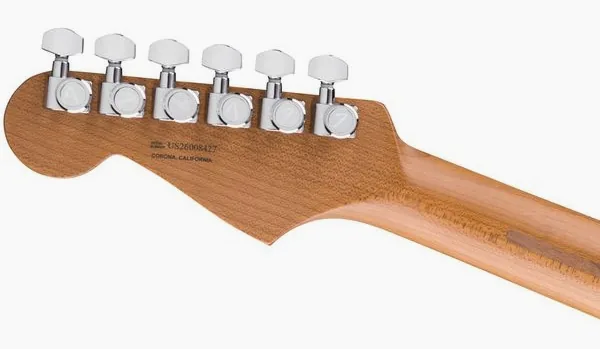

Sealed Deluxe locking tuning machines are fitted, with nickel and chrome hardware. The pickguard is a single-ply black brushed-aluminum part. The combination gives the natural body a defined contrast, though the supplied data does not specify the finish process or the weight of the guitar.

What the specifications establish

• Construction: Roasted ash body with a bolt-on roasted maple neck and roasted maple fingerboard.
• Fingerboard details: Compound 10 to 14-inch radius, 22 medium jumbo frets, black pearloid dot inlays, and a 42.8 mm Graph Tech TUSQ nut.
• Electronics: Three Custom Shop Texas Special single-coil pickups, master volume with S-1 switch, two tone controls, and a five-way selector.
• Bridge and tuners: Two-point synchronized tremolo with stainless steel block saddles and a cold-rolled steel block, plus sealed locking tuning machines.

Case and buying considerations

A Deluxe molded case is included. The listing says there is no gig bag, which is consistent with the included case rather than an additional soft bag. The instrument is marked as a limited edition and made in the USA. Its listed item number is 647958, and the sales unit is one piece.

At $2,799, buyers should compare the documented specification against their priorities and inspect the exact guitar before purchase. The product information does not state its weight, factory setup measurements, included accessories beyond the case, or the specific functions of the S-1 switch. Those are useful points to verify with the seller.

On paper, the Fender LTD Am Ultra Strat NAT is defined by roasted ash and maple construction, a compound-radius fingerboard, three named single-coil pickups, and a two-point tremolo with specified steel components. That is a substantial technical specification, but the available facts do not support a verdict on sound, comfort, or build quality in practice. With no customer feedback supplied, this review remains a specification-based assessment rather than a report of hands-on testing.
