ESP LTD M-207B DX Crimson Satin

ESP LTD M-207B DX Crimson Satin review

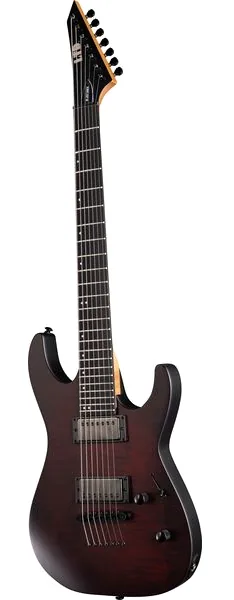

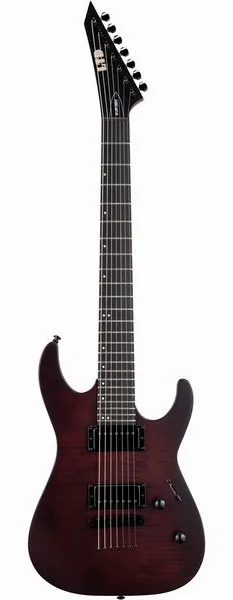

The ESP LTD M-207B DX Crimson Satin is a seven-string electric guitar with a 27-inch scale, a pair of humbuckers, and a fixed Tune-O-Matic-style bridge with strings passing through the body. Its listed price is $599. The supplied specifications describe the construction and controls, but there are no customer reviews or performance measurements to draw on. This assessment therefore focuses on what the hardware and dimensions indicate, without claiming how the guitar sounds or feels in use.

Construction and neck dimensions

The body is poplar with a flamed maple top, finished in Crimson Satin. The neck is roasted maple and attaches to the body with a bolt-on joint. A rosewood fingerboard, black hardware, and a red finish complete the stated materials and appearance. The satin finish describes the surface treatment, but the information provided does not specify its thickness or durability.

The 686 mm scale, also listed as 27 inches, is longer than a typical 25.5-inch electric guitar scale. On a seven-string instrument, that extra length is relevant to string tension, especially on the lowest string. The listed string set is.010 to.059. Those specifications establish the factory string range and scale, but they do not confirm the tuning the guitar is supplied in or the preferred setup for a particular tuning. Players planning a different string gauge or tuning may need to account for setup changes.

The neck profile is Extra Thin U, with a 400 mm fingerboard radius and a 48 mm molded nut. These are useful measurements for comparing neck shapes, though they do not establish a player's preferred fit. The guitar has 24 extra-jumbo frets. The frets extend the available fingerboard range, while their jumbo designation describes their size category, not their material or finish. No fret material, fretboard edge treatment, or factory action measurement is listed.

Pickups and controls

ESP lists an LH-150N 7Str humbucker at the neck and an LH-150B 7Str humbucker at the bridge. The pickup layout is HH, meaning two humbuckers. A three-way switch selects between the pickup positions and their combined setting. The controls comprise one volume knob and one tone knob with a push-pull function.

The specifications do not identify what the push-pull control changes. It would be speculative to describe it as a coil split or assign it another function without confirmation. Pickup output, magnet type, wiring details, and measured frequency response are also absent. The model names and layout identify the hardware, but they are not enough to predict a specific tonal character or playing result.

Bridge, tuning hardware, and practical setup

The fixed Tune-O-Matic bridge uses a string-through-body arrangement. There is no tremolo system, so players seeking a vibrato bridge should note that limitation. A fixed bridge generally avoids the moving bridge components found on tremolo-equipped guitars, but setup stability still depends on factors such as string installation, tuning hardware condition, nut fit, and instrument adjustment. The provided specifications do not include a stability test.

LTD machine heads and a molded nut are specified, along with black hardware. No locking tuners are listed, and the nut material is not identified beyond "molded." The guitar ships without a bag or case, so protection for transport is a separate purchase consideration. The item number is 652460, and the sales unit is one piece.

Who the specifications may suit

The long scale and seven-string pickup set make this model a candidate for players specifically looking for an extended-range electric guitar. Its fixed bridge, 24 frets, and conventional volume, tone, and three-way pickup controls provide a relatively direct hardware layout. The 48 mm nut and Extra Thin U neck profile are concrete points to compare against other seven-string models, particularly for players with strong preferences about neck width or shape.

At $599, the listed specification set includes a flamed maple top, roasted maple neck, rosewood fingerboard, and two model-specific humbuckers. Price alone does not establish build quality, sound, or value against competing instruments. There are no independent measurements, inspection notes, or customer reports in the supplied information, so those questions remain open.

Verdict

The ESP LTD M-207B DX Crimson Satin is defined by its 27-inch scale, seven-string configuration, fixed bridge, and Extra Thin U bolt-on neck. The specifications are detailed enough to compare its dimensions and components with other guitars, but they cannot verify playability, tuning behavior, pickup performance, or finish quality. Buyers should confirm the push-pull function and arrange a case or bag if needed before purchase.
